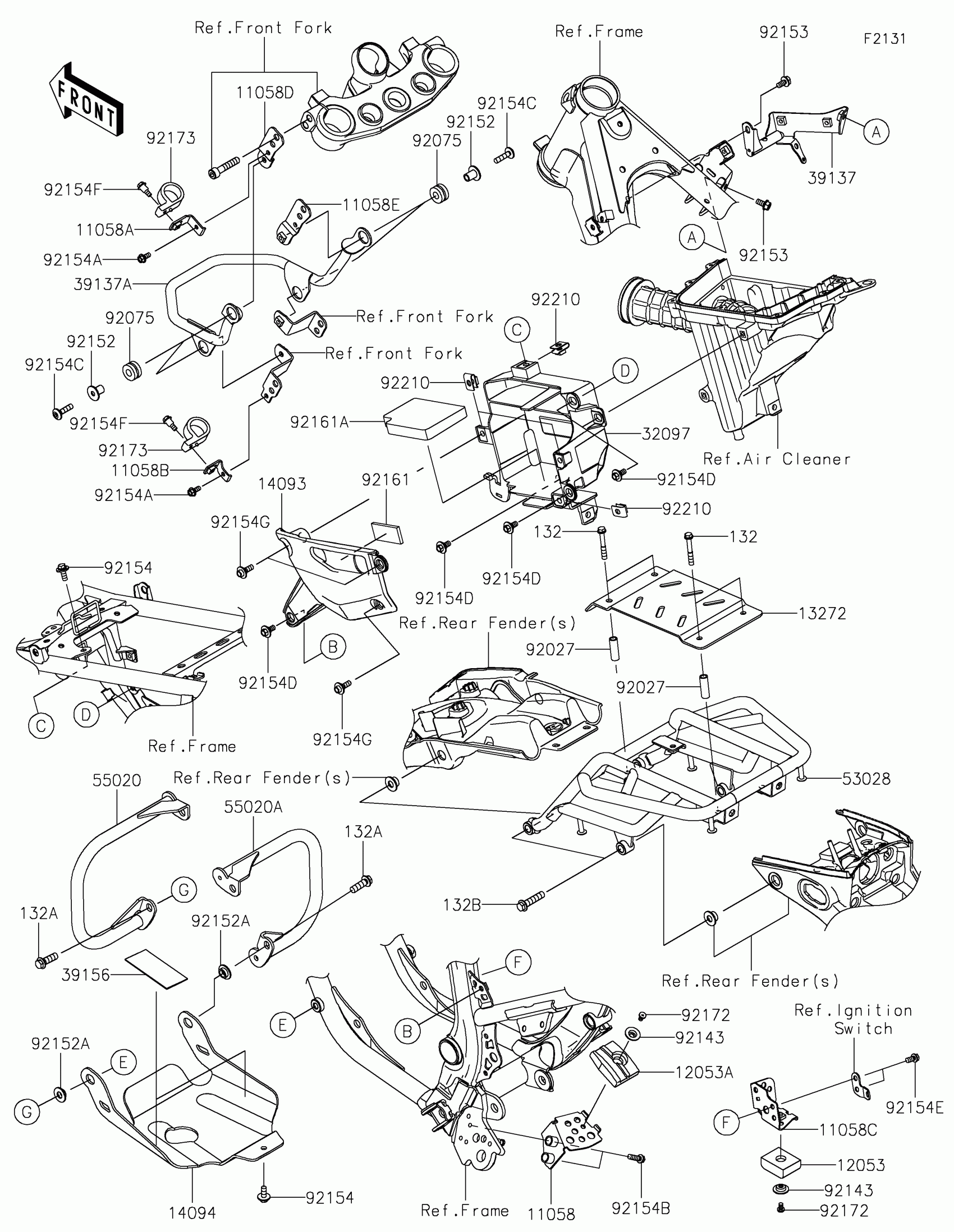

Kawasaki KLX®230 DF ABS Frame Fittings Diagram

#

Description
Price

11058

BRACKET,LWR

11058-0854

$17.37

11058A

BRACKET,UPP

11058-2292

$2.88

11058B

BRACKET,LWR

11058-2293

$2.31

11058C

BRACKET,UPP

11058-4020

$14.43

11058D

BRACKET,UPP,LH

11058-4096

$6.76

11058E

BRACKET,UPP,RH

11058-4097

$6.31

12053

GUIDE-CHAIN,UPP

12053-0270

$2.78

12053A

GUIDE-CHAIN,LWR

12053-0271

$3.02

13272

PLATE

13272-2731

$81.57

14093

COVER,BATTERY CASE

14093-1562

$33.90

14094

COVER,SKID PLATE

14094-0295

$175.56

32097

CASE-BATTERY

32097-0571

$30.74

39137

STAY-COMP,REGULATOR,F.S.BLACK

39137-0753-18R

$33.08

39137A

STAY-COMP,HEAD LAMP,F.S.BLACK

39137-0781-18R

$67.54

39156

PAD,85X35X1

39156-2976

$8.00

53028

CARRIER-ASSY

53028-0008

$321.84

55020

GUARD,LH,F.S.BLACK

55020-2562-18R

$37.48

55020A

GUARD,RH,F.S.BLACK

55020-2563-18R

$37.48

92027

COLLAR,6.8X10X30

92027-209

Unavailable

92075

DAMPER RUBBER,RR FENR

92075-209

$4.69

92143

COLLAR

92143-1676

$6.22

92152

COLLAR

92152-0604

$8.68

92152A

COLLAR

92152-3859

$2.48

92153

BOLT,FLANGED,6X12

92153-1283

$2.41

92154

BOLT,FLANGED-SMALL,6X16

92154-1183

$1.48

92154A

BOLT,FLANGED,5X12

92154-1215

Unavailable

92154B

BOLT,FLANGED,6X20

92154-2757

$2.95

92154C

BOLT,SOCKET,6X25

92154-4306

$2.34

92154D

BOLT,FLANGED,6X9

92154-7185

$1.83

92154E

BOLT,FLANGED,6X12

92154-7279

$1.20

92154F

BOLT

92154-7503

$3.90

92154G

BOLT,FLANGED,6X14

92154-7731

$11.04

92161

DAMPER,49X23X4

92161-2536

$3.91

92161A

DAMPER,BATTERY CASE

92161-2581

$25.29

92172

SCREW,5X8

92172-1540

$2.03

92173

CLAMP

92173-2876

$8.74

92210

NUT,6MM

92210-0218

$2.55

132

BOLT-FLANGED-SMALL,6X40

132BA0640

$4.45

132A

BOLT-FLANGED-SMALL,8X25

132BB0825

$4.12

132B

BOLT-FLANGED-SMALL,8X35

132BB0835

$3.39
