Description

Price

11061

GASKET,GENERATOR COVER

11061-1299

$33.80

11061A

GASKET,GENERATOR COVER CAP

11061-1300

$8.96

11061B

GASKET,CLUTCH COVER

11061-1301

$43.34

11065

CAP,GENERATOR COVER

11065-1412

$41.04

12053

GUIDE-CHAIN

12053-0272

$4.06

14014

PLATE-POSITION

14014-0588

$8.00

14026

COVER-CHAIN

14026-0146

$33.61

14031

COVER-GENERATOR

14031-0656

$120.56

14032

COVER-CLUTCH

14032-0692

$149.42

14044

HOLDER-CABLE

14044-0579

$12.69

16115

CAP-OIL FILLER

16115-1053

$12.20

52005

GAUGE,OIL LEVEL

52005-1009

$18.40

92043

PIN,6.2X8X14

92043-1741

$3.71

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$15.63

92049

SEAL-OIL

92049-0902

$23.26

92049A

SEAL-OIL,AG0353-F0

92049-1262

$6.57

92055

RING-O,19.8MM

92055-0844

Unavailable

92055A

RING-O,27.7X2.4

92055-091

$6.22

92055B

RING-O,20X2

92055-1786

$8.25

92066

PLUG,COVER

92066-0991

$14.76

92066A

PLUG,30X8

92066-0993

$19.00

92154

BOLT,FLANGED,6X30

92154-1772

$1.19

92154A

BOLT,FLANGED,6X25

92154-1928

$1.19

92154B

BOLT,FLANGED,6X18

92154-3800

$1.88

92154C

BOLT,FLANGED,6X30

92154-4061

$1.37

92154D

BOLT-FLANGED,6X35

92154-7173

$2.21

92154E

BOLT,SOCKET,6X14

92154-7476

$3.94

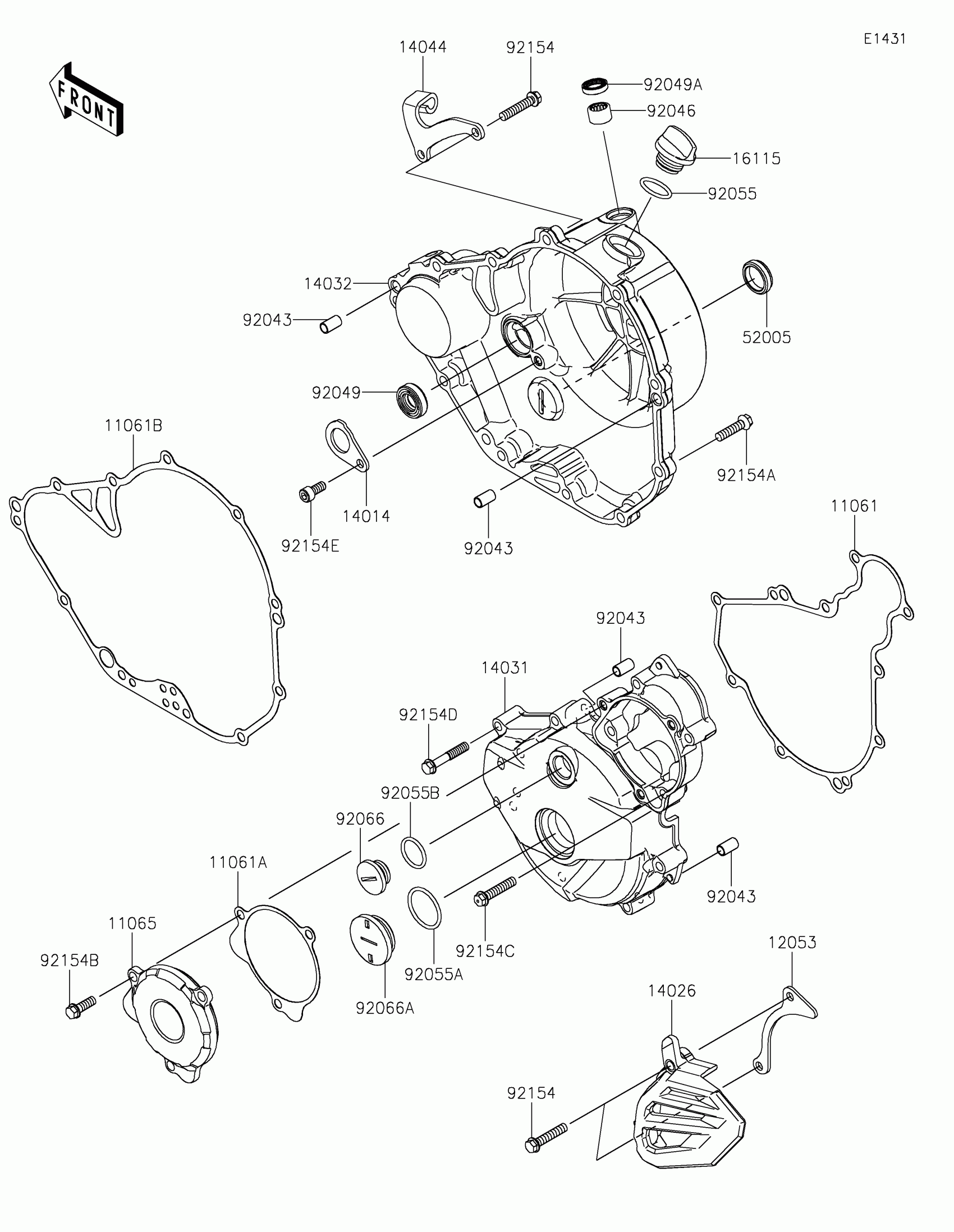

Kawasaki KLX®230 DF ABS Engine Cover(s) Diagram

GASKET,GENERATOR COVER

GASKET,GENERATOR COVER CAP

GASKET,CLUTCH COVER

CAP,GENERATOR COVER

GUIDE-CHAIN

PLATE-POSITION

COVER-CHAIN

COVER-GENERATOR

COVER-CLUTCH

HOLDER-CABLE

CAP-OIL FILLER

GAUGE,OIL LEVEL

PIN,6.2X8X14

BEARING-NEEDLE,HK1210FM

SEAL-OIL

SEAL-OIL,AG0353-F0

RING-O,19.8MM

RING-O,27.7X2.4

RING-O,20X2

PLUG,COVER

PLUG,30X8

BOLT,FLANGED,6X30

BOLT,FLANGED,6X25

BOLT,FLANGED,6X18

BOLT,FLANGED,6X30

BOLT-FLANGED,6X35

BOLT,SOCKET,6X14
