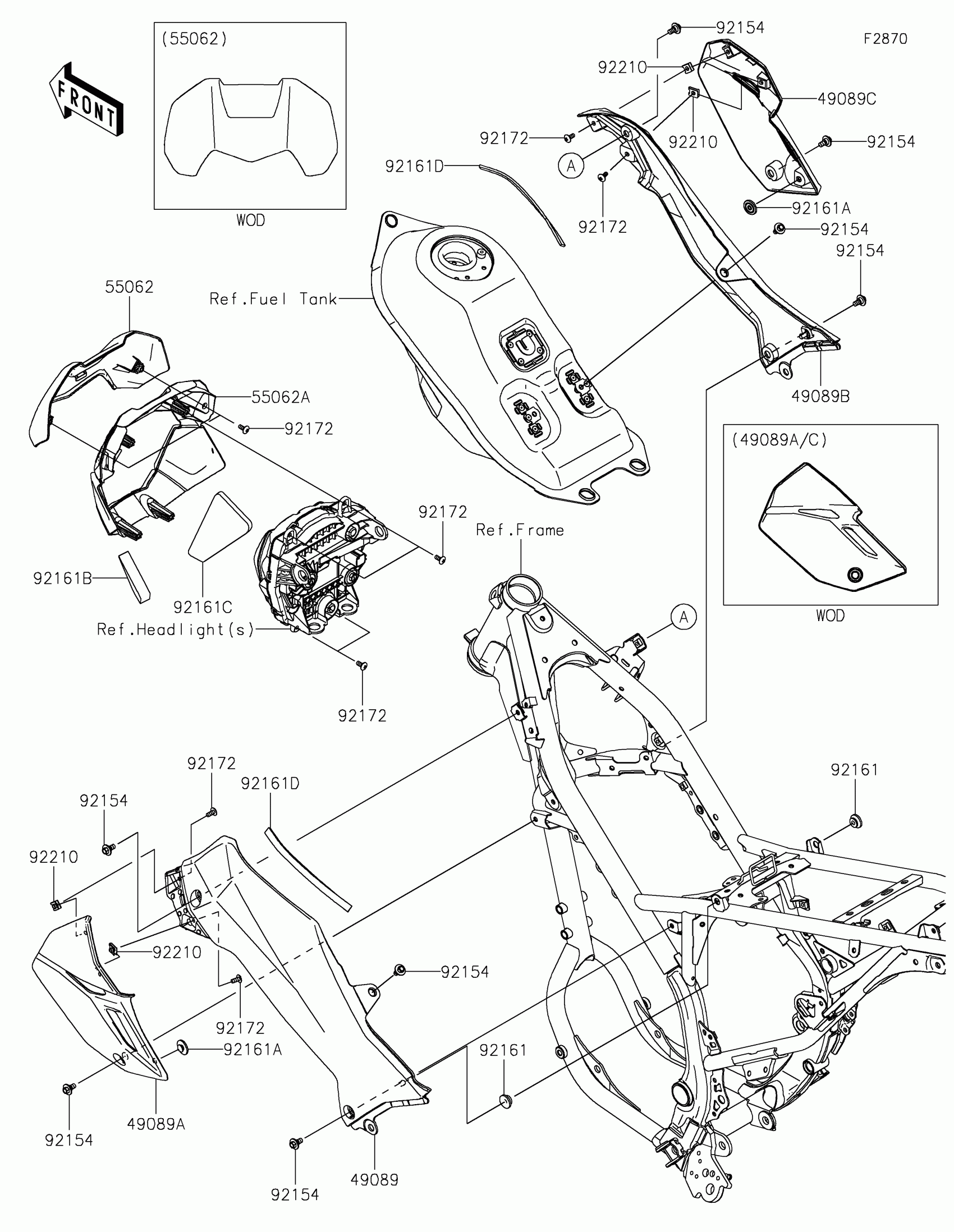

Kawasaki KLX®230 DF ABS Cowling Diagram

SHROUD-ENGINE,LH,UPP,M.C.GRAY

49089-1200-67K

$59.17

SHROUD-ENGINE,LH,LWR,M.C.GRAY

49089-1201-67K

$41.79

SHROUD-ENGINE,RH,UPP,M.C.GRAY

49089-1202-67K

$59.17

SHROUD-ENGINE,RH,LWR,M.C.GRAY

49089-1203-67K

$41.79

COVER-HEAD LAMP,UPP,M.C.GRAY

55062-0003-67K

$42.34

COVER-HEAD LAMP,LWR,M.C.GRAY

55062-0004-67K

$46.51

BOLT,FLANGED,6X9

92154-7185

$1.83

DAMPER

92161-1531

$3.02

DAMPER

92161-2547

$0.85

DAMPER,HEAD LAMP COVER,LH

92161-2735

$4.59

DAMPER,HEAD LAMP COVER,RH

92161-2736

$4.59

DAMPER,10X180X3

92161-2737

$1.97

SCREW,5X12

92172-1095

$0.63

NUT,CLIP,5MM

92210-1666

$7.73
