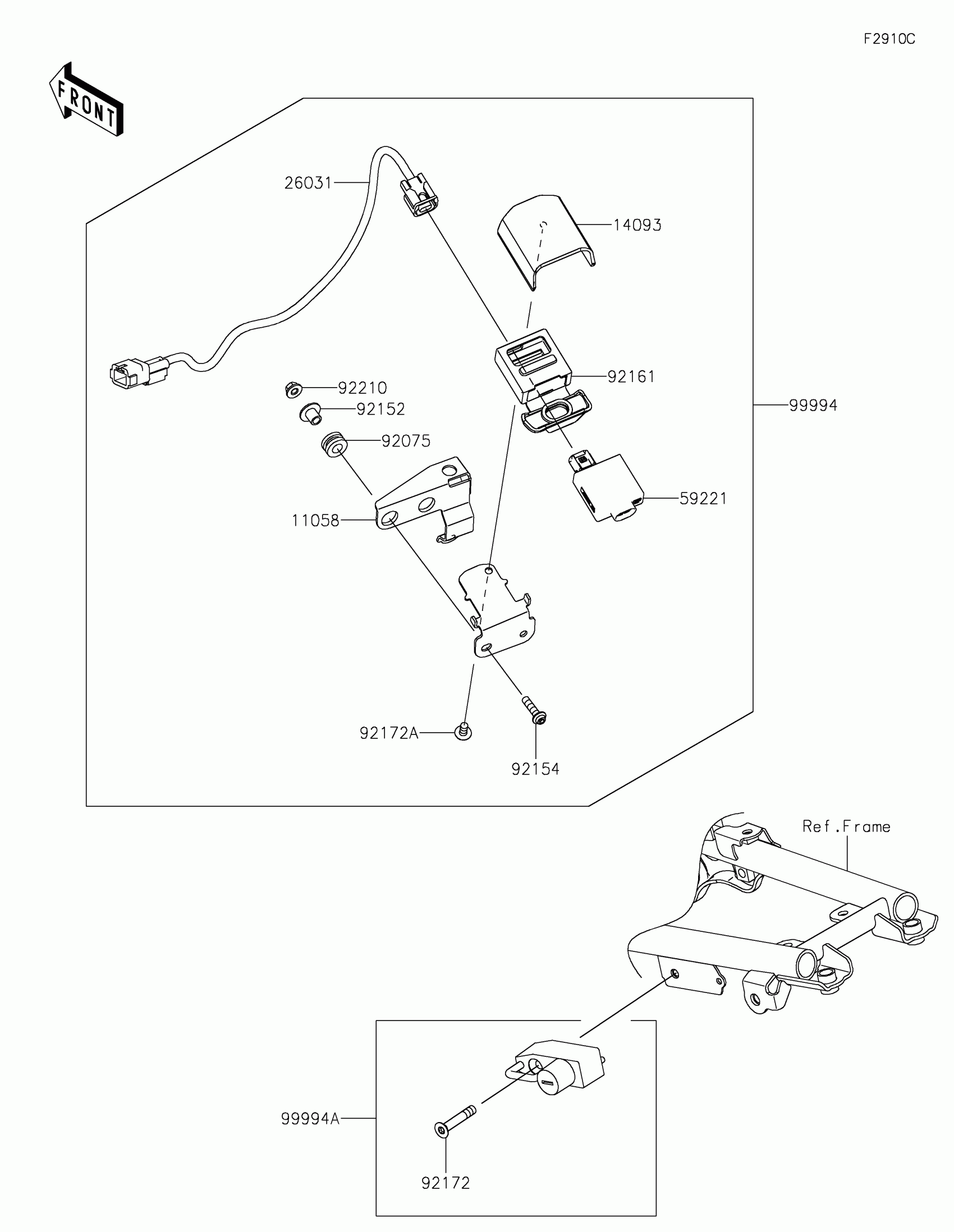

Kawasaki KLX®230 DF ABS Accessory(Helmet Lock and USB) Diagram

Description

Price

11058

BRACKET

11058-1388

$18.30

14093

COVER,USB

14093-1458

$5.46

26031

HARNESS,USB CHARGER

26031-3972

$25.49

59221

CONNECTOR-CORD,USB TYPE-C

59221-0022

$85.75

92075

DAMPER

92075-1912

$5.77

92152

COLLAR

92152-0134

$7.65

92154

BOLT,SOCKET,5X20

92154-0829

$2.67

92161

DAMPER

92161-2497

$9.93

92172

SCREW,HEXLOBE,6X35

92172-0835

$3.02

92172A

SCREW,5X10

92172-1194

$1.34

92210

NUT,FLANGED,5MM

92210-0007

$2.70

99994

USB TYPE-C

99994-2051

$63.87

99994A

HELMET LOCK

99994-2176

$114.60
