2020 Kawasaki KLX®230 Cylinder/piston Diagram

← All diagrams

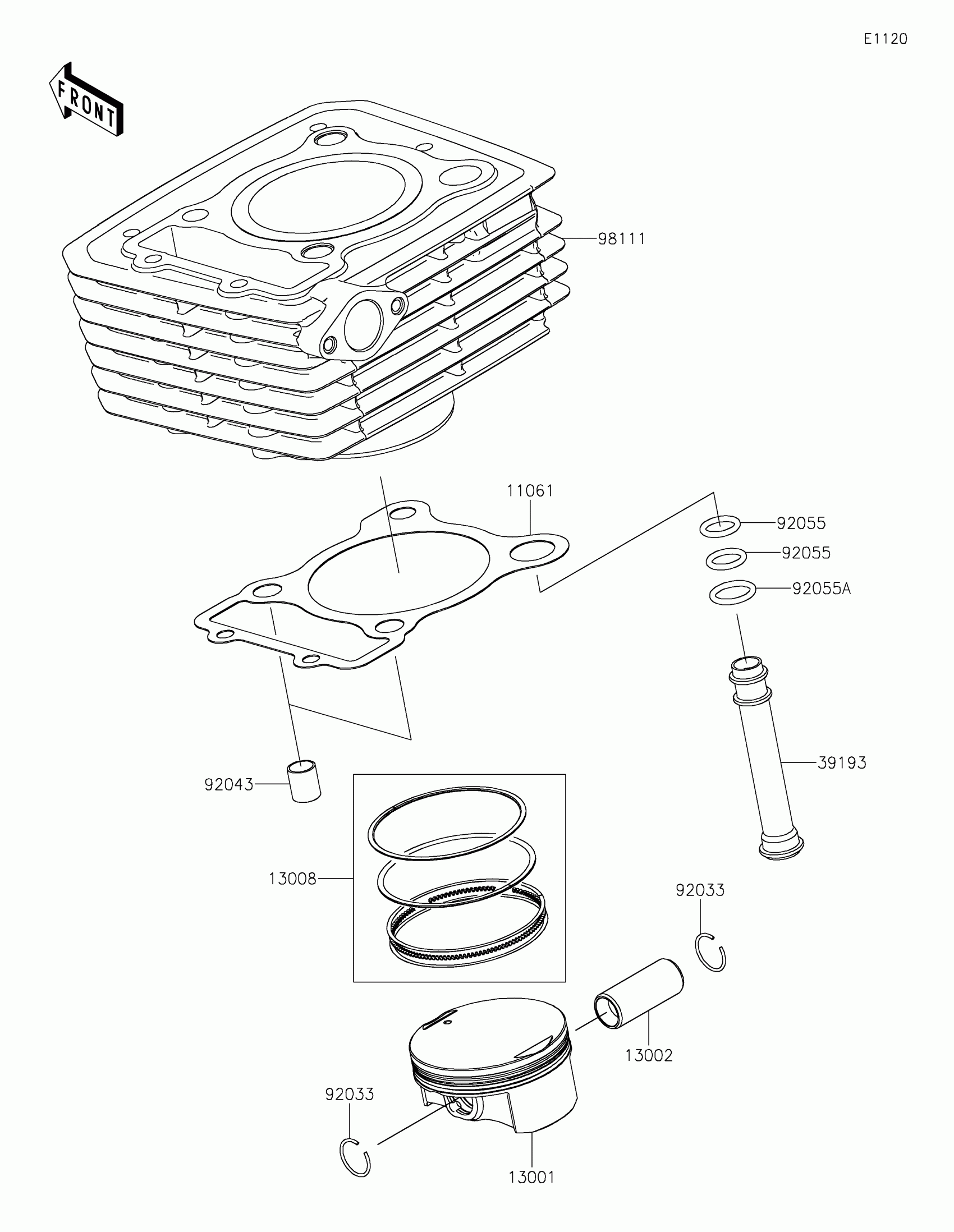

Find the part on the Cylinder/piston diagram for your 2020 Kawasaki KLX®230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki KLX®230 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,CYLINDER BASE

11061-1298

1
Out of stock

13001

PISTON-ENGINE

13001-0804

1
Out of stock

13002

PIN-PISTON

13002-0718

1
Out of stock

13008

RING-SET-PISTON

13008-0580

1
Out of stock

39193

PIPE-OIL

39193-0586

1
Out of stock

92033

RING-SNAP,PISTON PIN

92033-0732

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1
Out of stock

92055

RING-O,12.3X2.4

92055-0918

1
Out of stock

92055A

RING-O,14.8X2.4

92055-0919

1
Out of stock

98111

CYLINDER-COMP-ENGINE

98111-0046

1
Out of stock
