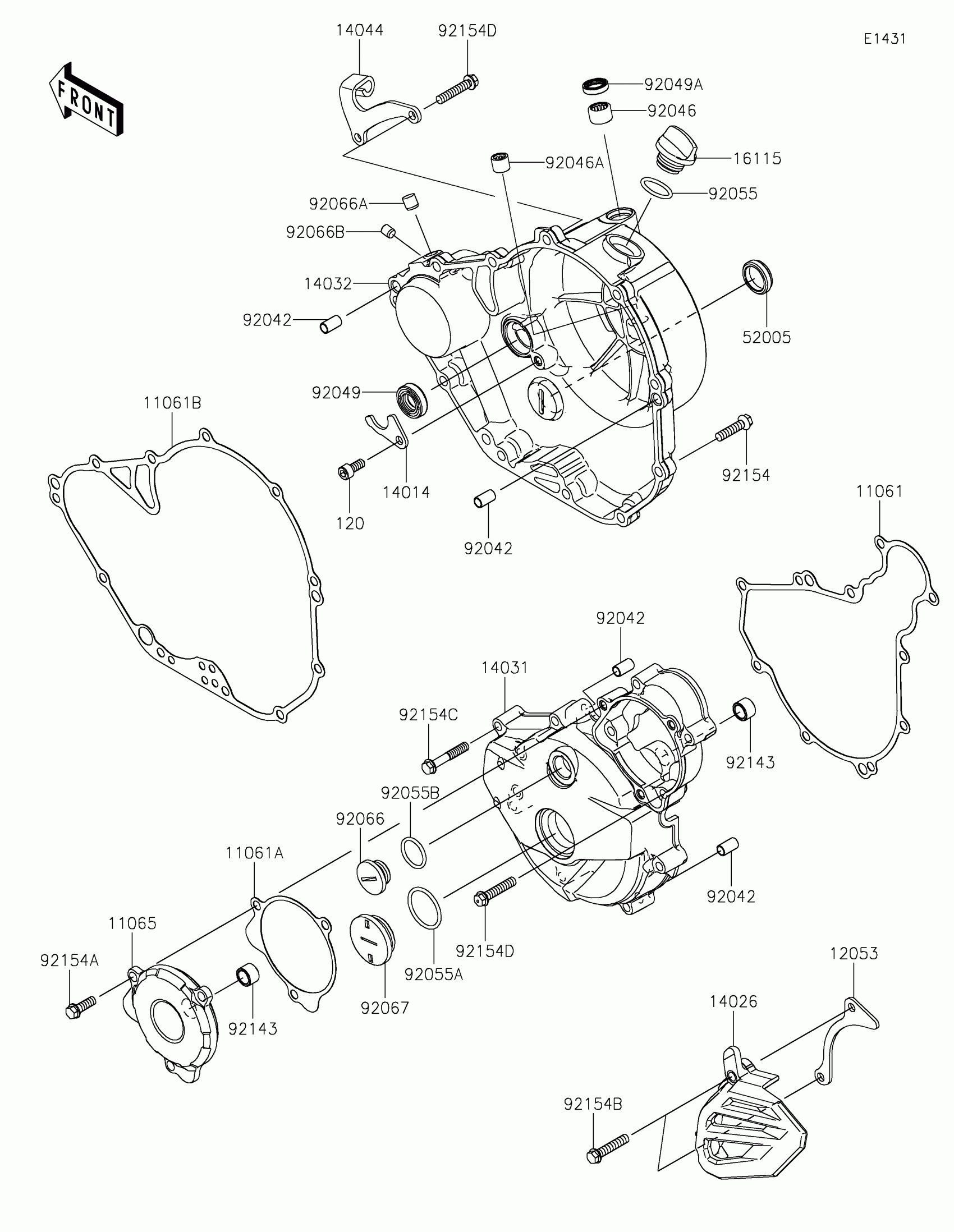

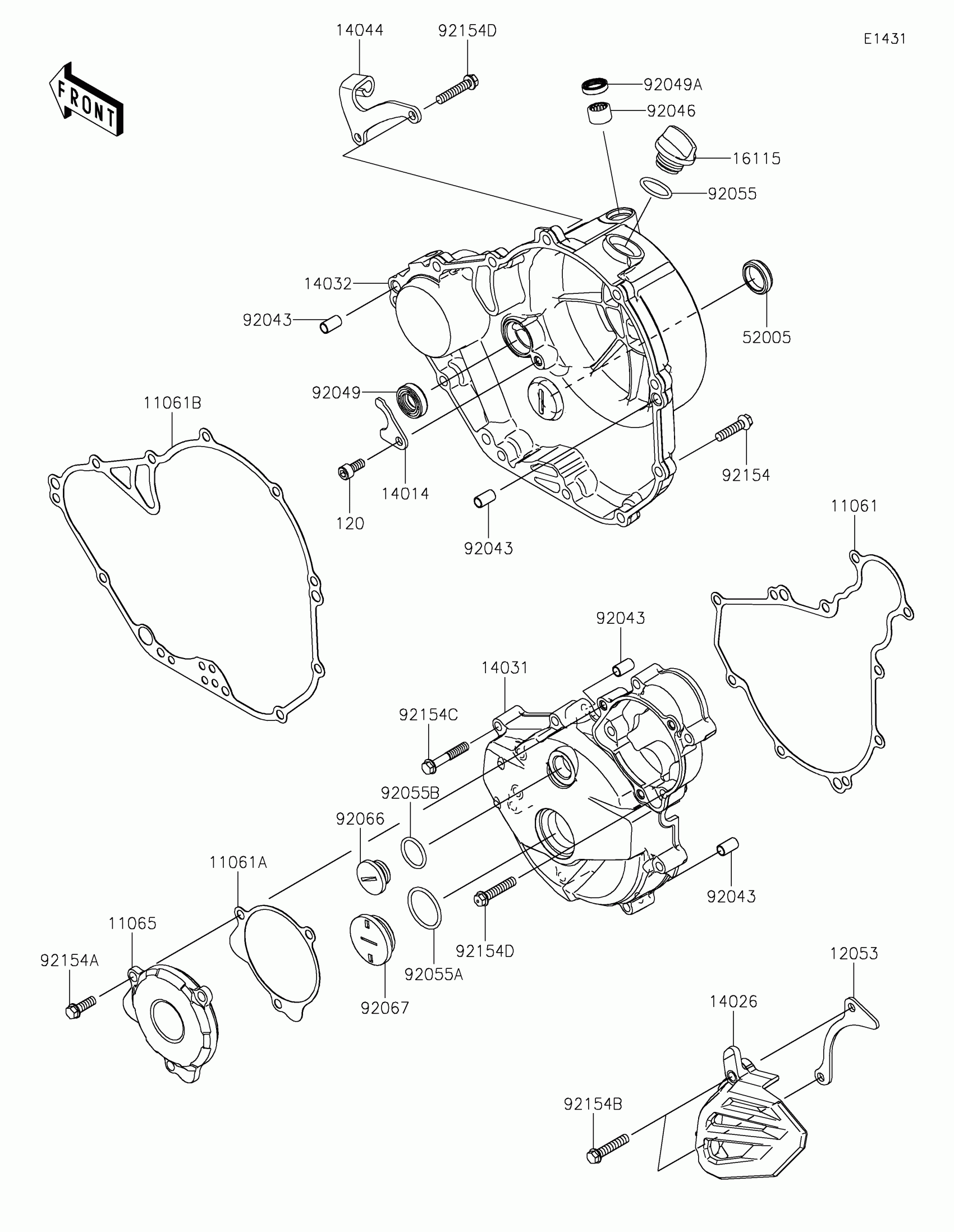

Kawasaki KLX®230 Engine Cover(s) Diagram

#

Description
Price

11061

GASKET,GENERATOR COVER

11061-1299

$30.28

11061A

GASKET,GENERATOR COVER CAP

11061-1300

$6.83

11061B

GASKET,CLUTCH COVER

11061-1301

$38.49

11065

CAP,GENERATOR COVER

11065-1300

$41.83

120

BOLT-SOCKET,6X14

120CA0614

$3.68

12053

GUIDE-CHAIN

12053-0272

$3.64

14014

PLATE-POSITION

14014-0567

$8.12

14026

COVER-CHAIN

14026-0146

$34.25

14031

COVER-GENERATOR

14031-0633

$123.08

14032

COVER-CLUTCH

14032-0657

$159.42

14044

HOLDER-CABLE

14044-0573

$6.85

16115

CAP-OIL FILLER

16115-1053

$9.28

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$11.87

92046A

BEARING-NEEDLE

92046-0042

$14.46

92049

SEAL-OIL

92049-1191

$22.97

92049A

SEAL-OIL,AG0353-F0

92049-1262

$4.93

92055

RING-O,19.8MM

92055-0844

Unavailable

92055A

RING-O,27.7X2.4

92055-091

$4.67

92055B

RING-O,20X2

92055-1146

$6.55

92066

PLUG,COVER

92066-0011

$12.09

92066A

PLUG

92066-0796

$1.85

92066B

PLUG,OIL LINE,7.2X8

92066-1012

$4.65

92067

PLUG,30X8

92067-024

$8.59

92143

COLLAR

92143-1263

$3.71

92154

BOLT,FLANGED,6X25

92154-0520

$2.31

92154A

BOLT,FLANGED,6X18

92154-1775

$0.60

92154B

BOLT,FLANGED,6X30

92154-1830

$1.10

92154C

BOLT,FLANGED,6X35

92154-2100

$1.68

92154D

BOLT,FLANGED,6X30

92154-4061

$1.22
