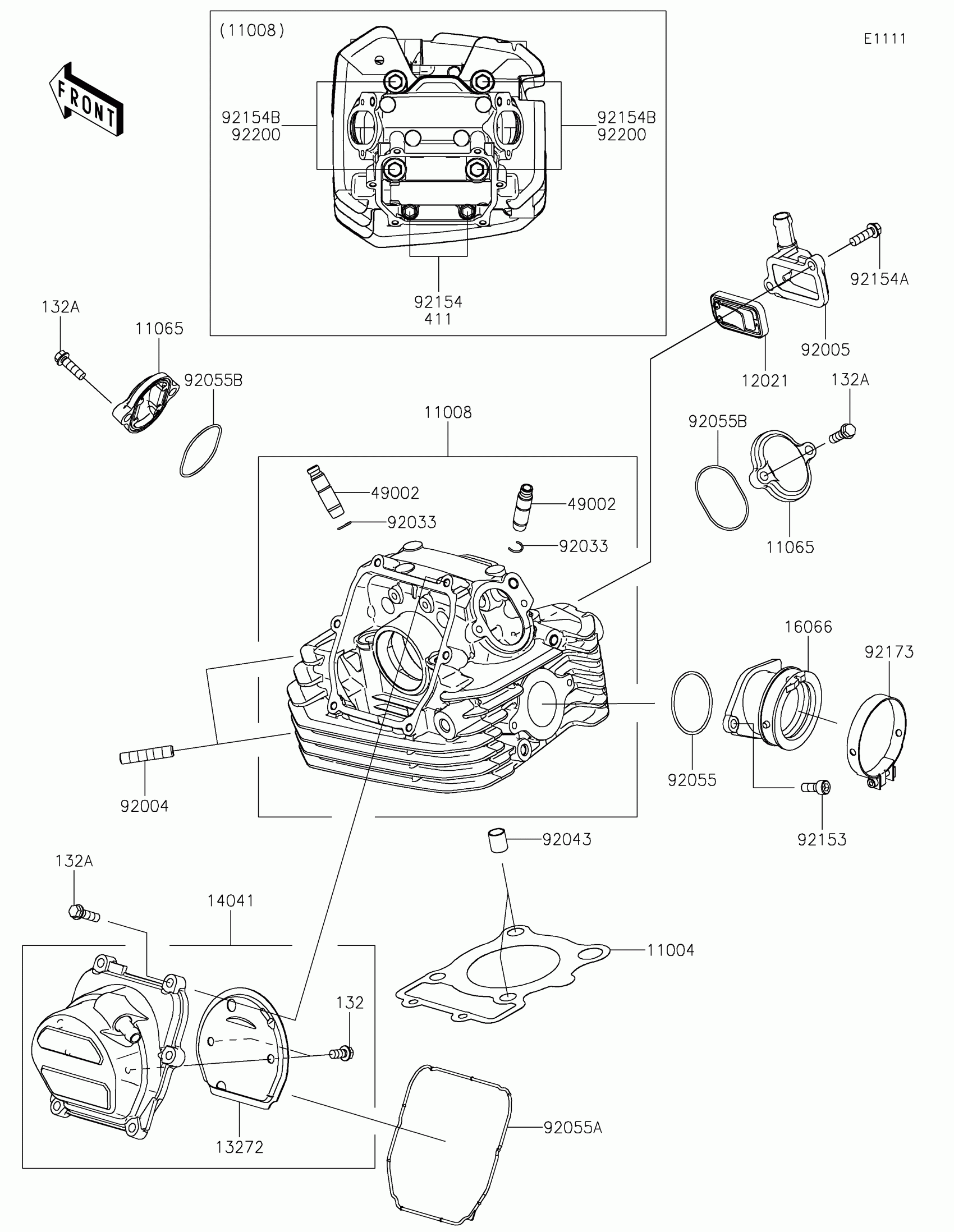

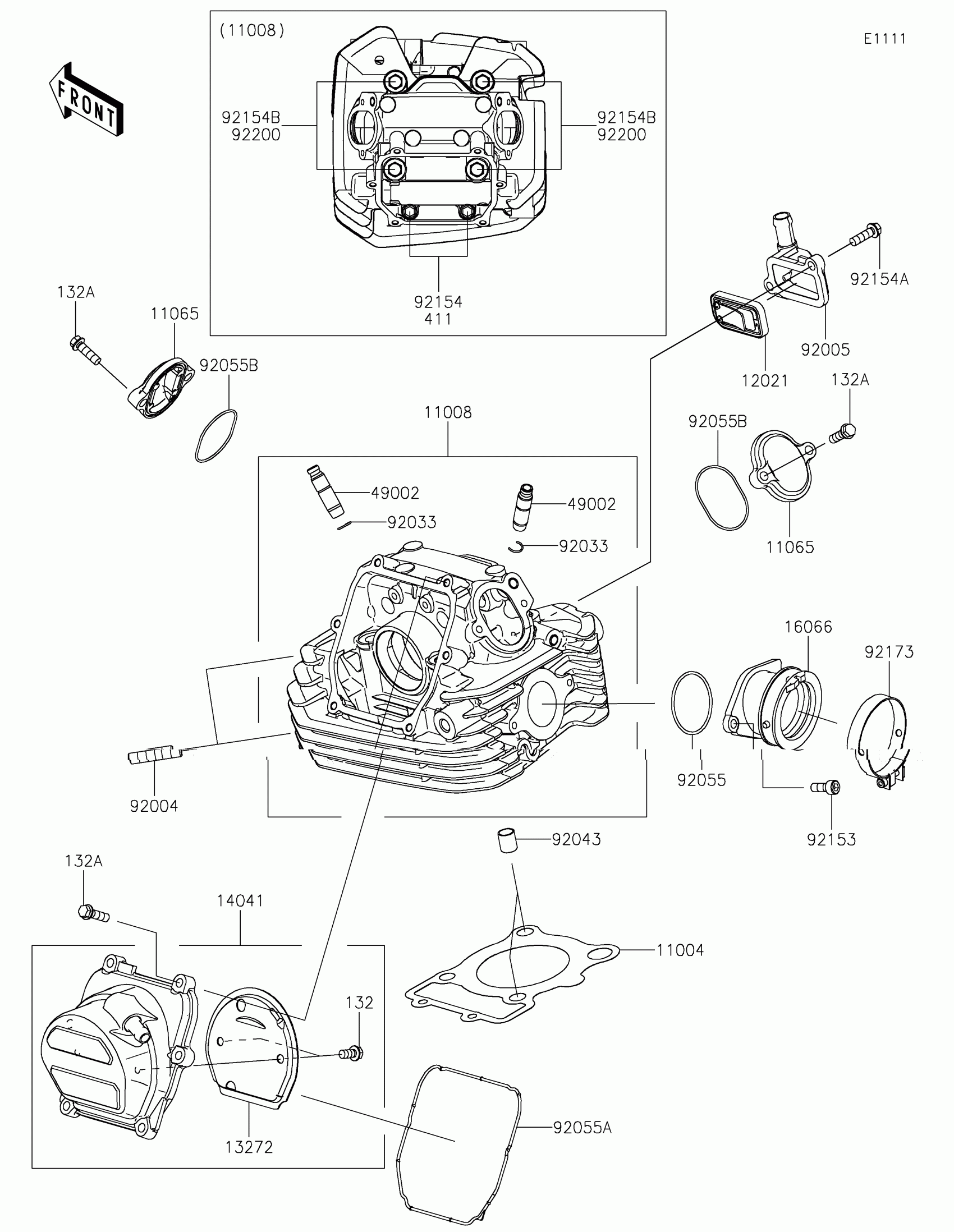

Kawasaki KLX®230 Cylinder Head Diagram
#
Description
Price
11004
GASKET-HEAD
11004-0784
$21.77
11008
HEAD-COMP-CYLINDER
11008-1524
$533.19
11065
CAP,VALVE,ADJUSTING
11065-1411
$18.81
12021
VALVE-ASSY-REED
12021-0050
$48.19
13272
PLATE
13272-2616
$7.78
14041
COVER-COMP,CAM CHAIN
14041-0619
$134.31
16066
HOLDER-THROTTLE BODY
16066-0021
$51.80
49002
GUIDE-VALVE
49002-0047
$20.75
92004
STUD,8X25
92004-0731
$4.14
92005
FITTING
92005-0983
$26.05
92033
RING-SNAP
92033-0789
$3.91
92043
PIN,10.1X12X14
92043-4009
$6.22
92055
RING-O,42X1.9
92055-0186
$6.61
92055A
RING-O
92055-0897
$19.58
92055B
RING-O,ADJUST CAP
92055-1655
$8.68
92153
BOLT,SOCKET,6X16
92153-1344
$2.97
92154
BOLT,FLANGED,6X130
92154-0993
$4.41
92154A
BOLT,FLANGED,6X20
92154-2757
$2.95
92154B
BOLT,FLANGED,10X190
92154-7052
$17.10
92173
CLAMP
92173-2191
$14.34
92200
WASHER,10.5X19X2.3
92200-0257
$1.78
132
BOLT-FLANGED-SMALL,6X12
132BD0612
$2.06
132A
BOLT-FLANGED-SMALL,6X20
132BD0620
$4.12
411
WASHER-PLAIN,6MM
411AA0600
$2.92
