Description

Price

11057

BRACKET,DIAG

11057-2018

$1.37

11057A

BRACKET,VEHICLE DOWN SENSOR

11057-2021

$23.99

11057B

BRACKET,ECU

11057-2022

$7.51

11057C

BRACKET,MAGNETIC SWITCH

11057-2348

$4.60

11057D

BRACKET,RELAY

11057-2349

$22.32

11057E

BRACKET,FUSE BOX

11057-2350

$3.26

11057F

BRACKET,RR HARNESS

11057-2351

$2.10

11057G

BRACKET,FR HARNESS

11057-2352

$24.70

11057H

BRACKET

11057-2463

$10.21

11057I

BRACKET,ENGINE START SWITCH

11057-2520

$2.80

11057J

BRACKET,HEAD LAMP ATTACHMENT

11057-4041

$2.32

14093

COVER,HARNESS

14093-0720

$4.55

21061

RECTIFIER

21061-1003

$29.60

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26011

WIRE-LEAD,DIAG

26011-0858

$31.99

26011A

WIRE-LEAD,BATTERY(+)

26011-1880

$88.64

26011B

WIRE-LEAD,BATTERY(-)

26011-1915

$98.85

26012

BATTERY,YTX7A-BS,12V 6.3AH

26012-0882

Unavailable

26031

HARNESS,MAIN

26031-2820

$737.71

26031A

HARNESS,MAIN

26031-2822

$737.71

27002

RELAY-ASSY

27002-0012

$42.21

27002A

RELAY-ASSY,TURN SIGNAL

27002-0031

$25.81

27002B

RELAY-ASSY

27002-1086

$36.91

27003

HORN

27003-0155

$70.00

35063

STAY

35063-1476

$2.51

39156

PAD,55X30X5

39156-2451

$1.98

49018

DIODE

49018-0005

$47.13

53044

TRIM,9X6.5X20

53044-0596

$4.10

55020

GUARD,OXYGEN SENSOR

55020-2254

$5.98

92072

BAND,L=250

92072-1237

$2.14

92072A

BAND,L=140

92072-1293

$7.11

92072B

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92072C

BAND,L=152

92072-3874

$4.18

92154

BOLT,FLANGED,5X12

92154-1215

Unavailable

92154A

BOLT,FLANGED,6X12

92154-1776

$0.63

92154B

BOLT,FLANGED,6X12

92154-2776

$2.70

92171

CLAMP,BRAKE HOSE

92171-0316

$3.88

130

BOLT-FLANGED,6X10

130BA0610

$1.20

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

92171A

CLAMP

92171-0911

$7.68

92172

SCREW,CROS,5X10

92172-1255

$0.42

92173

CLAMP

92173-1163

$1.59

92173A

CLAMP

92173-1526

$3.94

92210

NUT,PLATE,5MM

92210-0262

$1.34

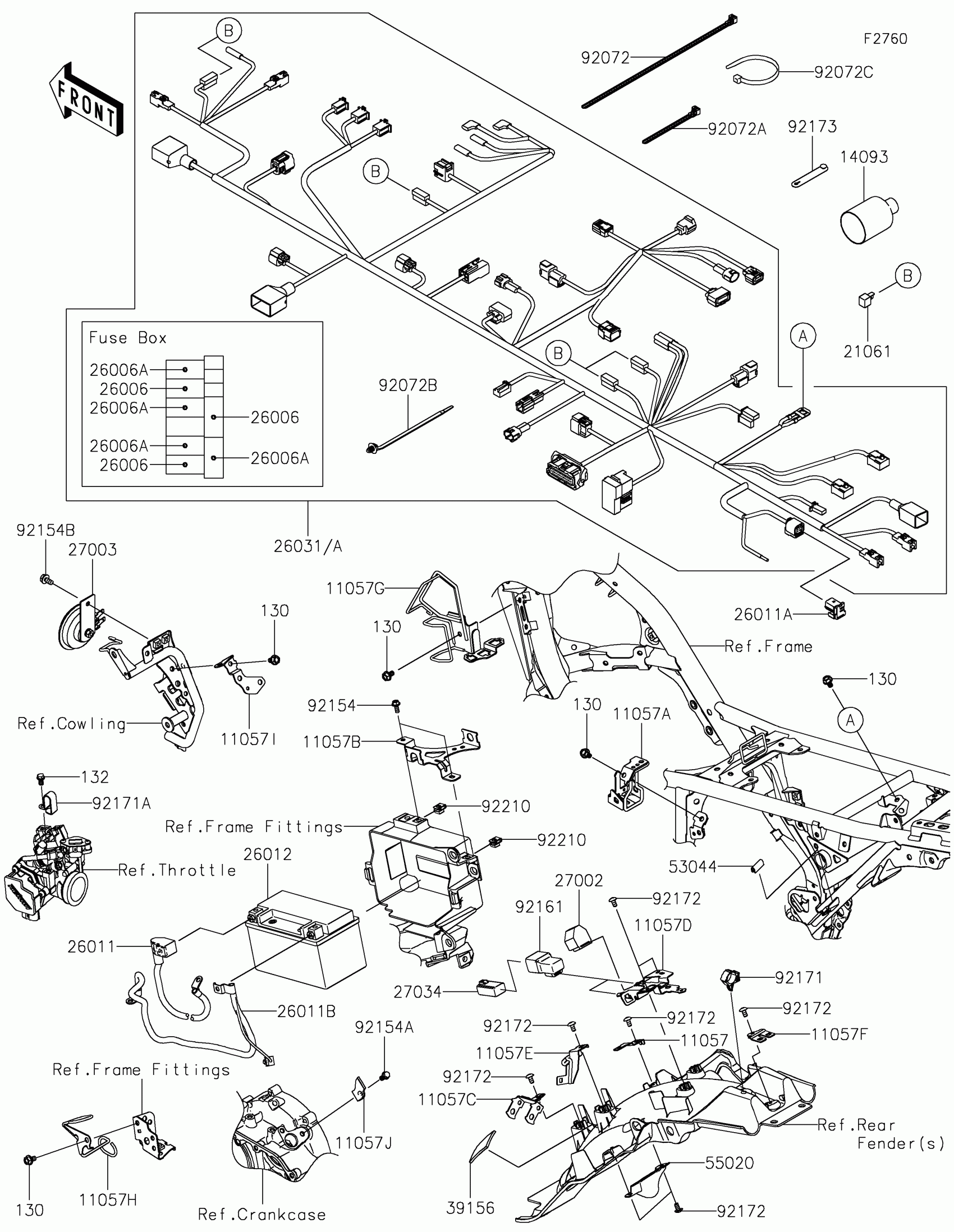

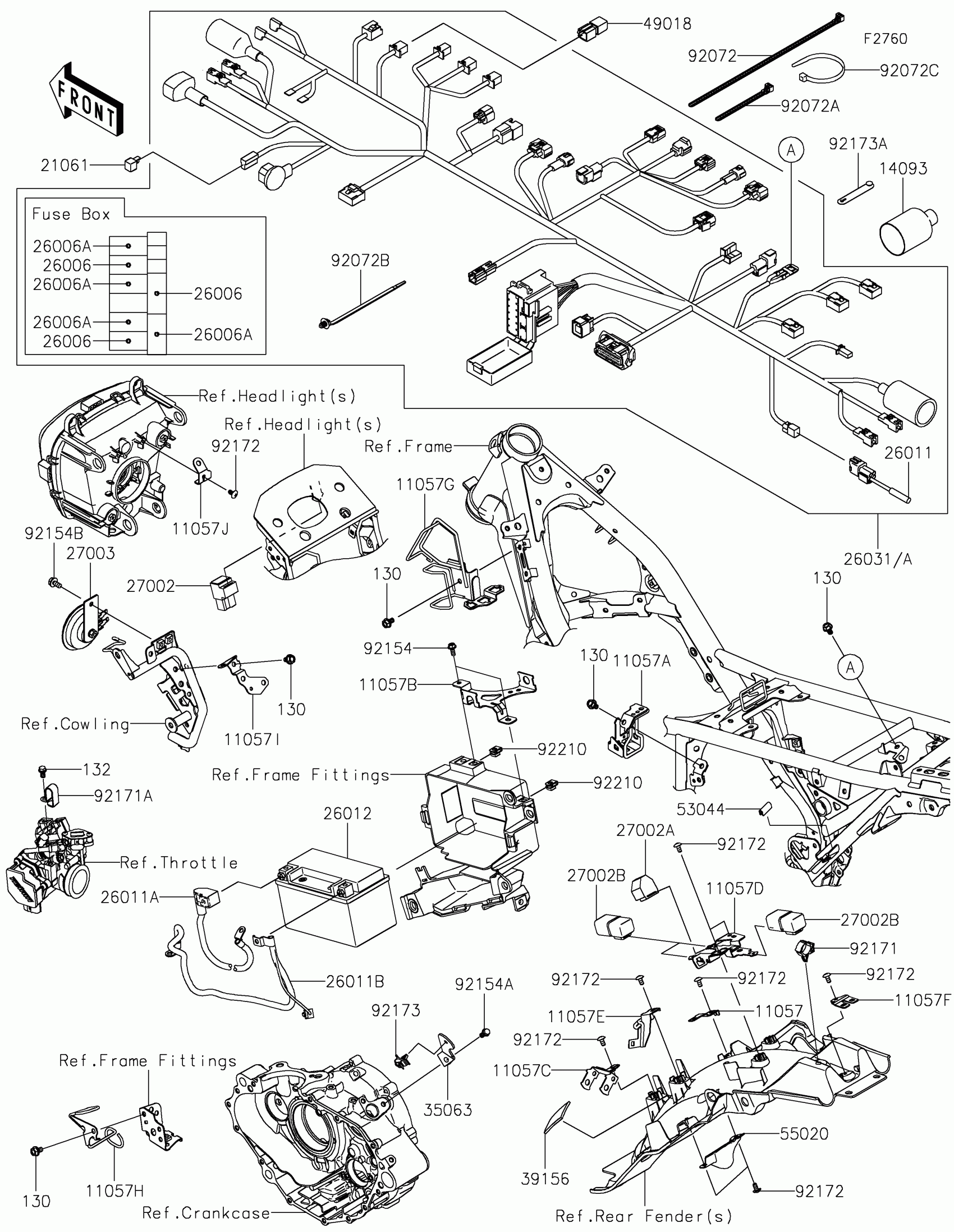

Kawasaki KLX®230 Chassis Electrical Equipment Diagram

BRACKET,DIAG

BRACKET,VEHICLE DOWN SENSOR

BRACKET,ECU

BRACKET,MAGNETIC SWITCH

BRACKET,RELAY

BRACKET,FUSE BOX

BRACKET,RR HARNESS

BRACKET,FR HARNESS

BRACKET

BRACKET,ENGINE START SWITCH

BRACKET,HEAD LAMP ATTACHMENT

COVER,HARNESS

RECTIFIER

FUSE,MINI BLADE,15A,BLUE

FUSE,MINI BLADE,10A,RED

WIRE-LEAD,DIAG

WIRE-LEAD,BATTERY(+)

WIRE-LEAD,BATTERY(-)

BATTERY,YTX7A-BS,12V 6.3AH

HARNESS,MAIN

HARNESS,MAIN

RELAY-ASSY

RELAY-ASSY,TURN SIGNAL

RELAY-ASSY

HORN

STAY

PAD,55X30X5

DIODE

TRIM,9X6.5X20

GUARD,OXYGEN SENSOR

BAND,L=250

BAND,L=140

BAND,OS170-FT7(BLACK)

BAND,L=152

BOLT,FLANGED,5X12

BOLT,FLANGED,6X12

BOLT,FLANGED,6X12

CLAMP,BRAKE HOSE

BOLT-FLANGED,6X10

BOLT-FLANGED-SMALL,6X10

CLAMP

SCREW,CROS,5X10

CLAMP

CLAMP

NUT,PLATE,5MM
