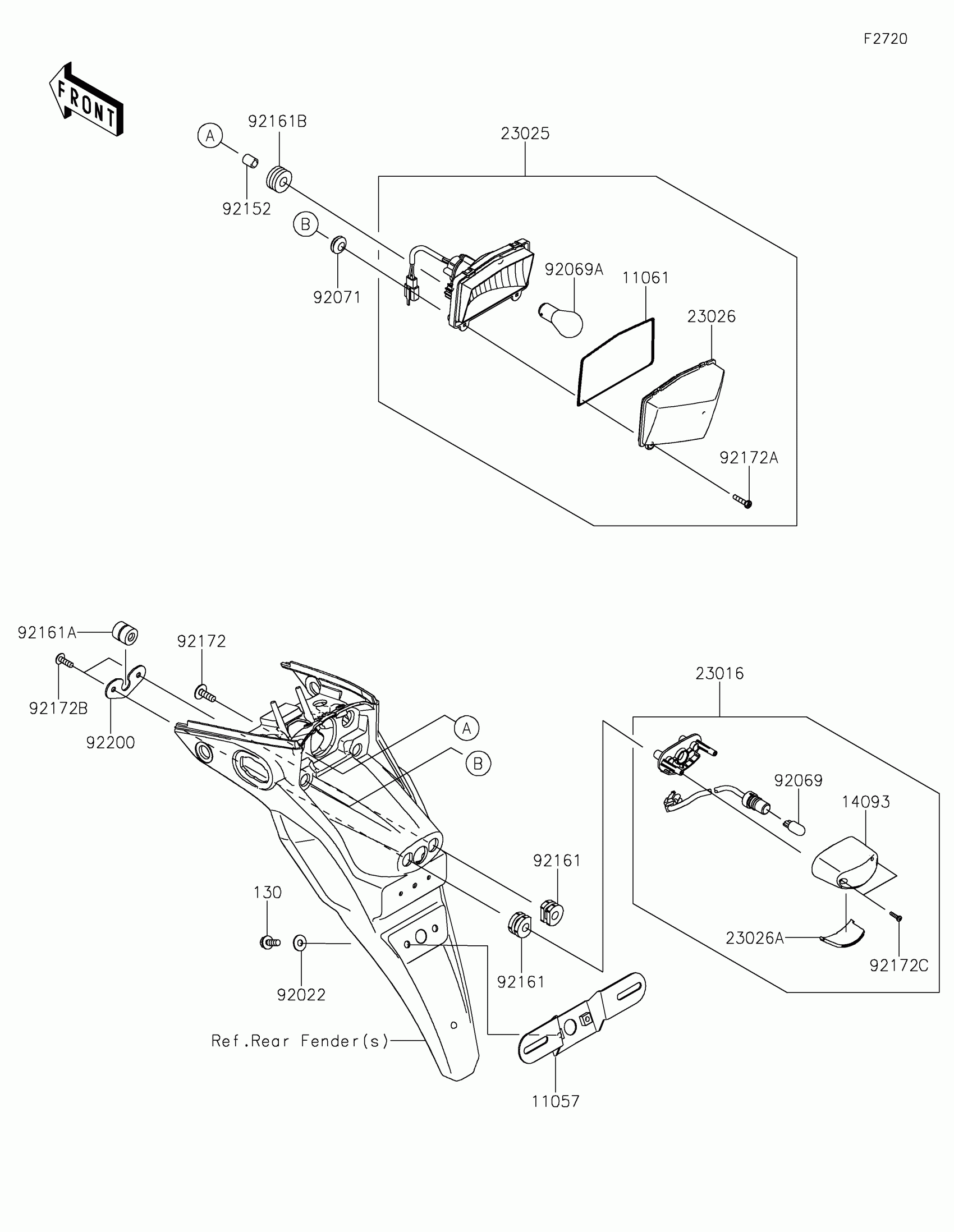

Kawasaki KLX®230 ABS Taillight(s) Diagram

Description

Price

11057

BRACKET,LICENSE PLATE

11057-1046

$13.34

11061

GASKET,TAIL LAMP LENS

11061-0393

$9.64

130

BOLT-FLANGED,6X16

130BA0616

$1.20

14093

COVER,LICENSE LAMP

14093-0525

$21.52

23016

LAMP-ASSY,LICENCE

23016-0604

$71.76

23025

LAMP-TAIL

23025-0355

$64.38

23026

LENS,TAIL LAMP

23026-0024

$21.96

23026A

LENS,LICENSE LAMP

23026-0025

$26.13

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92069

BULB,12V 5W

92069-1016

$6.52

92069A

BULB,12V 21/5W

92069-1084

$7.33

92071

GROMMET

92071-024

$4.65

92152

COLLAR,6.8X10X13

92152-0580

$3.90

92161

DAMPER

92161-0776

$5.54

92161A

DAMPER,6X18X18.2

92161-1809

$1.48

92161B

DAMPER,10X24X12

92161-2112

$5.00

92172

SCREW,6X18

92172-0192

$11.28

92172A

SCREW,4.2X19

92172-0411

$4.72

92172B

SCREW,TAPPING,5X16

92172-0427

$2.55

92172C

SCREW,4X12

92172-0904

$1.48

92200

WASHER

92200-1773

$2.26
