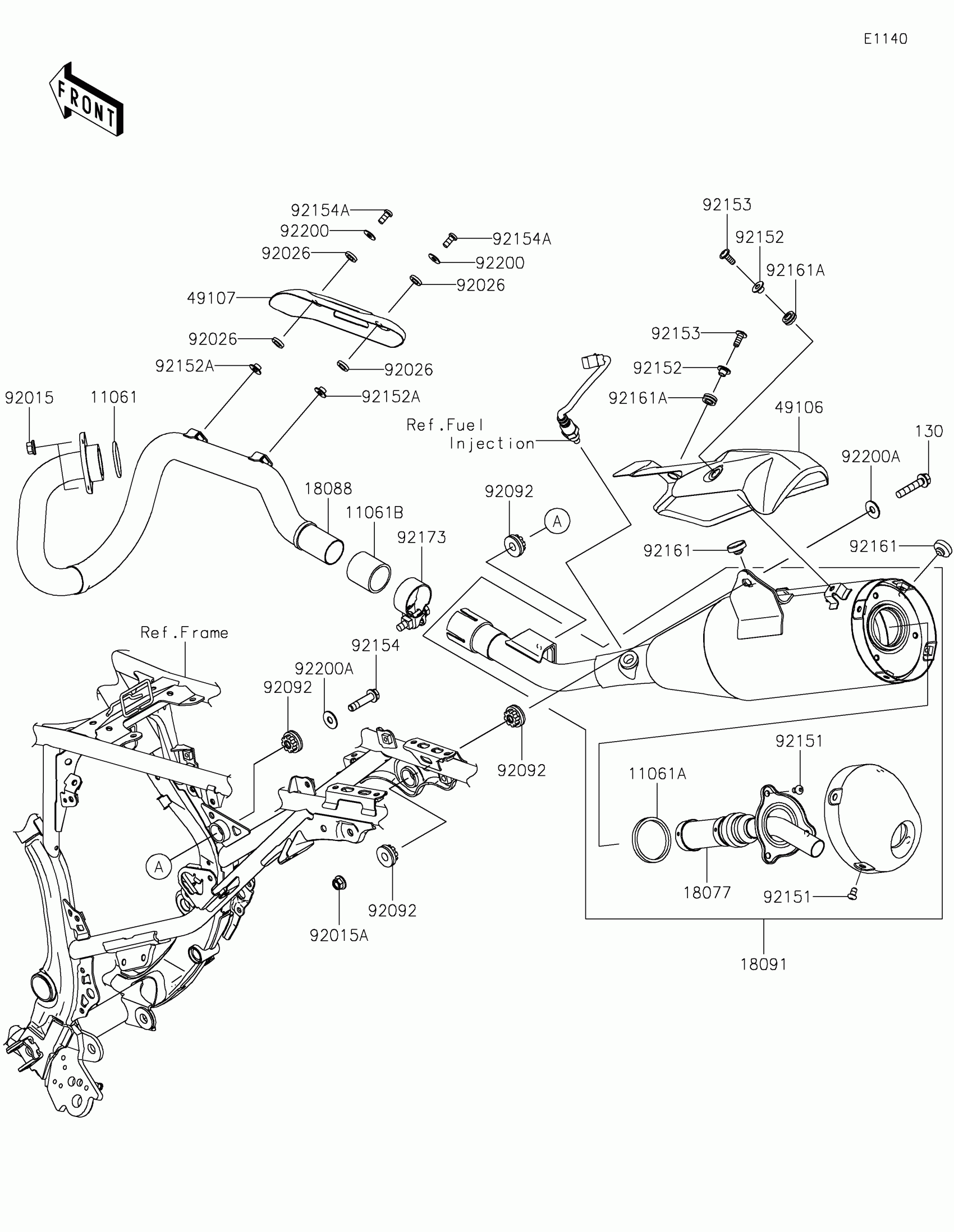

Kawasaki KLX®230 ABS Muffler(s) Diagram

#

Description
Price

11061

GASKET,EX PIPE

11061-0027

$7.60

11061A

GASKET,J/P-SILENCER

11061-0174

$7.82

11061B

GASKET,EXHAUST PIPE CONNECTING

11061-1055

$16.50

130

BOLT-FLANGED,8X40

130CA0840

$1.47

18077

ARRESTER-SPARK

18077-0046

$220.66

18088

PIPE-EXHAUST

18088-1453

$176.27

18091

BODY-COMP-MUFFLER

18091-1176

$545.71

49106

COVER-MUFFLER

49106-0840

$77.68

49107

COVER-EXHAUST PIPE

49107-0813

$54.07

92015

NUT,8MM

92015-1143

$0.65

92015A

NUT,8MM

92015-1432

$6.57

92026

SPACER,8.7X15.2X3

92026-0868

$2.10

92092

BUSHING-RUBBER

92092-0018

$11.54

92151

BOLT,SOCKET,6X10

92151-1449

$2.46

92152

COLLAR,6.3X8.3X16

92152-1602

$3.74

92152A

COLLAR,6.3X8.3X6.2

92152-2586

$7.51

92153

BOLT,SOCKET,6X16

92153-0817

$2.15

92154

BOLT,FLANGED,8X36

92154-1301

$3.86

92154A

BOLT,6X14

92154-3955

$2.58

92161

DAMPER,MUFFLER

92161-1284

$6.18

92161A

DAMPER

92161-1475

$5.33

92173

CLAMP

92173-2189

$7.78

92200

WASHER,6.5X16X1

92200-1974

$3.73

92200A

WASHER,8.5X22X1.5

92200-1975

$3.60
