Handlebar

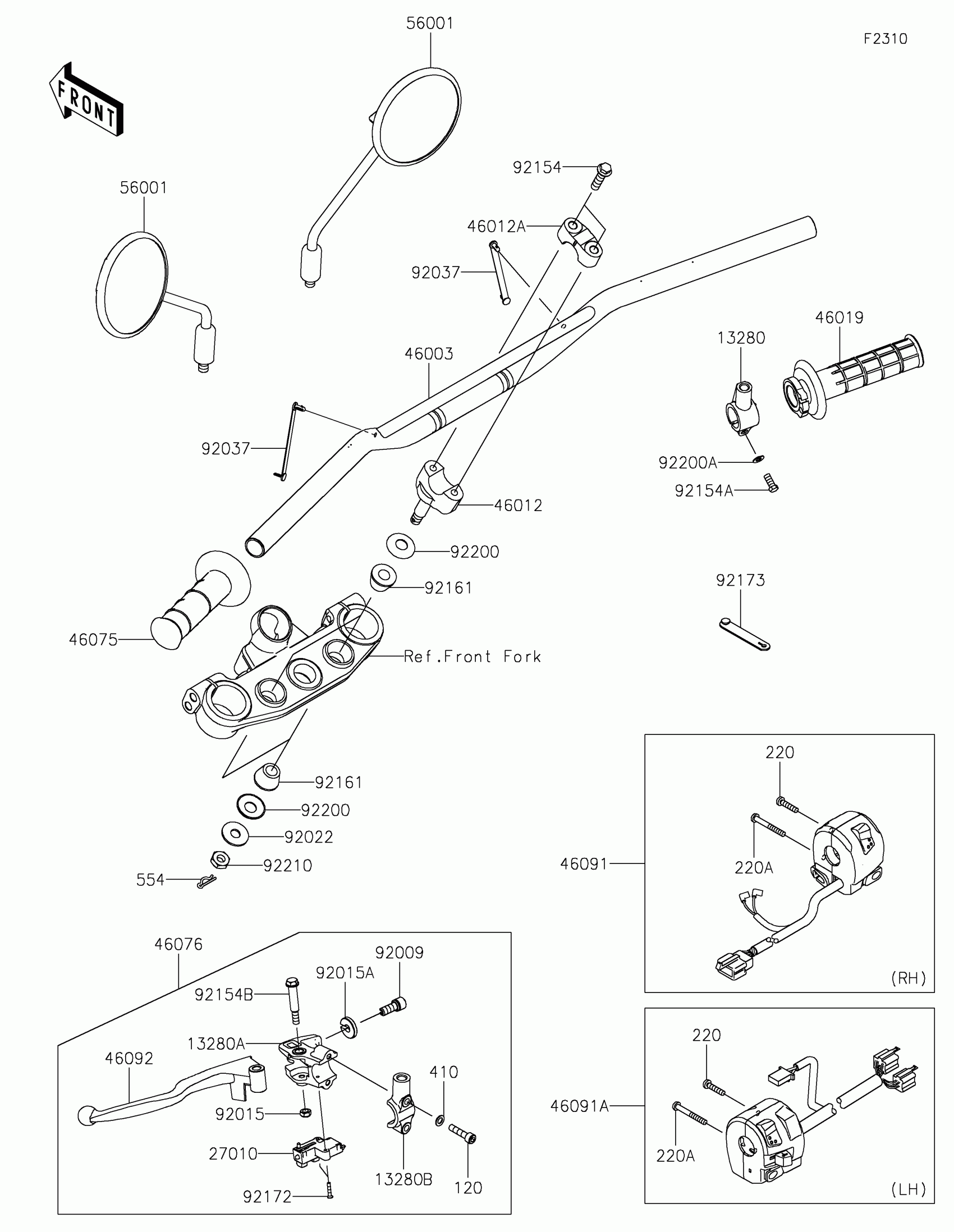

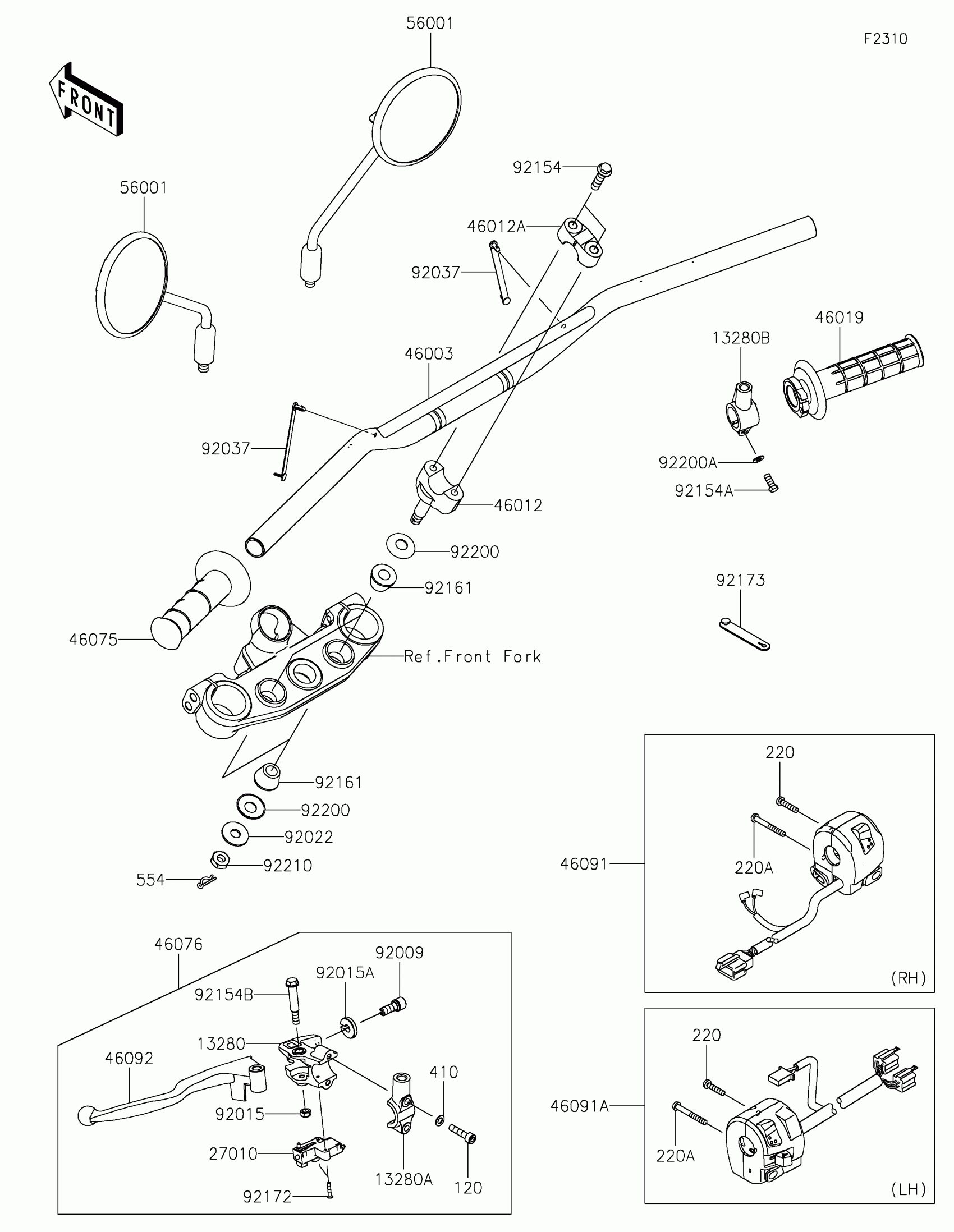

Kawasaki KLX®230 ABS Handlebar Diagram
#
Description
Price
120
BOLT-SOCKET,6X25
120CB0625
$2.62
13280
HOLDER,LEVER
13280-0929
$40.04
13280A
HOLDER,MIRROR
13280-0930
$21.13
13280B
HOLDER,MIRROR
13280-1000
$22.11
220
SCREW-PAN-CROS,5X22
220AB0522
$1.11
220A
SCREW-PAN-CROS,5X40
220AB0540
$2.06
27010
SWITCH,CLUTCH
27010-0729
$32.97
410
WASHER-PLAIN-SMALL,6MM
410AB0600
$0.77
46003
HANDLE,P.SILVER
46003-0795-458
$107.60
46012
HOLDER-HANDLE,LWR,P.SILVER
46012-0075-458
$30.12
46012A
HOLDER-HANDLE,UPP,P.SILVER
46012-0380-458
$23.51
46019
GRIP-ASSY,THROTTLE
46019-0088
$37.01
46075
GRIP,LH
46075-0644
$29.10
46076
LEVER-ASSY-GRIP,CLUTCH
46076-0160
$117.99
46091
HOUSING-ASSY-CONTROL,RH
46091-0452
$143.70
46091A
HOUSING-ASSY-CONTROL,LH
46091-0455
$153.00
46092
LEVER-GRIP,CLUTCH
46092-0576
$27.16
554
PIN-SNAP
554DA0800
$1.36
56001
MIRROR-ASSY
56001-0137
$45.64
92009
SCREW,CABLE ADJUST,8MM,BLACK
92009-1134
$15.16
92015
NUT,LOCK,6MM,BLACK
92015-1191
Unavailable
92015A
NUT,CABLE ADJUST LOCK,8MM,BLK
92015-1197
$9.91
92022
WASHER,10.2X28X2
92022-1088
$4.69
92037
CLAMP,SPEED,L=80.5
92037-1903
$7.84
92154
BOLT,FLANGED,8X30
92154-1246
$2.00
92154A
BOLT,UPSET,6X22
92154-1422
$4.69
92154B
BOLT,FLANGED,6X44
92154-2331
$7.59
92161
DAMPER,12X26X19
92161-2116
$6.07
92172
SCREW,3X16
92172-0183
$2.15
92173
CLAMP
92173-1526
$3.94
92200
WASHER,12.5X27.6X1.2
92200-0872
$5.52
92200A
WASHER,6.5X11.5X0.8
92200-0947
$0.39
92210
NUT,LOCK,10MM
92210-1672
$4.60
