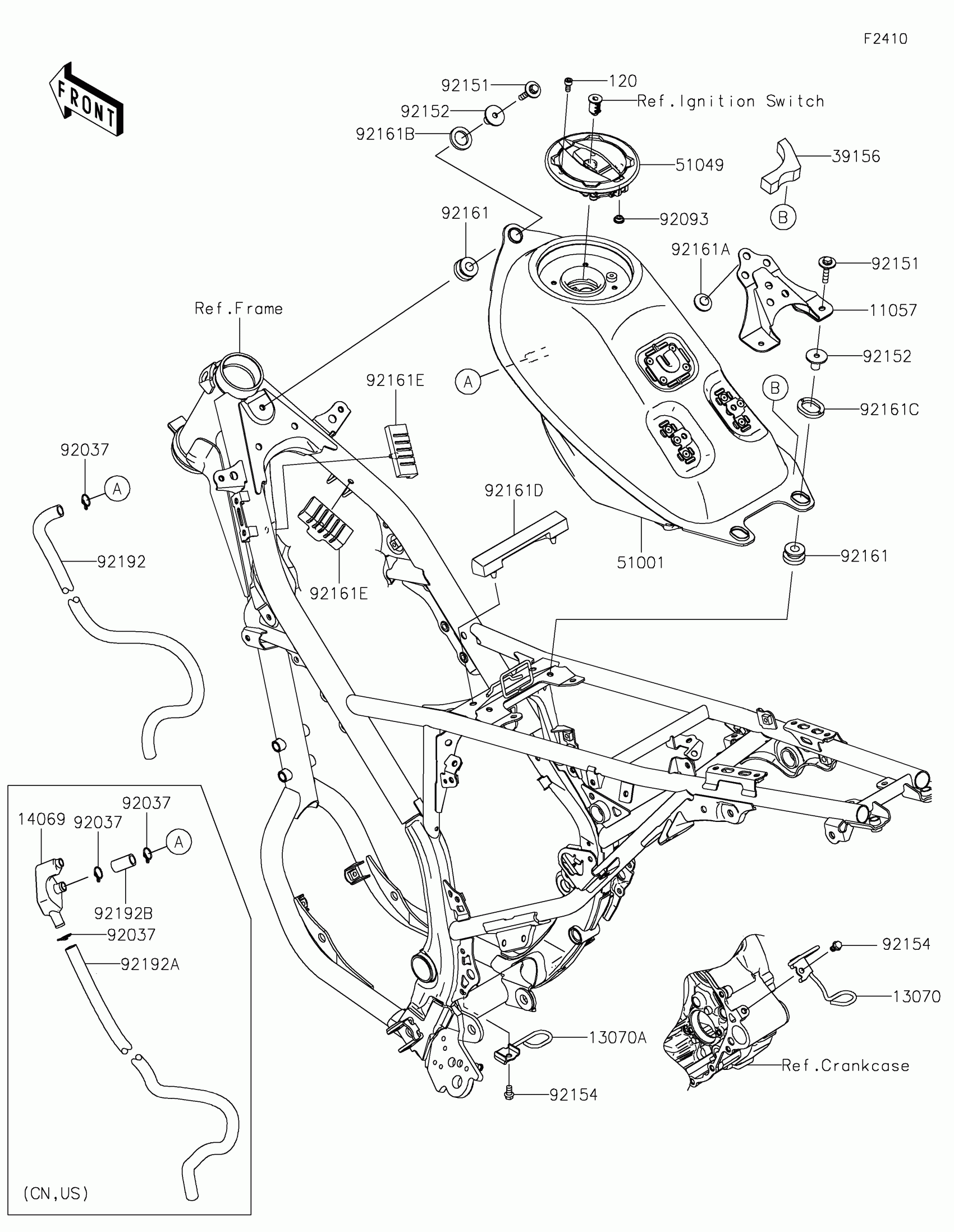

Kawasaki KLX®230 ABS Fuel Tank Diagram

#

Description
Price

11057

BRACKET

11057-3910

$23.88

120

BOLT-SOCKET,5X12

120CA0512

$1.19

13070

GUIDE

13070-0909

$5.61

13070A

GUIDE

13070-0912

$4.25

14069

BREATHER,FUEL TANK

14069-0033

$9.85

39156

PAD

39156-2463

$5.92

51001

TANK-COMP-FUEL,F.S.BLACK

51001-0876-25Q

$702.84

51049

CAP-TANK

51049-0735

$139.17

92037

CLAMP,12.5MM

92037-1271

$1.73

92037

CLAMP,12.5MM

92037-1271

$1.73

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92151

BOLT,FLANGED,6X30

92151-1105

$3.92

92152

COLLAR,6.8X10X16

92152-2666

$9.19

92154

BOLT,FLANGED,6X10

92154-0459

$7.54

92161

DAMPER,FUEL TANK,FR

92161-1392

$2.68

92161A

DAMPER,8X22X10

92161-1685

$0.74

92161B

DAMPER

92161-2216

$1.78

92161C

DAMPER

92161-2217

$1.22

92161D

DAMPER

92161-2231

$9.61

92161E

DAMPER

92161-2286

$5.66

92192

TUBE,DRAIN

92192-1949

$17.19

92192A

TUBE,10X14X870

92192-1964

$14.77

92192B

TUBE,10X14X26

92192-1965

$1.54
