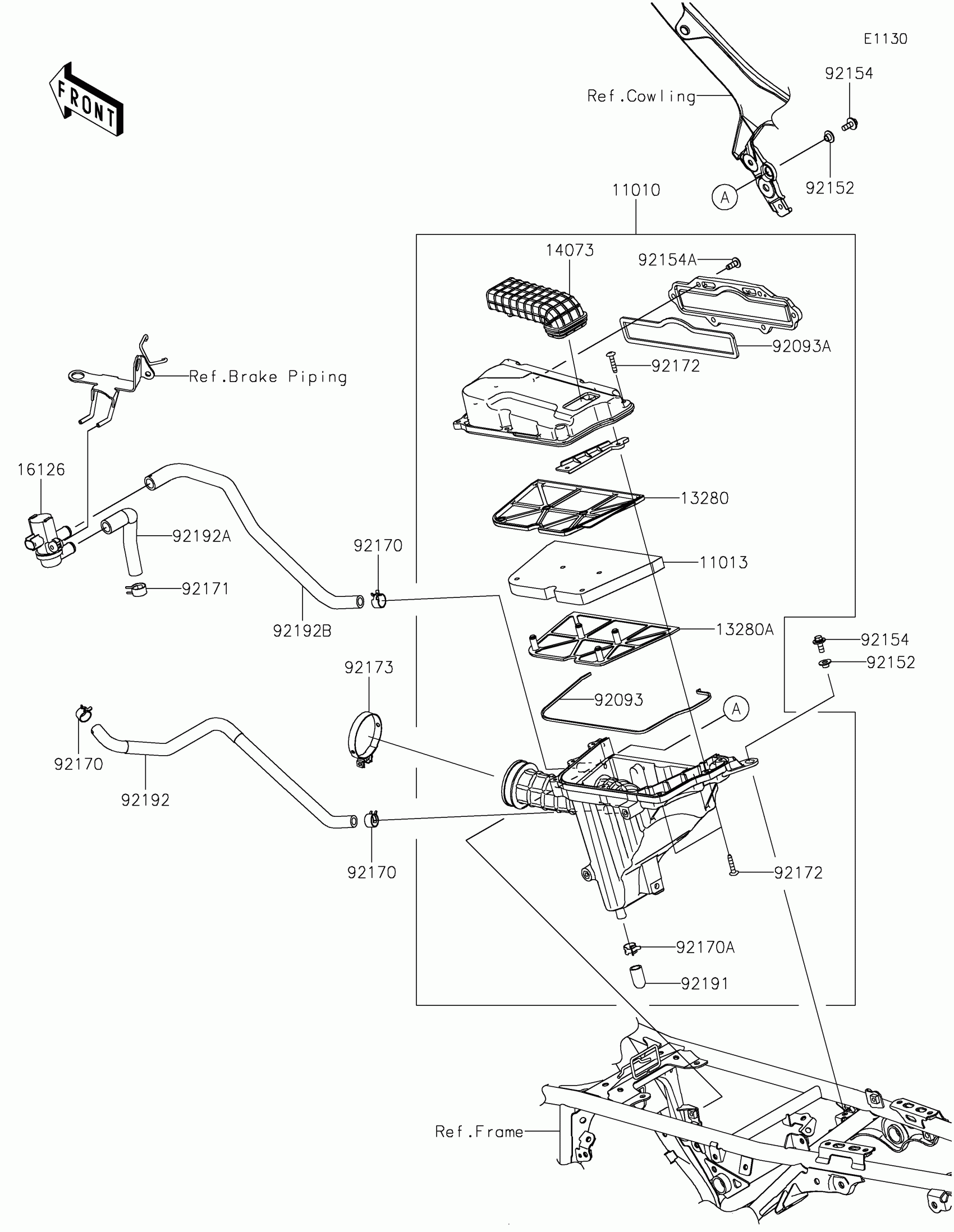

Kawasaki KLX®230 ABS Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0899

$232.35

11013

ELEMENT-AIR FILTER

11013-0790

$13.41

13280

HOLDER,UPP

13280-0945

$3.10

13280A

HOLDER,LWR

13280-0946

$12.59

14073

DUCT,IN

14073-0928

$34.44

16126

VALVE,AIR SWITCH

16126-0750

$86.26

92093

SEAL

92093-0727

$4.64

92093A

SEAL

92093-0728

$34.20

92152

COLLAR,6.3X8.3X6.2

92152-2586

$7.41

92154

BOLT,FLANGED-SMALL,6X16

92154-1183

$1.32

92154A

BOLT,6X16

92154-3970

$2.12

92170

CLAMP,BRAKE HOSE

92170-1434

$11.81

92170A

CLAMP

92170-1938

$2.84

92171

CLAMP

92171-0533

$2.71

92172

SCREW

92172-1291

$1.22

92173

CLAMP

92173-2191

$13.63

92191

TUBE

92191-1704

$7.44

92192

TUBE,BLOW-BY

92192-1929

$23.47

92192A

TUBE,ASWV-HEAD

92192-1930

$12.59

92192B

TUBE,A/C-ASWV

92192-1931

$16.53
