2020 Kawasaki KLX®230 ABS Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2020 Kawasaki KLX®230 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

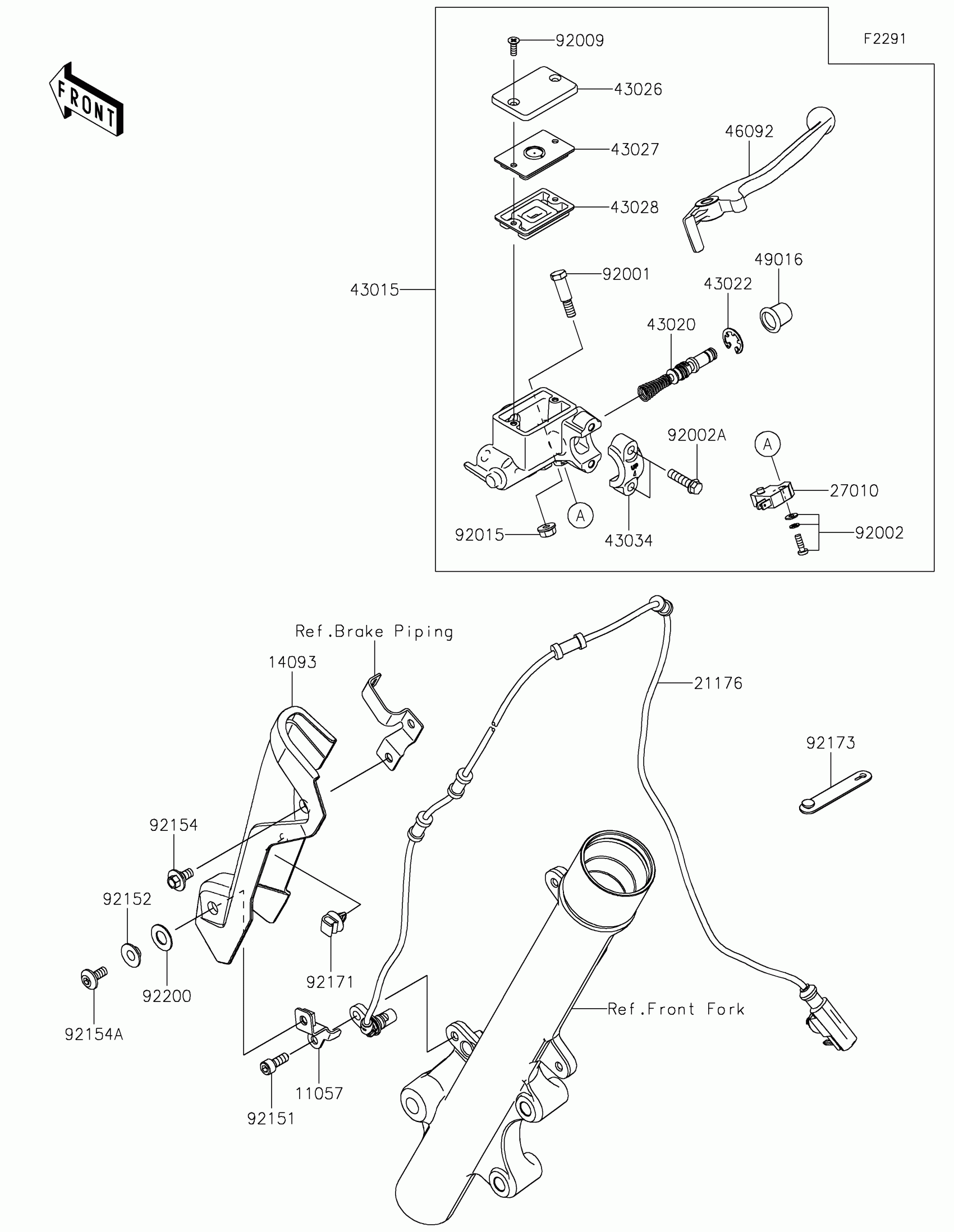

2020 Kawasaki KLX®230 ABS Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,ABS SENSOR

11057-2360

1
Out of stock

14093

COVER,ABS SENSOR

14093-0863

1
Out of stock

21176

SENSOR,SPEED,FR

21176-0904

1
Out of stock

27010

SWITCH,BRAKE

27010-0873

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0741

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-0034

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-0004

1
Out of stock

43026

CAP-BRAKE

43026-1082

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1057

1
Out of stock

43028

DIAPHRAGM

43028-1061

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

1
Out of stock

46092

LEVER-GRIP,FRONT BRAKE

46092-0044

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

92001

BOLT,FRONT BRAKE LEVER

92001-1728

1
Out of stock

92002

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92002A

BOLT

92002-1894

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92151

BOLT

92151-1166

1
Out of stock

92152

COLLAR

92152-0427

1
Out of stock

92154

BOLT,FLANGED,6X9

92154-0546

1
Out of stock

92154A

BOLT,SOCKET,6X14

92154-3763

1
Out of stock

92171

CLAMP

92171-0640

1
Out of stock

92173

CLAMP

92173-1526

1
Out of stock

92200

WASHER,10.5X20X1.0

92200-0870

1
Out of stock
