2020 Kawasaki KLX®230 ABS Brake Piping Diagram

← All diagrams

Find the part on the Brake Piping diagram for your 2020 Kawasaki KLX®230 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

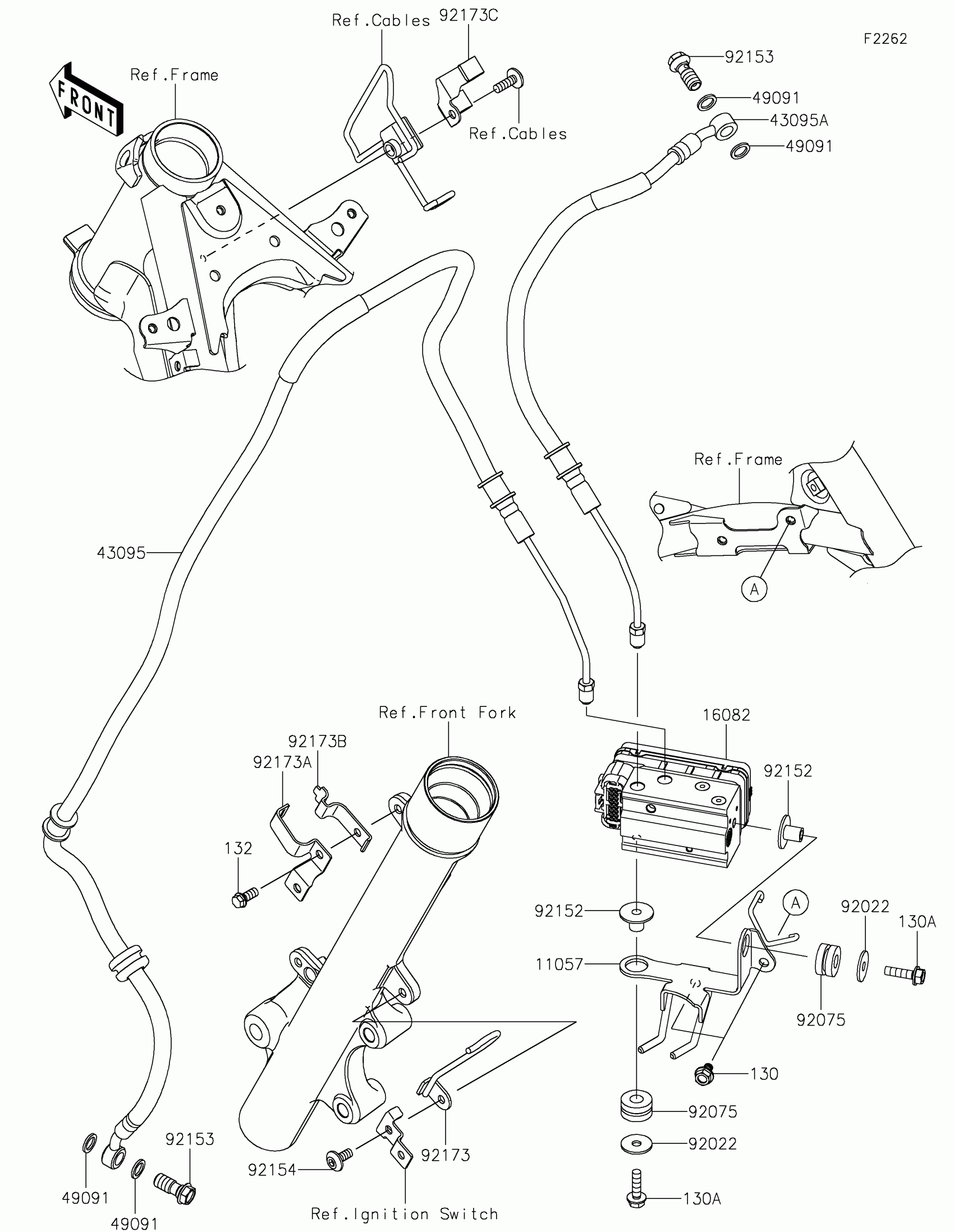

2020 Kawasaki KLX®230 ABS Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,ABS UNIT

11057-2358

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

132

1

$1.31

In stock

16082

PUMP-ASSY-OIL,ABS,BOSCH,10MB

16082-0823

1
Out of stock

43095

HOSE-BRAKE,ABS UNIT-FR CALIPER

43095-1644

1
Out of stock

43095A

HOSE-BRAKE,ABS UNIT-FR M/C

43095-1645

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92022

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92075

DAMPER RUBBER,RR FENR

92075-209

1
Out of stock

92152

COLLAR,6.5X10X13.6

92152-2204

1
Out of stock

92153

BOLT,OIL,L=23

92153-0029

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-3763

1
Out of stock

92173

CLAMP,BRAKE HOSE,CALIPER

92173-1972

1
Out of stock

92173A

CLAMP

92173-2043

1
Out of stock

92173B

CLAMP

92173-2044

1
Out of stock

92173C

CLAMP

92173-2045

1
Out of stock
