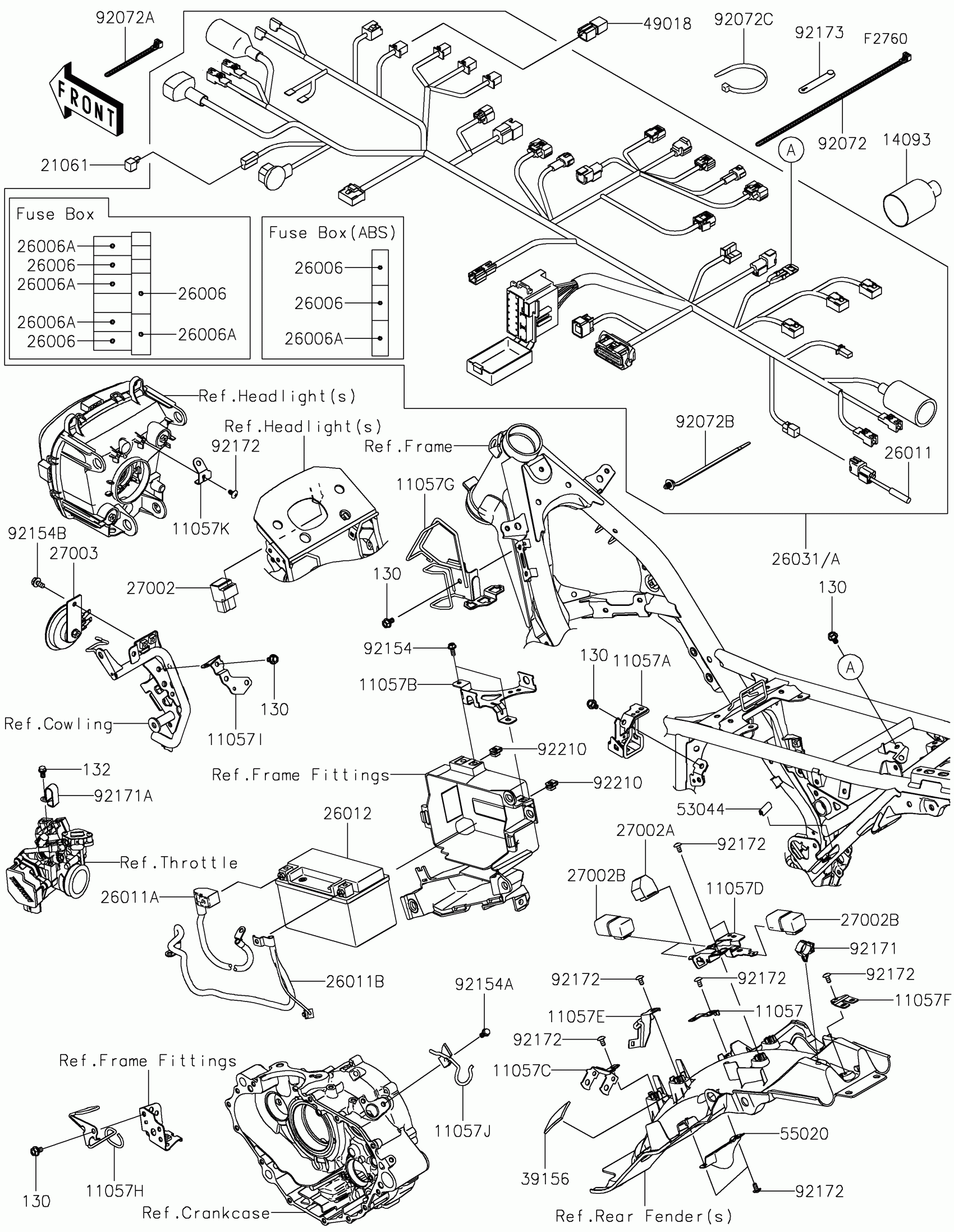

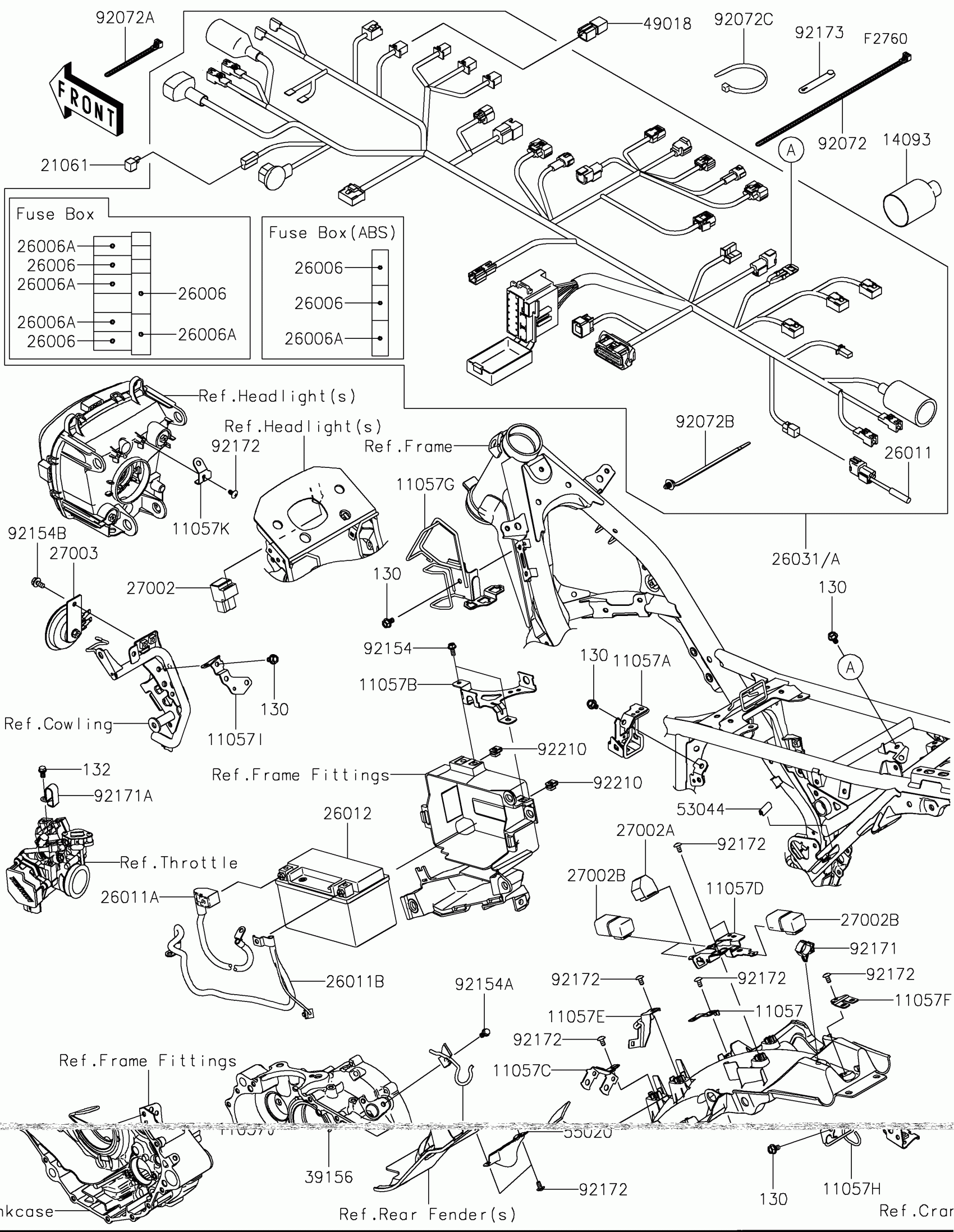

Kawasaki KLX®230 ABS Chassis Electrical Equipment Diagram

#

Description
Price

11057

BRACKET,DIAG

11057-2018

$1.37

11057A

BRACKET,VEHICLE DOWN SENSOR

11057-2021

$23.99

11057B

BRACKET,ECU

11057-2022

$7.51

11057C

BRACKET,MAGNETIC SWITCH

11057-2348

$4.60

11057D

BRACKET,RELAY

11057-2349

$22.32

11057E

BRACKET,FUSE BOX

11057-2350

$3.26

11057F

BRACKET,RR HARNESS

11057-2351

$2.10

11057G

BRACKET,FR HARNESS

11057-2352

$24.70

11057H

BRACKET

11057-2463

$10.21

11057I

BRACKET,ENGINE START SWITCH

11057-2520

$2.80

11057J

BRACKET,BRAKE HOSE&HARNESS

11057-2772

$8.74

11057K

BRACKET,HEAD LAMP ATTACHMENT

11057-4041

$2.32

14093

COVER,HARNESS

14093-0720

$4.55

21061

RECTIFIER

21061-1003

$29.60

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26011

WIRE-LEAD,DIAG

26011-0858

$31.99

26011A

WIRE-LEAD,BATTERY(+)

26011-1879

$110.16

26011B

WIRE-LEAD,BATTERY(-)

26011-1915

$98.85

26012

BATTERY,YTX7A-BS,12V 6.3AH

26012-0882

Unavailable

26031

HARNESS,MAIN

26031-2819

$737.71

26031A

HARNESS,MAIN

26031-2821

$737.71

27002

RELAY-ASSY

27002-0012

$42.21

27002A

RELAY-ASSY,TURN SIGNAL

27002-0031

$25.81

27002B

RELAY-ASSY

27002-1086

$36.91

27003

HORN

27003-0155

$70.00

39156

PAD,55X30X5

39156-2451

$1.98

49018

DIODE

49018-0005

$47.13

53044

TRIM,9X6.5X20

53044-0596

$4.10

55020

GUARD,OXYGEN SENSOR

55020-2254

$5.98

92072

BAND,L=250

92072-1237

$2.14

92072A

BAND,L=140

92072-1293

$7.11

92072B

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92072C

BAND,L=152

92072-3874

$4.18

92154

BOLT,FLANGED,5X12

92154-1215

Unavailable

92154A

BOLT,FLANGED,6X12

92154-1776

$0.63

92154B

BOLT,FLANGED,6X12

92154-2776

$2.70

92171

CLAMP,BRAKE HOSE

92171-0316

$3.88

130

BOLT-FLANGED,6X10

130BA0610

$1.20

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

92171A

CLAMP

92171-0911

$7.68

92172

SCREW,CROS,5X10

92172-1255

$0.42

92173

CLAMP

92173-1526

$3.94

92210

NUT,PLATE,5MM

92210-0262

$1.34
