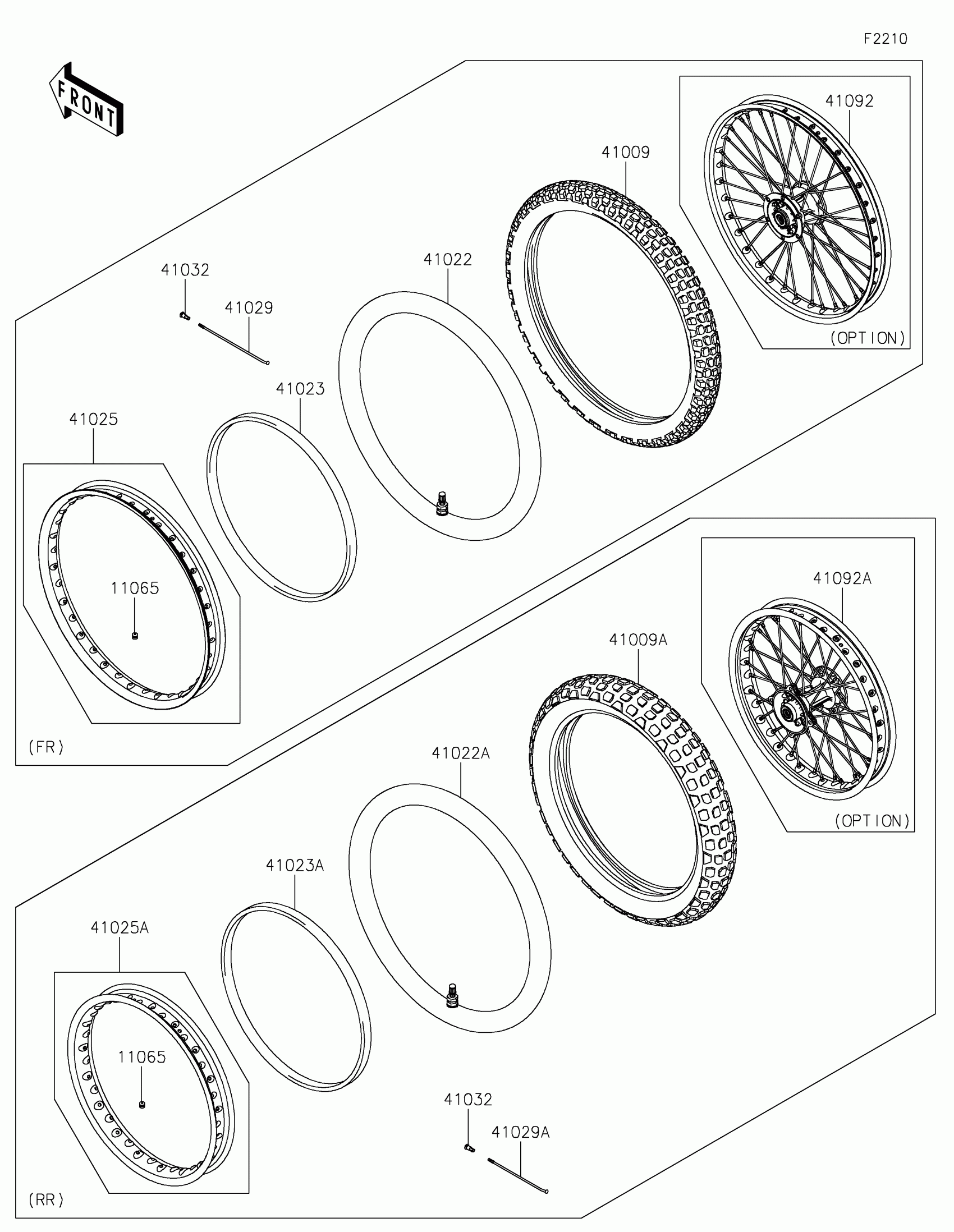

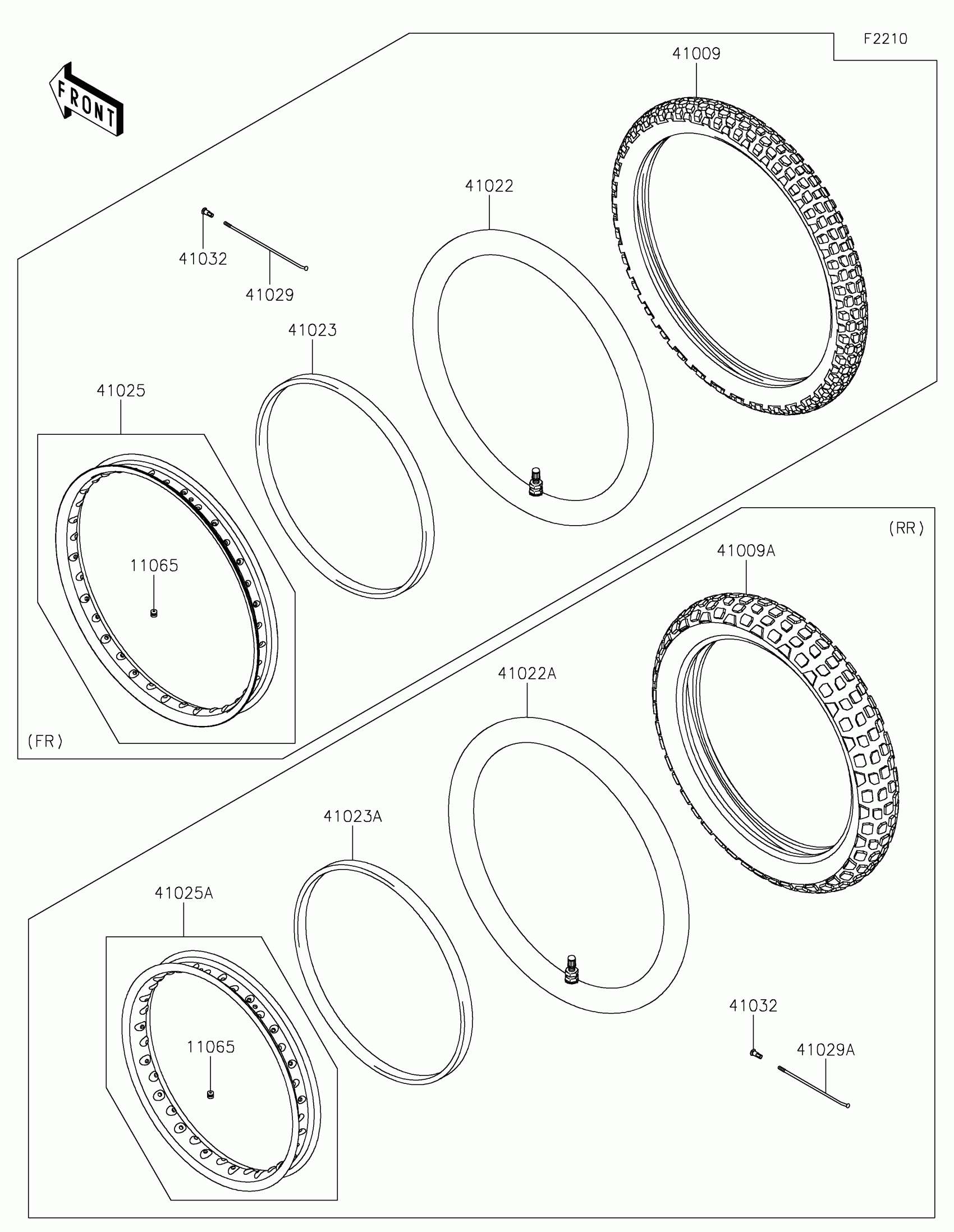

Kawasaki KLX®150L Tires Diagram

CAP,BEAD STOPPER

11065-0384

$3.68

TIRE,FR,2.75-21 45P,GP-21F

41009-0598

$125.27

TIRE,RR,4.10-18 59P,GP-22R

41009-0599

$145.14

TUBE-TIRE,2.75-21

41022-0066

$50.05

TUBE-TIRE,4.10-18

41022-0067

$39.54

BAND-RIM,2.75-21

41023-0028

$5.77

BAND-RIM,4.10-18

41023-0029

$5.77

RIM,FR,21X1.60,SILVER

41025-0365-WA

Unavailable

RIM,RR,18X1.85,SILVER

41025-0366-WA

Unavailable

SPOKE-INNER,228MMX159D

41029-0078

$4.72

SPOKE-INNER,195MMX162D

41029-0079

$4.94

NIPPLE-SPOKE

41032-0006

Unavailable

WHEEL-SUB ASSY,FR,SILVER

41092-0028-WA

$1,245.22

WHEEL-SUB ASSY,SILVER

41092-0029-WA

$928.71
