Description

Price

11056

BRACKET

11056-2395

$1.19

11056A

BRACKET,WITH NUT

11056-2396

$2.00

11065

CAP

11065-0805

$4.06

12053

GUIDE-CHAIN,LH

12053-0200

$22.76

12053A

GUIDE-CHAIN,RH

12053-0201

$22.76

33001

ARM-COMP-SWING,P.SILVER

33001-0644-458

Unavailable

33032

SHAFT-SWING ARM,14X227

33032-0053

$30.76

33040

ADJUSTER-CHAIN

33040-0019

$8.31

33040A

ADJUSTER-CHAIN,OUTSIDE

33040-1162

$3.07

42036

SLEEVE,PIVOT,15.1X20X197.8

42036-0070

$40.82

55020

GUARD

55020-0858

$10.21

92015

NUT,8MM

92015-1364

$3.92

92046

BEARING-NEEDLE,BM202726

92046-1110

$23.45

92049

SEAL-OIL,ARM

92049-1109

$9.28

92154

BOLT,FLANGED,6X55

92154-1190

$2.80

92154A

BOLT,FLANGED,6X50

92154-1193

$1.28

92210

NUT,8MM

92210-0773

Unavailable

92210A

NUT

92210-0855

$9.91

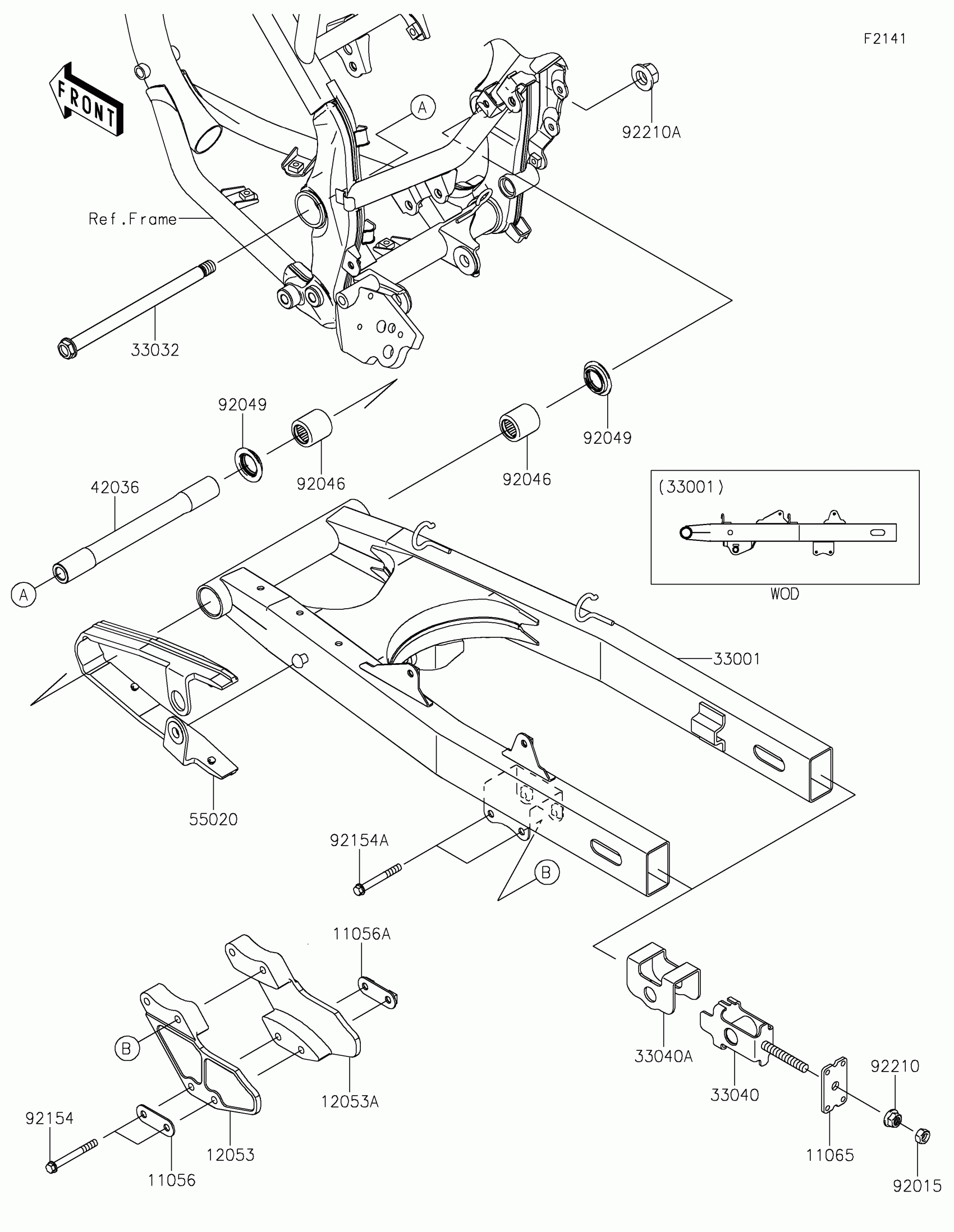

Kawasaki KLX®150L Swingarm Diagram

BRACKET

BRACKET,WITH NUT

CAP

GUIDE-CHAIN,LH

GUIDE-CHAIN,RH

ARM-COMP-SWING,P.SILVER

SHAFT-SWING ARM,14X227

ADJUSTER-CHAIN

ADJUSTER-CHAIN,OUTSIDE

SLEEVE,PIVOT,15.1X20X197.8

GUARD

NUT,8MM

BEARING-NEEDLE,BM202726

SEAL-OIL,ARM

BOLT,FLANGED,6X55

BOLT,FLANGED,6X50

NUT,8MM

NUT
