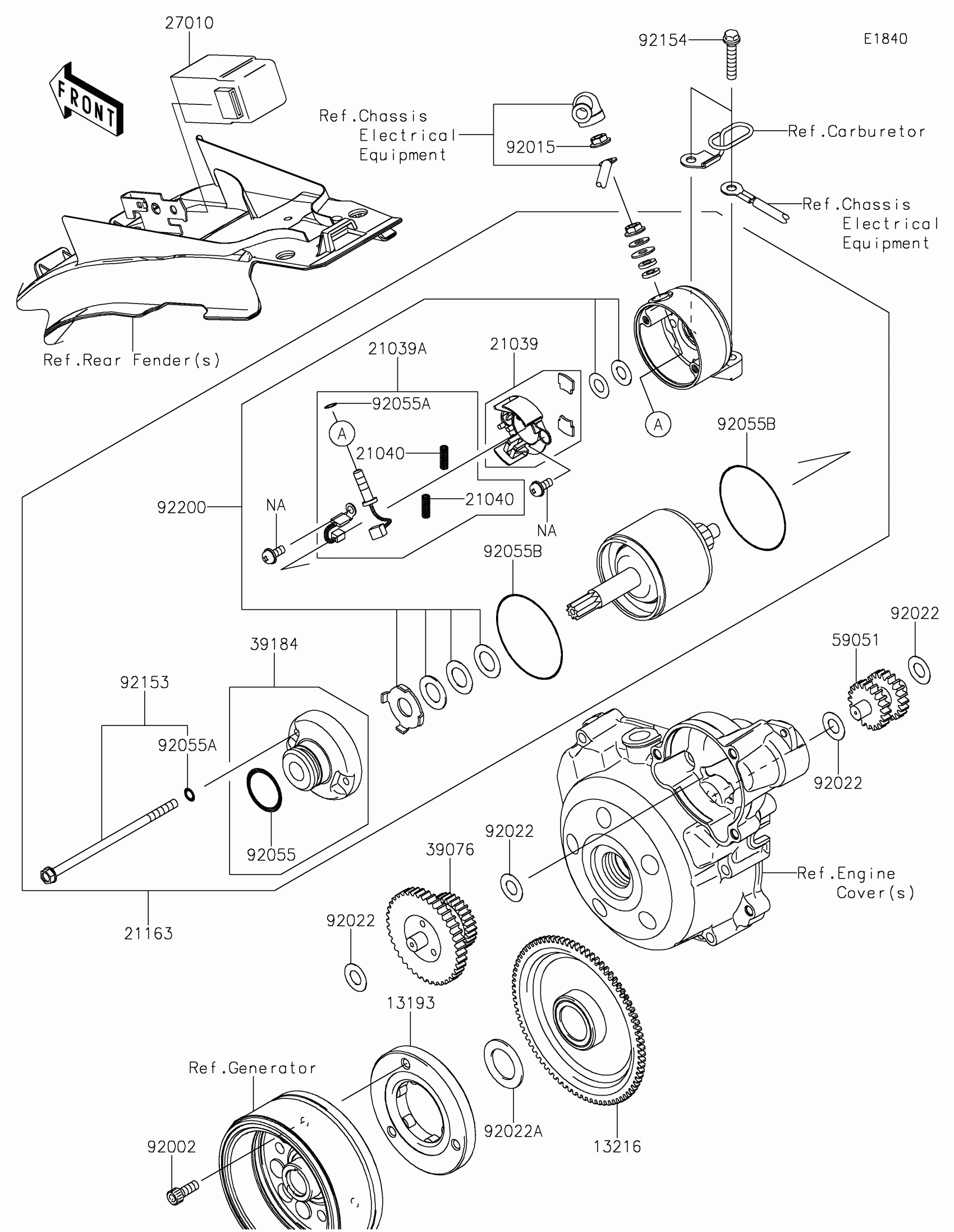

Kawasaki KLX®150L Starter Motor Diagram

Description

Price

13193

CLUTCH-ASSY-ONEWAY

13193-0009

Unavailable

13216

GEAR-COMP,FREE WHEEL

13216-0888

Unavailable

21039

BRUSH

21039-0007

$60.56

21039A

BRUSH

21039-0008

$25.00

21040

SPRING-BRUSH

21040-0004

$16.56

21163

STARTER-ELECTRIC

21163-0058

$318.90

27010

SWITCH

27010-0085

$56.70

39076

LIMITER,STARTER IDLE GEAR

39076-0030

Unavailable

39184

BRACKET-ASSY

39184-0015

$36.54

59051

GEAR-SPUR,IDLE

59051-1304

$89.00

92002

BOLT,SOCKET,6X16

92002-1778

$5.00

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER,10.2X20X0.5

92022-1649

$4.31

92022A

WASHER,22.3X35X1.6

92022-212

$9.91

92055

RING-O

92055-1276

$9.91

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O

92055-1550

$9.91

92153

BOLT

92153-1914

$9.35

92154

BOLT,FLANGED,6X30

92154-1159

$2.67

92200

WASHER,SET

92200-0407

$3.90
