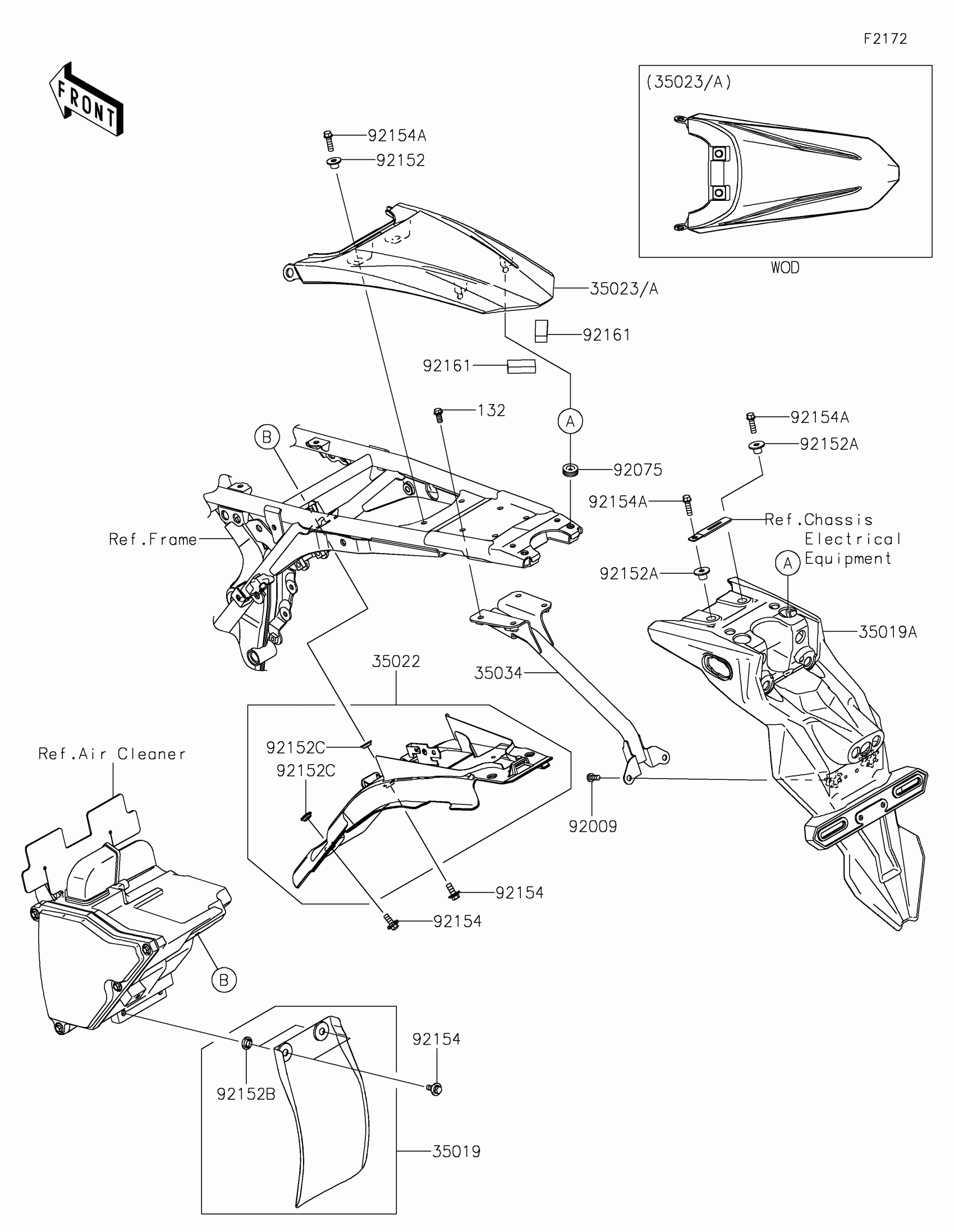

Kawasaki KLX®150L Rear Fender(s) Diagram

Description

Price

35019

FLAP,RR FENDER,FR

35019-0599

$48.27

35019A

FLAP

35019-0613

Unavailable

35022

FENDER-COMP-REAR

35022-0102

Unavailable

35023

FENDER-REAR,L.GREEN

35023-0402-290

Unavailable

35023A

FENDER-REAR,EBONY

35023-0402-6C

Unavailable

35034

REINFORCE

35034-0595

Unavailable

92009

SCREW,6X14

92009-3845

$1.06

92075

DAMPER

92075-1629

$5.00

92152

COLLAR

92152-0597

$1.54

92152A

COLLAR,6.5X10X10.4

92152-1688

$1.97

92152B

COLLAR,8.8X16X4

92152-1731

$5.65

92152C

COLLAR,8.8X16X4

92152-2185

$5.65

92154

BOLT,FLANGED-SMALL,6X16

92154-1183

$1.48

92154A

BOLT,FLANGED,6X20

92154-1219

$2.49

92161

DAMPER,15X35X10

92161-1559

$3.92

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20
