Description

Price

11061

GASKET,MUFFLER JOINT

11061-0866

$27.58

11061A

GASKET,EXHAUST PIPE

11061-0871

$7.69

11061B

GASKET,5.8X12X1.5

11061-1148

Unavailable

130

BOLT-FLANGED,6X10

130BA0610

$1.20

14041

COVER-COMP

14041-0585

Unavailable

18088

PIPE-EXHAUST

18088-1329

$117.10

18091

BODY-COMP-MUFFLER

18091-0950

Unavailable

49107

COVER-EXHAUST PIPE

49107-0780

Unavailable

92004

STUD,8X22

92004-0040

$3.60

92015

NUT,8MM

92015-1432

$6.57

92152

COLLAR,6.5X8.5X6

92152-1962

$3.90

92154

BOLT,8X16

92154-1228

$2.00

92154A

BOLT,SOCKET,6X14

92154-2817

$3.42

92161

DAMPER,MUFFLER

92161-1284

$6.18

92161A

DAMPER

92161-2110

$5.65

92161B

DAMPER

92161-2125

$2.67

92173

CLAMP

92173-1223

$16.97

92200

WASHER,6.5X16X1.0

92200-0796

$0.85

92200A

WASHER,6.5X16X1

92200-1974

$3.73

92200B

WASHER,8.5X22X1.5

92200-1975

$3.60

92210

NUT,8MM

92210-0773

Unavailable

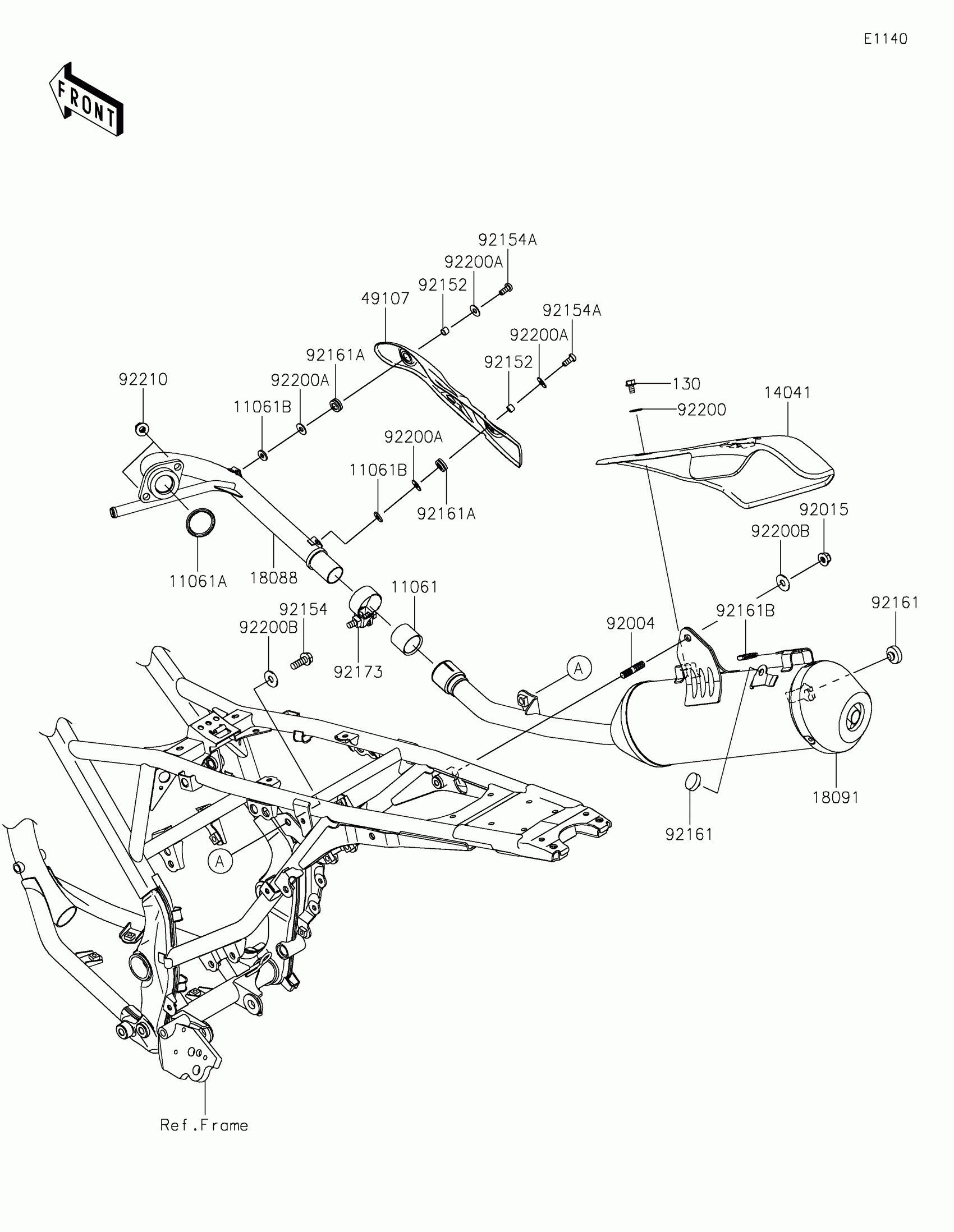

Kawasaki KLX®150L Muffler(s) Diagram

GASKET,MUFFLER JOINT

GASKET,EXHAUST PIPE

GASKET,5.8X12X1.5

BOLT-FLANGED,6X10

COVER-COMP

PIPE-EXHAUST

BODY-COMP-MUFFLER

COVER-EXHAUST PIPE

STUD,8X22

NUT,8MM

COLLAR,6.5X8.5X6

BOLT,8X16

BOLT,SOCKET,6X14

DAMPER,MUFFLER

DAMPER

DAMPER

CLAMP

WASHER,6.5X16X1.0

WASHER,6.5X16X1

WASHER,8.5X22X1.5

NUT,8MM
