2019 Kawasaki KLX®150L Kickstarter Mechanism Diagram

← All diagrams

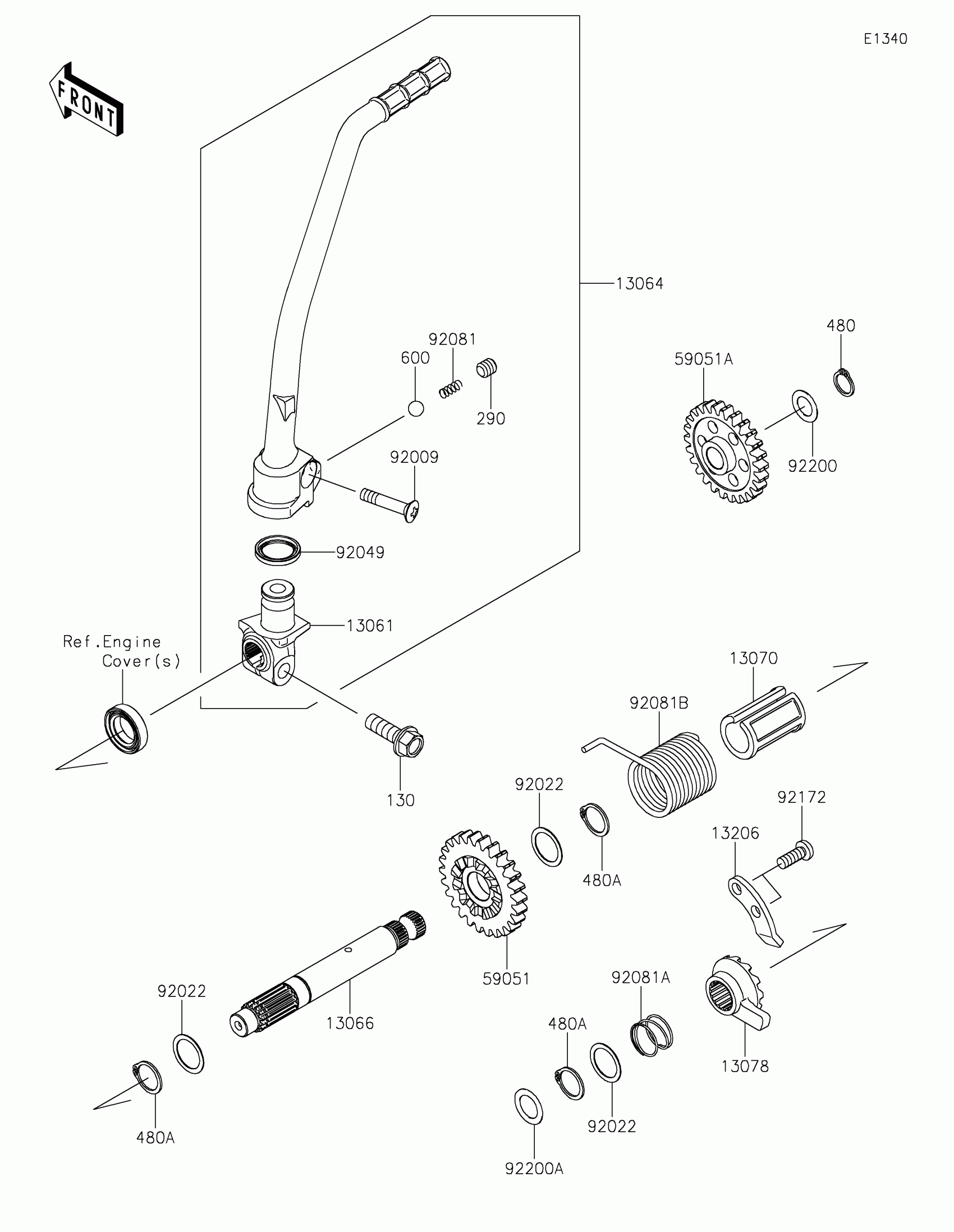

Find the part on the Kickstarter Mechanism diagram for your 2019 Kawasaki KLX®150L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki KLX®150L Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13061

BOSS

13061-0778

1
Out of stock

13064

LEVER-ASSY-KICK

13064-0074

1
Out of stock

13066

SHAFT-KICK

13066-0014

1
Out of stock

13070

GUIDE,KICK SHAFT

13070-1035

1
Out of stock

13078

RATCHET

13078-0030

1
Out of stock

13206

GUIDE-KICK

13206-1070

1
Out of stock

59051

GEAR-SPUR,KICK STARTER,26T

59051-0735

1
Out of stock

59051A

GEAR-SPUR,IDLE,26T

59051-0738

1
Out of stock

92009

SCREW,6X27

92009-1607

1
Out of stock

92022

WASHER,16.8X22X0.5

92022-315

1
Out of stock

92049

SEAL-OIL,KICK PEDAL

92049-1387

1
Out of stock

92081

SPRING,KICK PEDAL

92081-020

1
Out of stock

92081A

SPRING,RATCHET

92081-122

1
Out of stock

92081B

SPRING,KICK STARTER

92081-1276

1
Out of stock

92172

SCREW,6X16

92172-1051

1
Out of stock

92200

WASHER,12.3X20X0.5

92200-0298

1
Out of stock

92200A

WASHER,13.2X20X0.5

92200-0571

1
Out of stock

130

BOLT-FLANGED,8X25

130CA0825

1

$1.31

In stock

290

SCREW-SET-SOCKET,8X8

290CA0808

1
Out of stock

480

CIRCLIP-TYPE-C,12MM

480J1200

1
Out of stock

480A

CIRCLIP-TYPE-C,16MM

480J1600

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1
Out of stock
