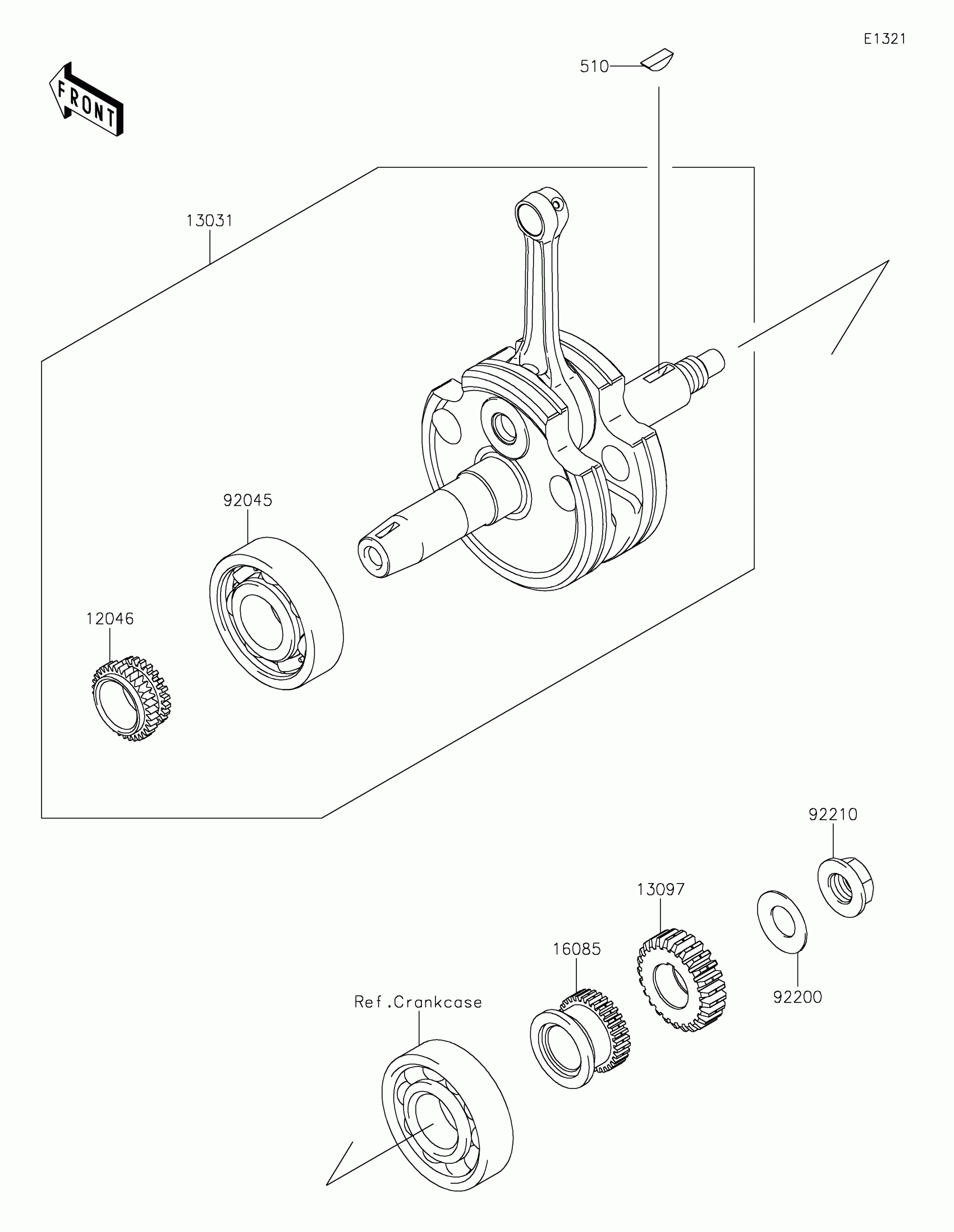

Kawasaki KLX®150L Crankshaft Diagram

#

Description
Price

12046

SPROCKET,18T

12046-0575

$37.40

13031

CRANKSHAFT-COMP

13031-0867

$559.91

13097

GEAR-PRIMARY SPUR,25T

13097-0569

$91.54

16085

GEAR,21T

16085-0607

$105.75

92045

BEARING-BALL,25X62X17

92045-0895

$45.18

92200

WASHER,14.2X28X1.5

92200-0553

$24.59

92210

NUT,14MM,LEFT HANDED

92210-0600

$12.58

510

KEY-WOODRUFF

510A4200

$2.04
