Description

Price

11056

BRACKET

11056-7216

Unavailable

11056A

BRACKET

11056-7968

$1.97

23004

LAMP-HEAD

23004-0357

Unavailable

23008

SOCKET-ASSY,HEAD LAMP

23008-0173

$82.89

23008A

SOCKET-ASSY,POSITION LAMP

23008-0174

$91.19

39137

STAY-COMP,HEAD LAMP

39137-0674

Unavailable

39156

PAD,35X110

39156-1764

$14.76

39156A

PAD,10X260X7

39156-1857

Unavailable

55022B

COVER-HEAD LAMP,B.WHITE

55022-5344-266

$149.96

55022C

COVER-HEAD LAMP,EBONY

55022-5352-6C

$149.96

92022

WASHER,PLAIN,6.5X20X1

92022-165

$3.74

92069

BULB,12V 5W

92069-0059

Unavailable

92069A

BULB,12V35/35W

92069-0086

$35.53

92072

BAND,L=220

92072-0044

Unavailable

92143

COLLAR

92143-1353

$8.58

92145

SPRING

92145-1645

Unavailable

92152

COLLAR

92152-0295

$5.65

92153

BOLT,SOCKET,6X22

92153-0574

$2.61

92160

DAMPER,10X20X12

92160-1167

$4.69

92161

DAMPER,10X18X7.5

92161-1535

$1.78

92161A

DAMPER,7.5X22X11

92161-1536

$5.65

92161B

DAMPER

92161-1821

Unavailable

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92172A

SCREW,5X70

92172-0909

Unavailable

92173

CLAMP

92173-1424

Unavailable

92200

WASHER,5.2X13X1

92200-1694

Unavailable

132

BOLT-FLANGED-SMALL,6X18

132BC0618

$2.15

235

SCREW-PAN-WP-CROS,5X12

235AA0512

$4.45

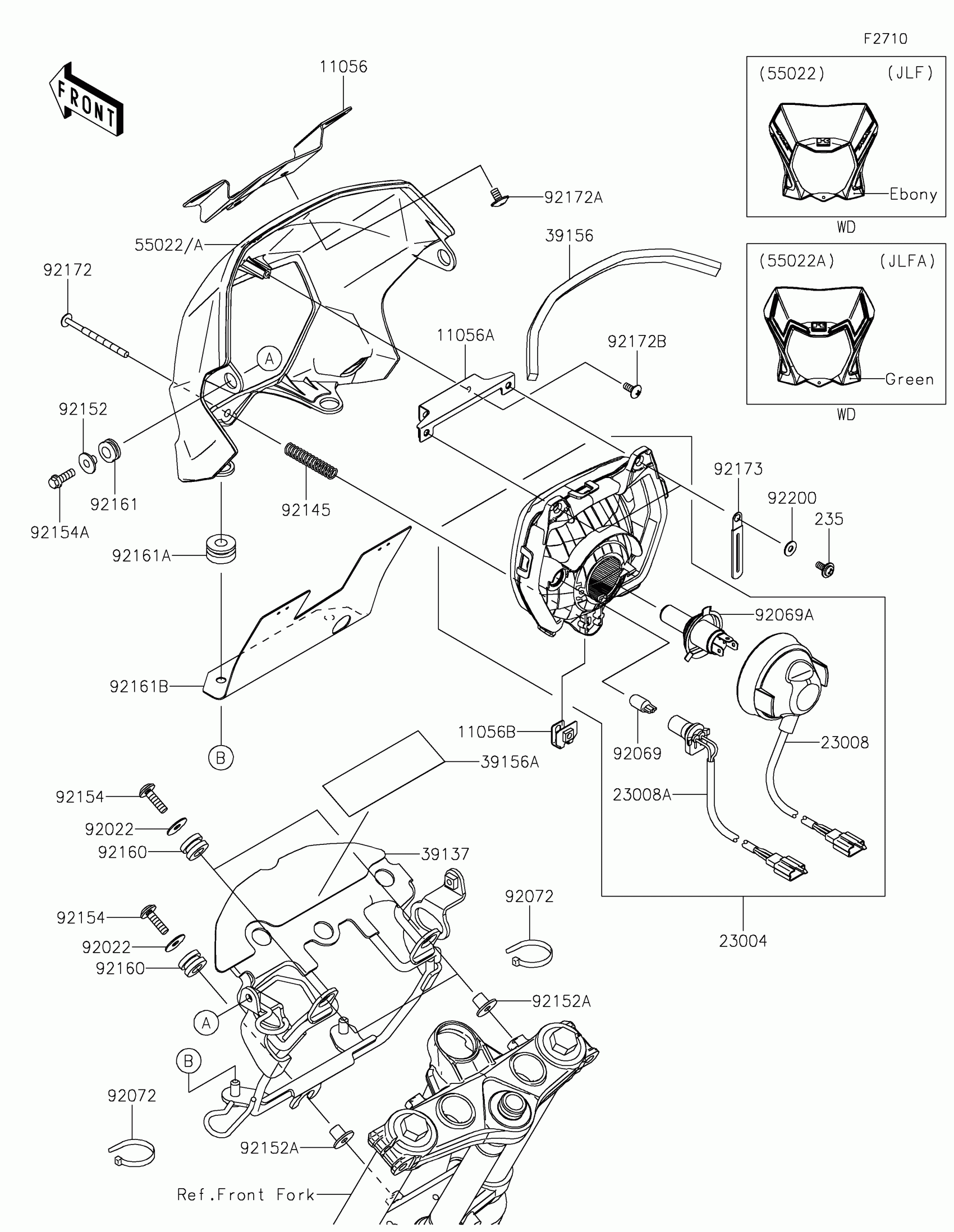

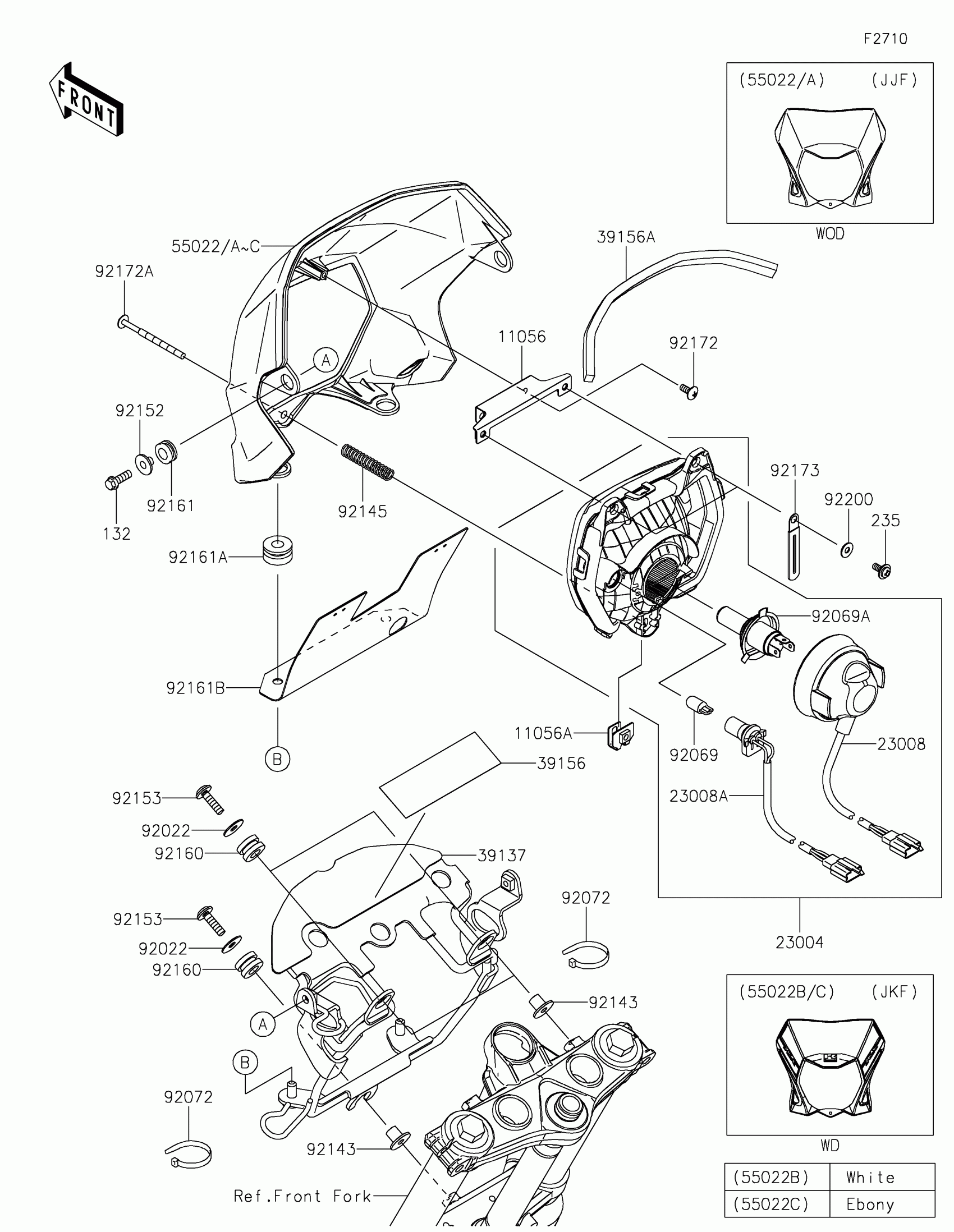

Kawasaki KLX®150L Headlight(s) Diagram

BRACKET

BRACKET

LAMP-HEAD

SOCKET-ASSY,HEAD LAMP

SOCKET-ASSY,POSITION LAMP

STAY-COMP,HEAD LAMP

PAD,35X110

PAD,10X260X7

COVER-HEAD LAMP,B.WHITE

COVER-HEAD LAMP,EBONY

WASHER,PLAIN,6.5X20X1

BULB,12V 5W

BULB,12V35/35W

BAND,L=220

COLLAR

SPRING

COLLAR

BOLT,SOCKET,6X22

DAMPER,10X20X12

DAMPER,10X18X7.5

DAMPER,7.5X22X11

DAMPER

SCREW,TAPPING,5X10

SCREW,5X70

CLAMP

WASHER,5.2X13X1

BOLT-FLANGED-SMALL,6X18

SCREW-PAN-WP-CROS,5X12
