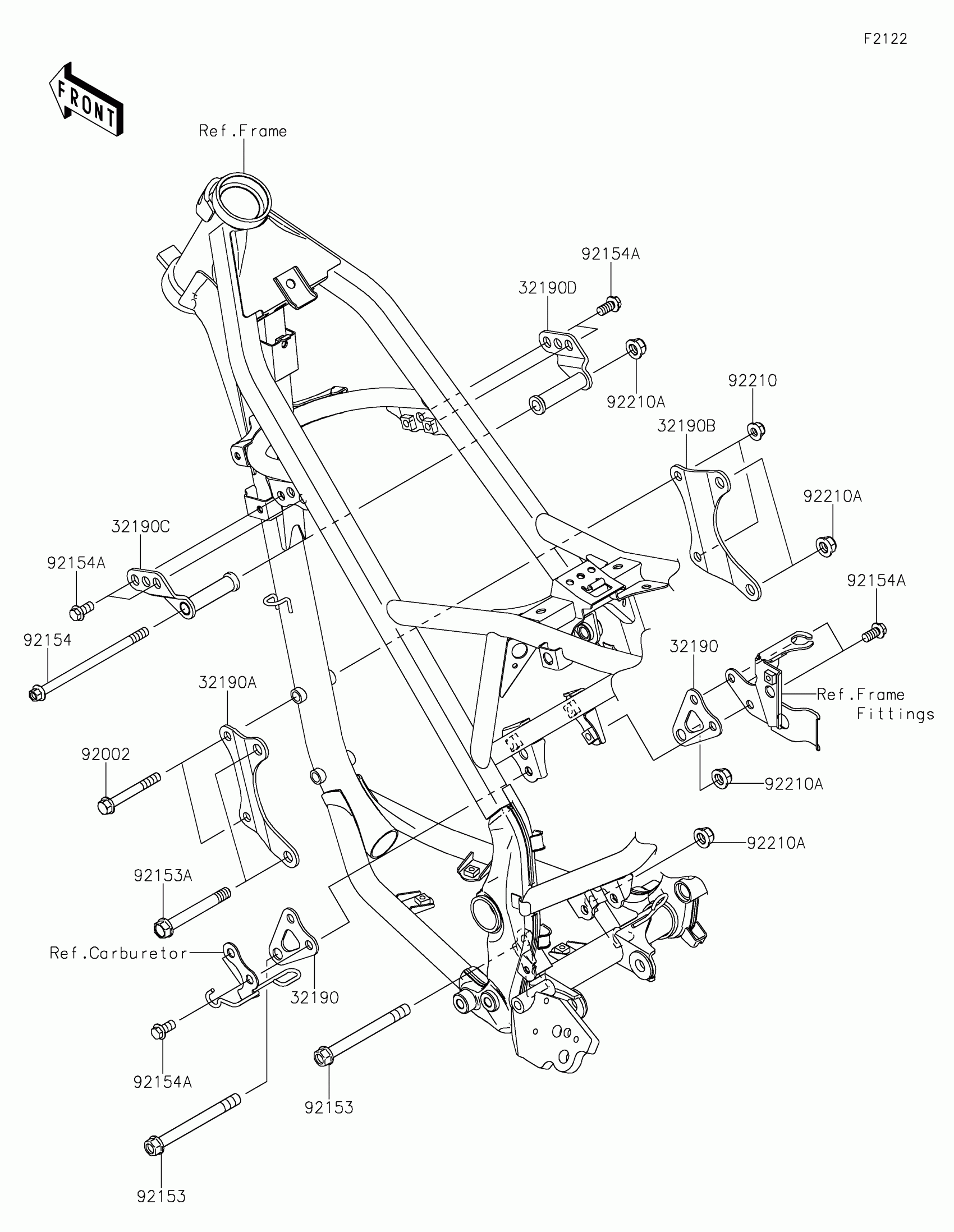

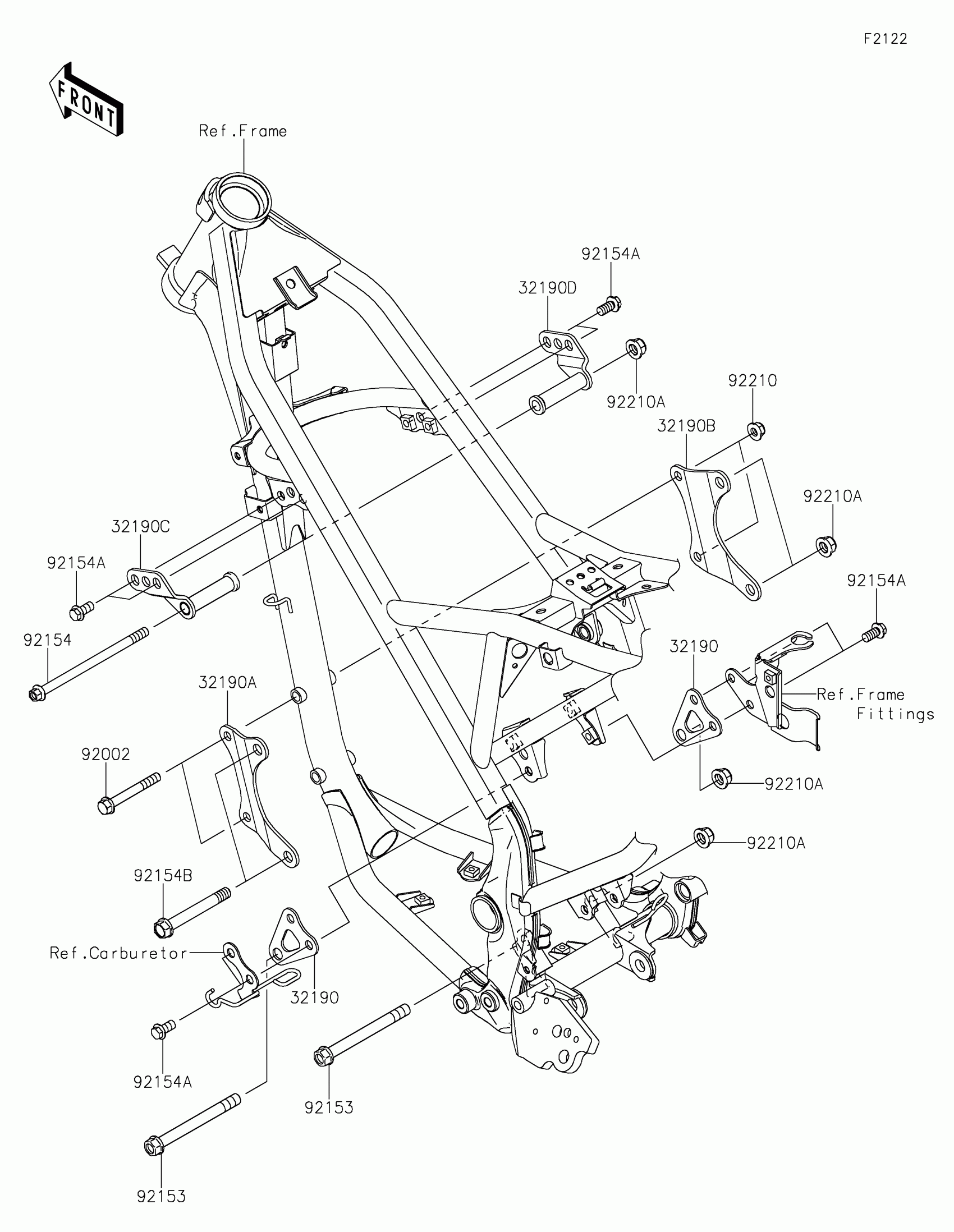

Kawasaki KLX®150L Engine Mount Diagram

Description

Price

32190

BRACKET-ENGINE,RR

32190-0310

$5.65

32190A

BRACKET-ENGINE,FR,LH

32190-0429

$25.16

32190B

BRACKET-ENGINE,FR,RH

32190-0430

$25.16

32190C

BRACKET-ENGINE,HEAD,LH

32190-0437

$7.24

32190D

BRACKET-ENGINE,HEAD,RH

32190-0439

$7.24

92002

BOLT,FLANGED,8X65

92002-1349

Unavailable

92153

BOLT,FLANGED,10X105

92153-0614

$8.58

92154

BOLT,FLANGED,10X170

92154-0088

$14.90

92154A

BOLT,FLANGED,8X16

92154-0462

$7.65

92154B

BOLT,FLANGED,10X80

92154-3759

$9.75

92210

NUT,LOCK,FLANGED,8MM

92210-0140

$2.58

92210A

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28
