2020 Kawasaki KLX®150L Decals Diagram

← All diagrams

Find the part on the Decals diagram for your 2020 Kawasaki KLX®150L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

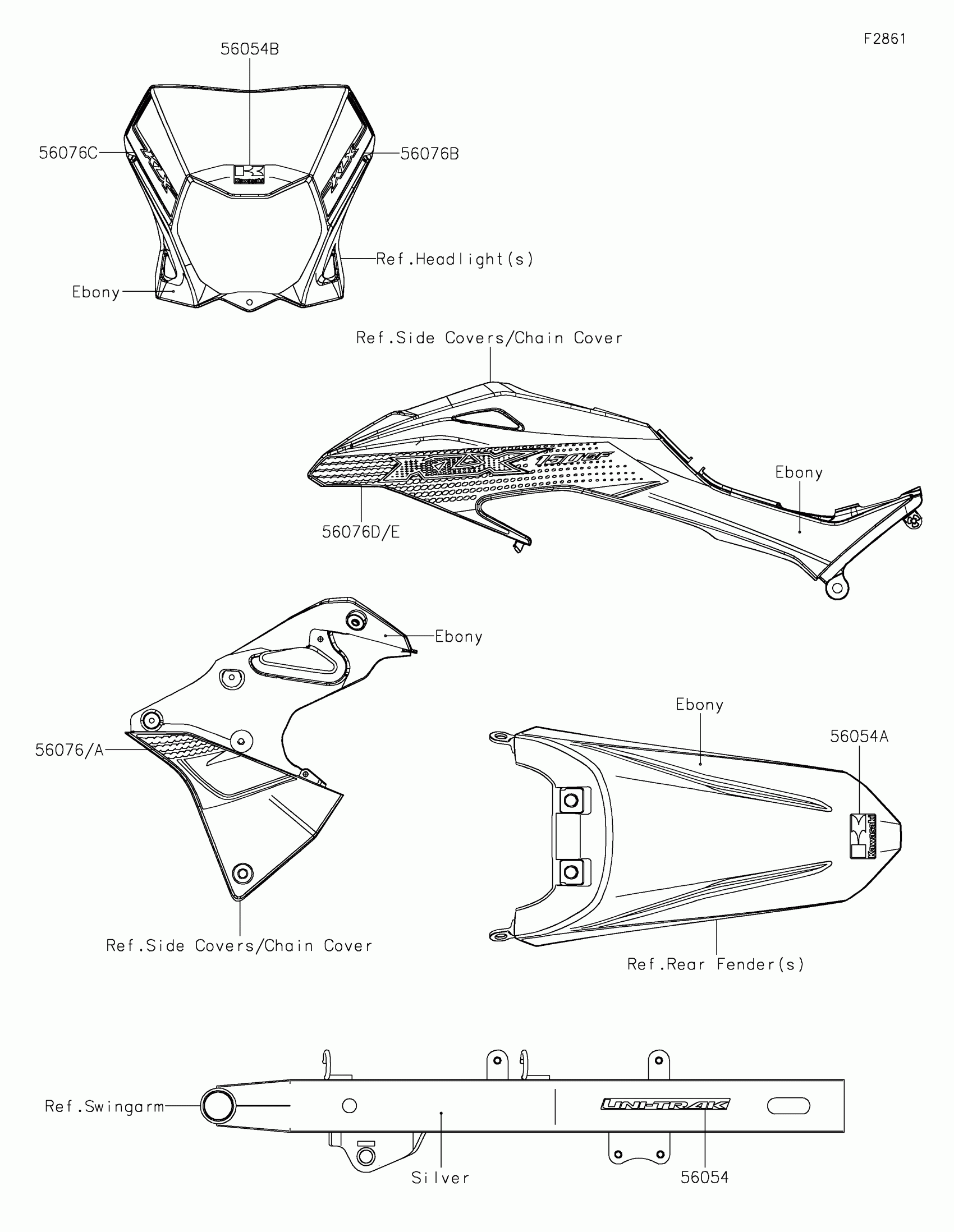

2020 Kawasaki KLX®150L Decals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56054

MARK,UNI-TRAK

56054-1540

1
Out of stock

56054A

MARK,RR FENDER,K

56054-2453

1
Out of stock

56054B

MARK,HEAD LAMP COVER,K

56054-2454

1
Out of stock

56076

PATTERN,SHROUD,LH,LWR

56076-0055

1
Out of stock

56076A

PATTERN,SHROUD,RH,LWR

56076-0056

1
Out of stock

56076B

PATTERN,HEAD LAMP COVER,LH

56076-0059

1
Out of stock

56076C

PATTERN,HEAD LAMP COVER,RH

56076-0060

1
Out of stock

56076D

PATTERN,SHROUD,LH,UPP

56076-0141

1
Out of stock

56076E

PATTERN,SHROUD,RH,UPP

56076-0142

1
Out of stock
