2019 Kawasaki KLX®150L Frame Fittings Diagram

← All diagrams

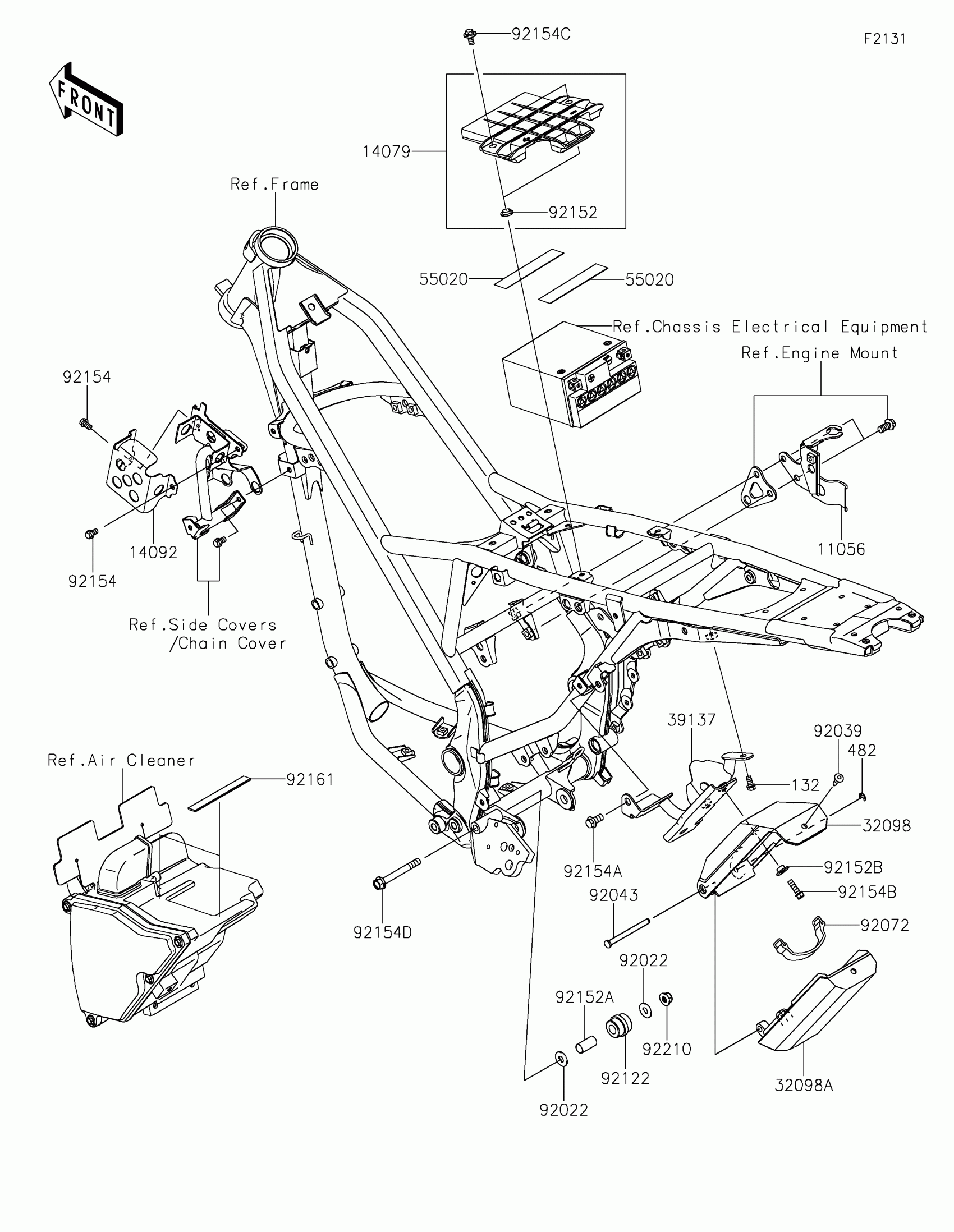

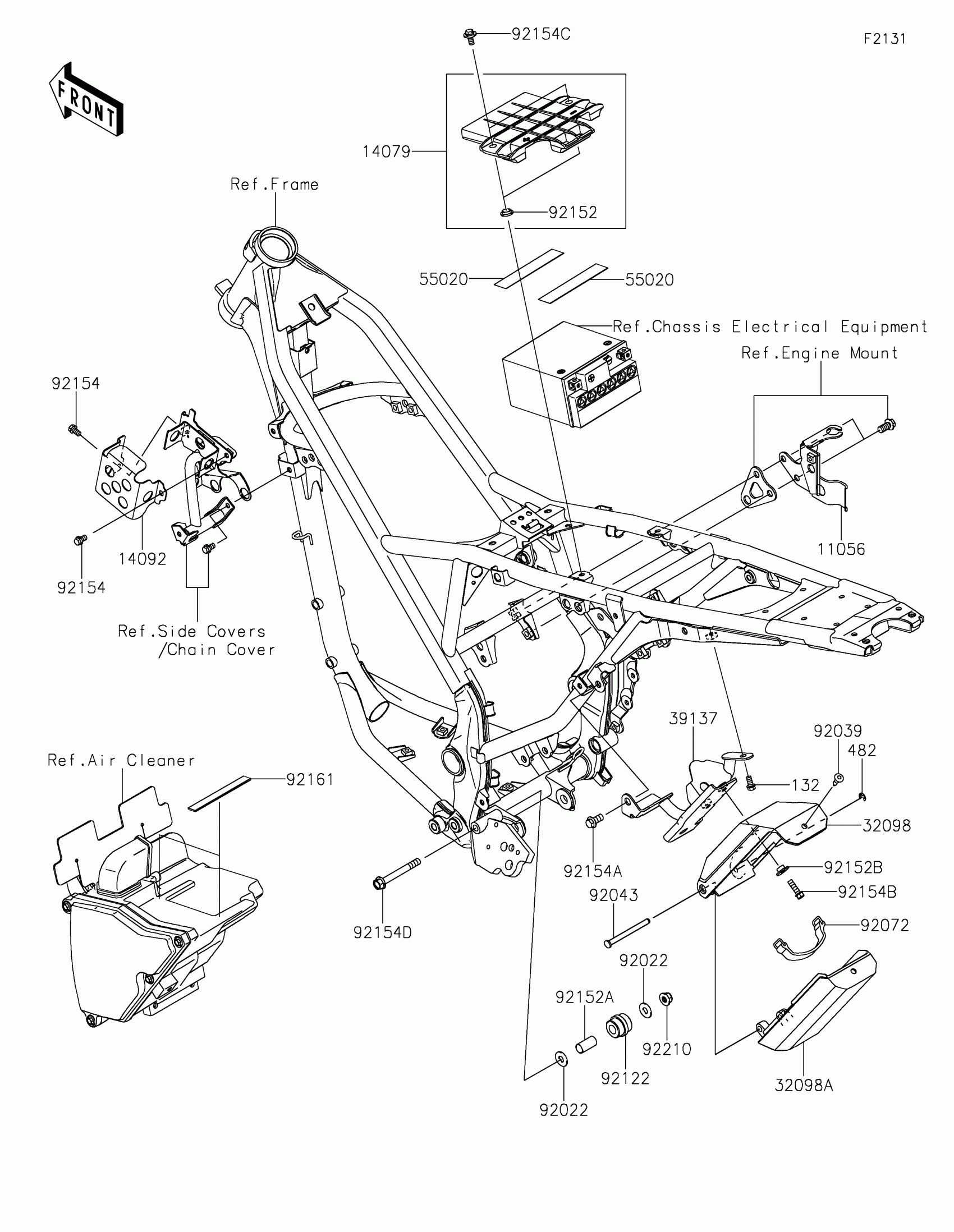

Find the part on the Frame Fittings diagram for your 2019 Kawasaki KLX®150L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki KLX®150L Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,RESERVOIR

11056-7776

1
Out of stock

14079

HOLDER-ASSY,BATTERY

14079-0031

1

$35.84

In stock

14092

COVER,IGNITER

14092-0035

1
Out of stock

32098

CASE-TOOL,BASE

32098-0022

1
Out of stock

32098A

CASE-TOOL,COVER

32098-0024

1
Out of stock

39137

STAY-COMP,TOOL CASE

39137-0668

1

$69.42

In stock

55020

GUARD

55020-0594

1

$4.49

In stock

92022

WASHER,8.5X20X1.6

92022-1561

1
Out of stock

92039

RIVET

92039-0709

1
Out of stock

92043

PIN

92043-0834

1
Out of stock

92072

BAND

92072-0738

1
Out of stock

92122

ROLLER,GUIDE CHAIN

92122-0041

1
Out of stock

92152

COLLAR,8.8X11.2X4

92152-0909

1
Out of stock

92152A

COLLAR,9.5X12.5X25

92152-1881

1
Out of stock

92152B

COLLAR,6.8X10X6.6

92152-1978

1
Out of stock

92154

BOLT,FLANGED,6X10

92154-0459

1
Out of stock

92154A

BOLT,FLANGED,8X16

92154-0462

1
Out of stock

92154B

BOLT,FLANGED,6X16

92154-1157

1
Out of stock

92154C

BOLT,FLANGED,6X14

92154-1231

1
Out of stock

92154D

BOLT,FLANGED,8X80

92154-1355

1
Out of stock

92161

DAMPER

92161-0838

1
Out of stock

92210

NUT,LOCK,FLANGED,8MM

92210-0140

1
Out of stock

132

1

$1.12

In stock

482

CIRCLIP-TYPE-E

482EA5000

1
Out of stock
