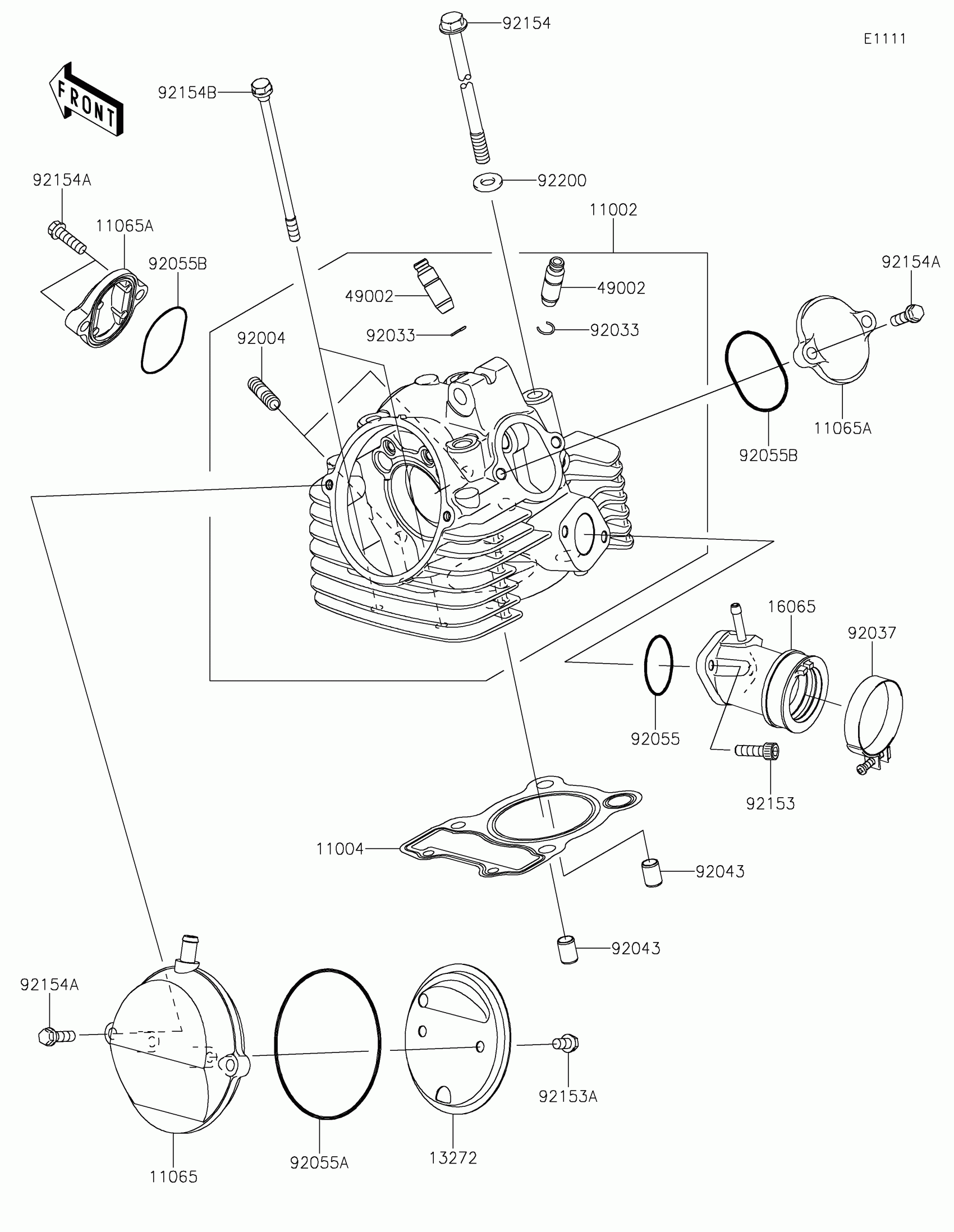

Kawasaki KLX®150L Cylinder Head Diagram

Description

Price

11002

HEAD-ASSY-CYLINDER

11002-0126

Unavailable

11004

GASKET-HEAD

11004-0751

Unavailable

11065

CAP

11065-0799

$55.25

11065A

CAP,VALVE,ADJUSTING

11065-0800

$23.43

13272

PLATE,BREATHER

13272-2504

$1.59

16065

HOLDER-CARBURETOR

16065-0061

$52.08

49002

GUIDE-VALVE

49002-0019

$20.75

92004

STUD,8X22

92004-0722

$5.64

92033

RING-SNAP

92033-0789

$3.91

92037

CLAMP

92037-1305

$9.06

92043

PIN,8.2X10X14

92043-0100

$3.71

92055

RING-O,32X1.9

92055-0191

$13.41

92055A

RING-O,86X1.9

92055-0202

$7.24

92055B

RING-O

92055-1697

$10.30

92153

BOLT,6X20

92153-0481

$0.79

92153A

BOLT,6X10

92153-1140

$0.67

92154

BOLT,FLANGED,8X201

92154-1155

$6.61

92154A

BOLT,FLANGED,6X20

92154-1219

$2.49

92154B

BOLT,FLANGED,6X110

92154-3751

$8.98

92200

WASHER,8.2X17X2.3

92200-1631

$0.49
