Description

Price

13086

WHEEL-CLUTCH

13086-1070

$29.34

13087

HUB-CLUTCH

13087-1161

$40.59

13088

PLATE-FRICTION

13088-0040

$12.41

13088A

PLATE-FRICTION

13088-0041

$12.41

13088B

PLATE-FRICTION,ID=100

13088-1077

$14.56

13089

PLATE-CLUTCH

13089-1108

$2.95

13091

HOLDER,CLUTCH SPRING

13091-1920

$39.41

13095

HOUSING-COMP-CLUTCH

13095-0571

$183.12

13116

ROD-PUSH

13116-0706

$12.37

13183

PLATE

13183-1274

$10.09

13236

LEVER-COMP,CLUTCH RELEASE

13236-0174

$32.37

601

BEARING-BALL

601A6000

$12.89

92026

SPACER

92026-0853

$2.70

92139

BUSHING,17X22X30

92139-0871

$22.80

92144

SPRING,CLUTCH

92144-1289

$19.39

92145

SPRING

92145-0861

$6.57

92153

BOLT,6X25

92153-1067

$2.15

92154

BOLT,FLANGED,10X36

92154-1056

$3.72

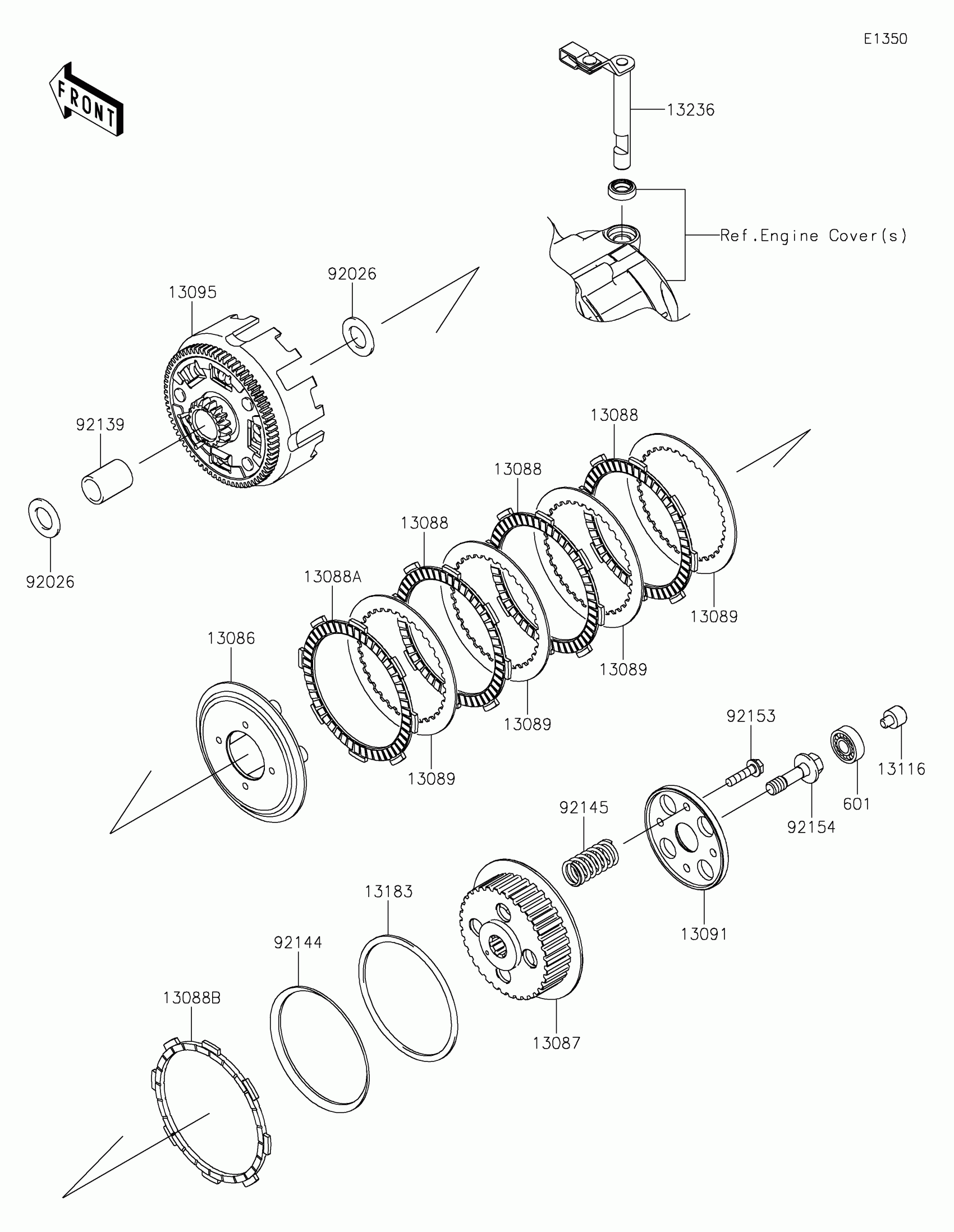

Kawasaki KLX®150L Clutch Diagram

WHEEL-CLUTCH

HUB-CLUTCH

PLATE-FRICTION

PLATE-FRICTION

PLATE-FRICTION,ID=100

PLATE-CLUTCH

HOLDER,CLUTCH SPRING

HOUSING-COMP-CLUTCH

ROD-PUSH

PLATE

LEVER-COMP,CLUTCH RELEASE

BEARING-BALL

SPACER

BUSHING,17X22X30

SPRING,CLUTCH

SPRING

BOLT,6X25

BOLT,FLANGED,10X36
