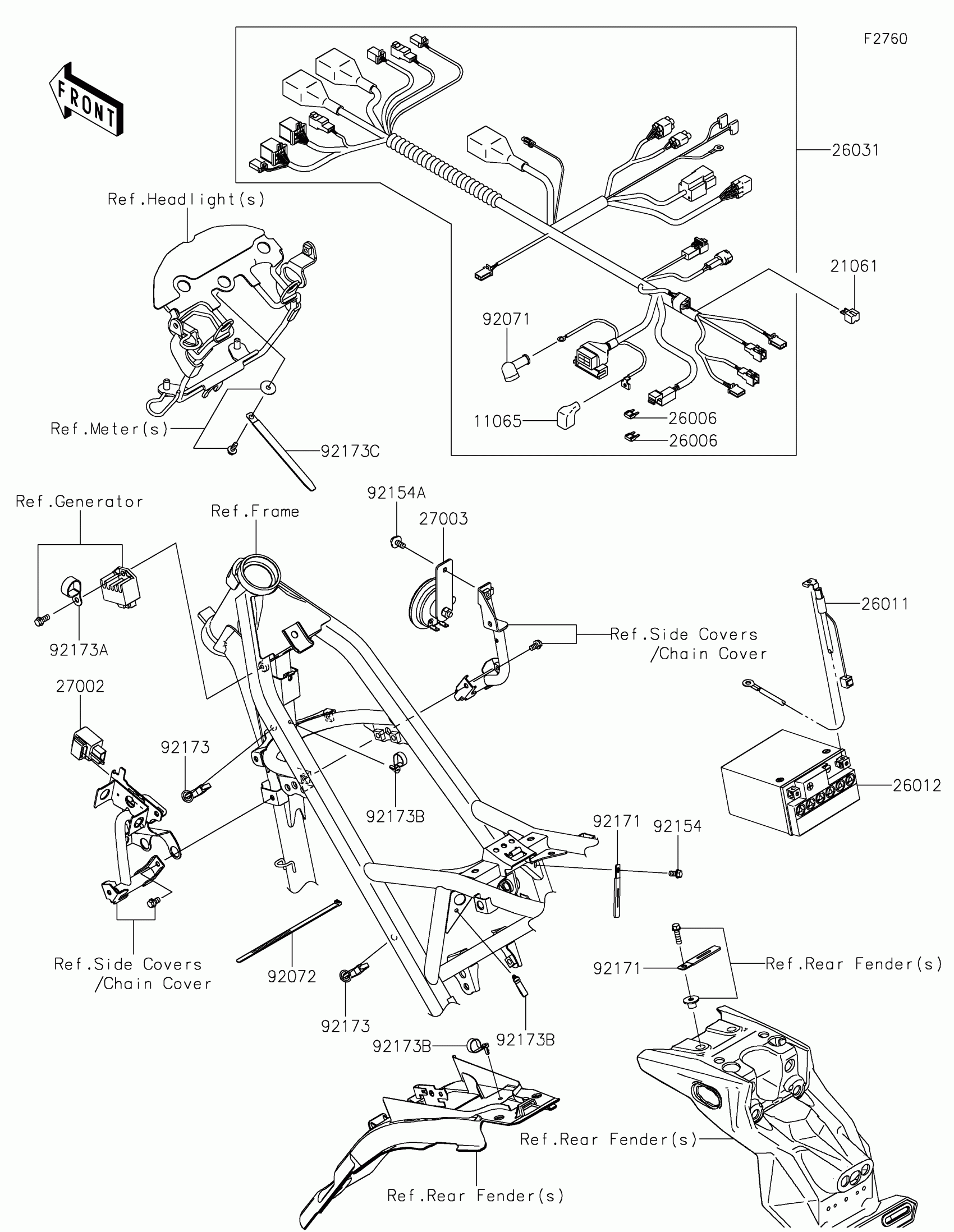

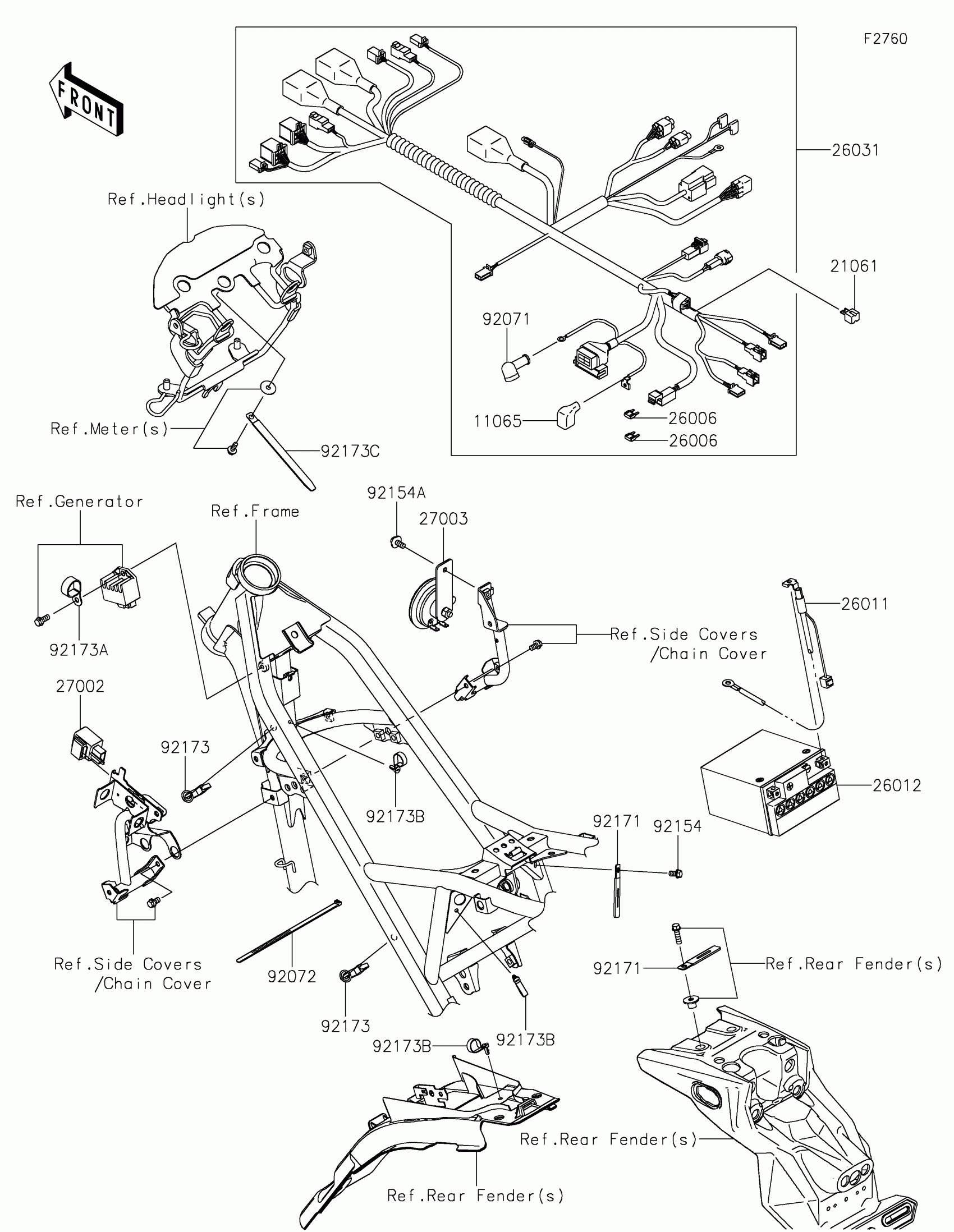

Kawasaki KLX®150L Chassis Electrical Equipment Diagram

Description

Price

11065

CAP

11065-0237

$3.56

21061

RECTIFIER

21061-1003

$29.60

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26011

WIRE-LEAD,BATTERY(-)

26011-0154

$27.22

26012

BATTERY,YTX7L-BS,12V 6AH

26012-0669

Unavailable

26031

HARNESS,MAIN

26031-1836

Unavailable

27002

RELAY-ASSY,SIGNAL LAMP

27002-1097

$47.41

27003

HORN

27003-0134

$81.16

92071

GROMMET

92071-0707

$6.89

92072

BAND,L=202

92072-1195

$1.56

92154

BOLT,FLANGED,6X10

92154-0459

$7.65

92154A

BOLT,FLANGED,6X14

92154-1231

$2.97

92171

CLAMP,WIRING HARNESS,L=60

92171-1425

$1.86

92173

CLAMP

92173-0105

$5.05

92173A

CLAMP,THROTTLE CABLE

92173-1069

$8.30

92173B

CLAMP,SPEED,L=58

92173-1077

$6.57

92173C

CLAMP,L=150

92173-1078

$7.45
