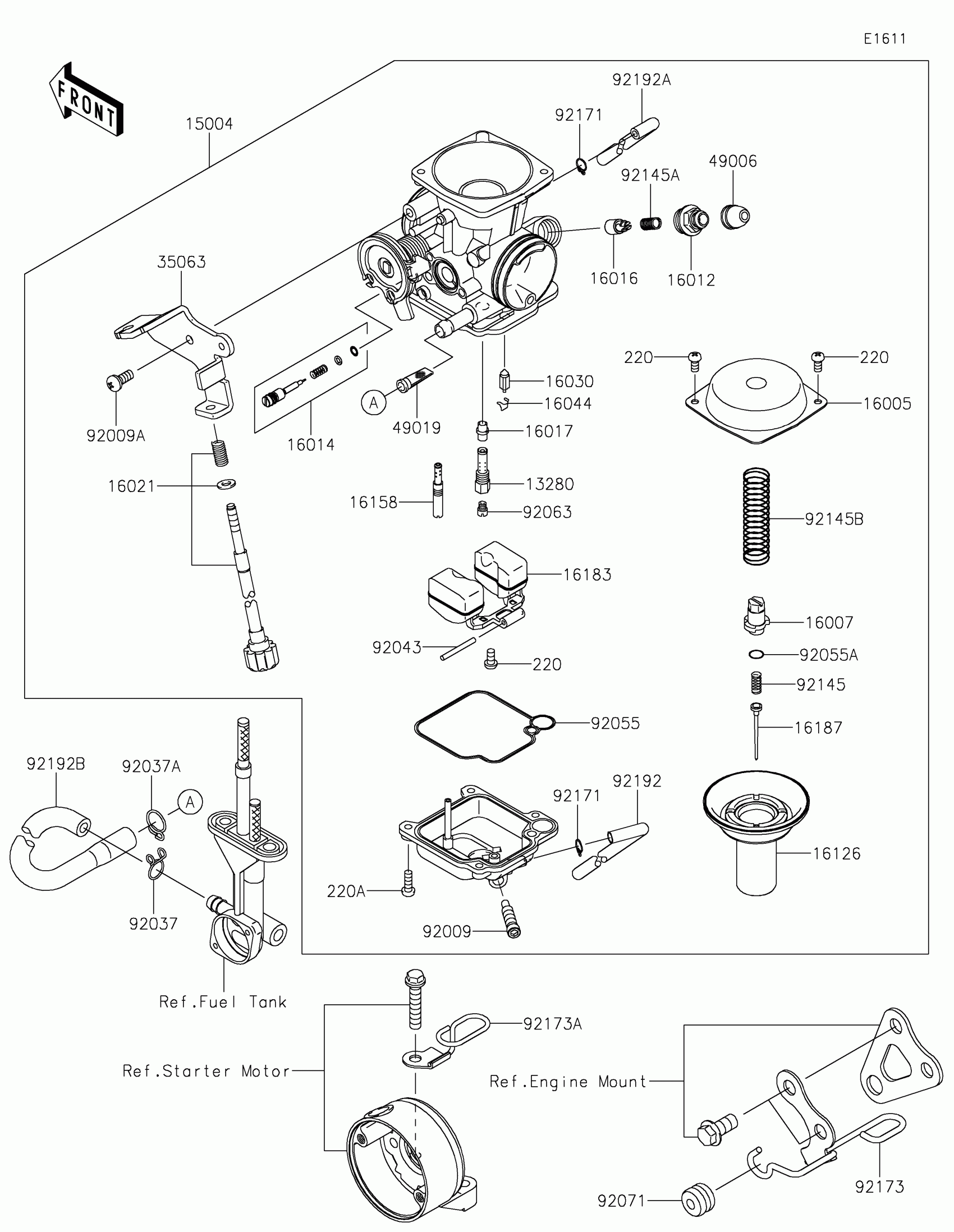

Kawasaki KLX®150L Carburetor Diagram

#

Description
Price

13280

HOLDER

13280-0235

$8.60

15004

CARBURETOR-ASSY

15004-0911

Unavailable

16005

TOP-CHAMBER

16005-0003

$8.30

16007

SEAT-SPRING

16007-0020

$8.30

16012

CAP-STARTER PLUNGER

16012-0003

$11.61

16014

SCREW-PILOT AIR

16014-0016

$14.12

16016

PLUNGER,STARTER

16016-0014

$17.10

16017

JET-NEEDLE

16017-0017

$14.00

16021

SCREW-THROTTLE STOP

16021-0022

$11.38

16030

VALVE-FLOAT

16030-0005

$50.19

16044

CLAMP,FLOAT VALVE

16044-007

$7.91

16126

VALVE

16126-0020

$68.20

16158

JET-SLOW

16158-0007

$82.29

16183

FLOAT-ASSY

16183-0004

$23.99

16187

NEEDLE-JET

16187-0573

Unavailable

35063

STAY

35063-0684

$22.60

49006

BOOT

49006-0039

$6.89

49019

FILTER-FUEL

49019-1097

$9.23

92009

SCREW,DRAIN,M6X0.75

92009-1551

$9.91

92009A

SCREW,PLATE

92009-1865

$2.38

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP

92037-1935

$5.38

92043

PIN,FLOAT

92043-1207

$11.14

92055

RING-O,CHAMBER GASKET

92055-0084

$16.92

92055A

RING-O

92055-1223

$5.52

92063

JET-MAIN,#112

92063-0020

$15.45

92071

GROMMET

92071-0038

$3.87

92145

SPRING

92145-0309

$5.25

92145A

SPRING,COIL

92145-0313

$12.82

92145B

SPRING

92145-0936

$18.72

92171

CLAMP

92171-0494

$4.92

92173

CLAMP

92173-1066

$5.38

92173A

CLAMP

92173-1430

Unavailable

92192

TUBE

92192-0233

$14.26

92192A

TUBE

92192-0876

$8.12

92192B

TUBE,TAP-ASSY-CARBURETOR

92192-1726

$6.57

220

SCREW-PAN-CROS,4X8

220AA0408

$0.68

220A

SCREW-PAN-CROS,4X12

220AA0412

$0.21
