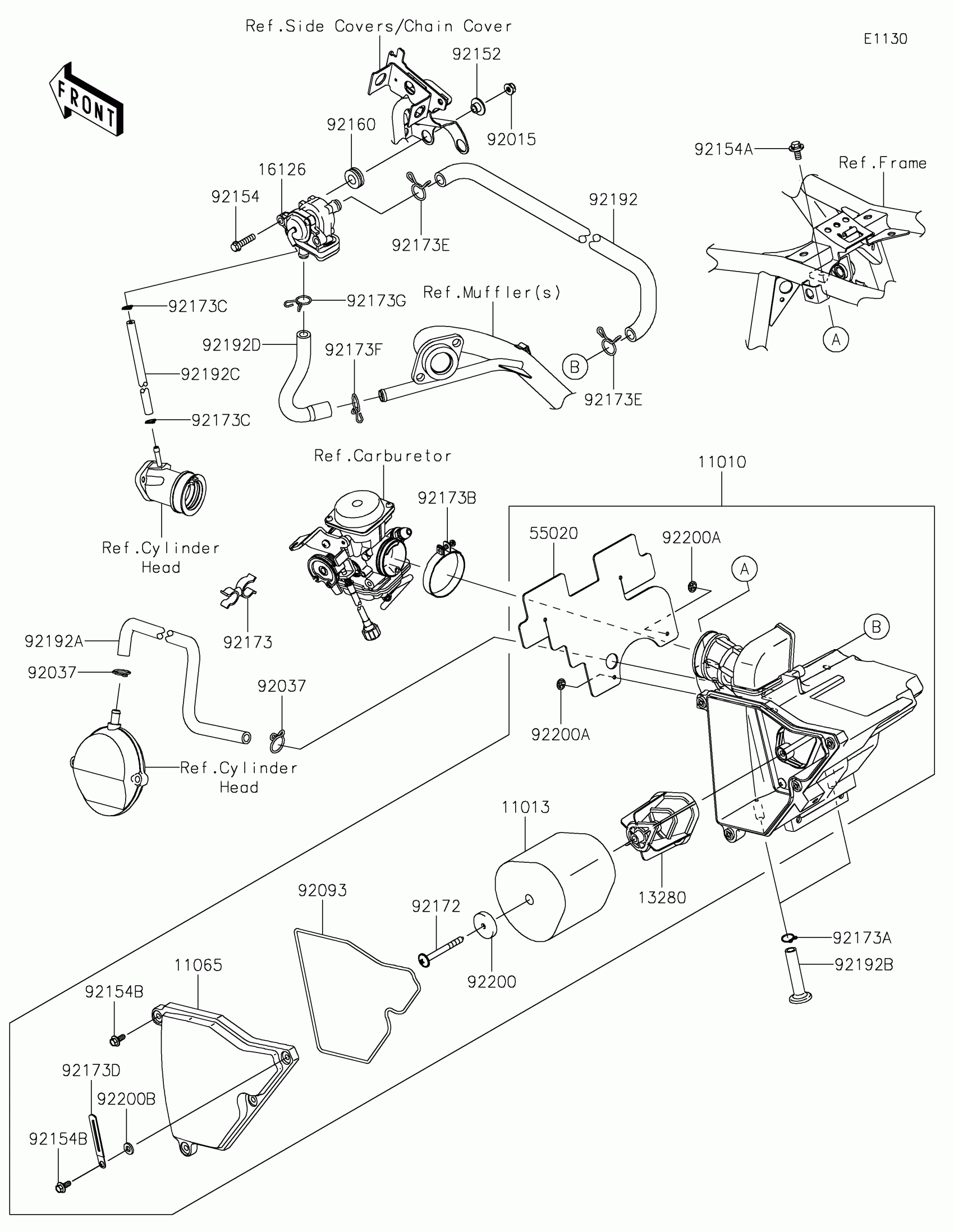

Kawasaki KLX®150L Air Cleaner Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-0830

Unavailable

11013

ELEMENT-AIR FILTER

11013-0796

$9.48

11065

CAP

11065-0895

$18.26

13280

HOLDER

13280-0831

$30.76

16126

VALVE,AIR SWITCH

16126-0715

$115.92

55020

GUARD

55020-1861

$17.74

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP,12.5MM

92037-1271

$2.79

92093

SEAL

92093-0655

Unavailable

92152

COLLAR

92152-0854

$2.58

92154

BOLT,FLANGED,6X25

92154-1156

$1.97

92154A

BOLT,FLANGED,6X14

92154-1231

$2.97

92154B

BOLT,FLANGED,5X14

92154-1637

$3.90

92160

DAMPER

92160-1278

$4.39

92172

SCREW,6X60

92172-0915

$10.21

92173

CLAMP

92173-0081

$5.38

92173A

CLAMP,11.6MM

92173-0179

$1.17

92173B

CLAMP

92173-1104

$3.60

92173C

CLAMP

92173-1190

$2.55

92173D

CLAMP

92173-1424

Unavailable

92173E

CLAMP

92173-1563

$5.93

92173F

CLAMP

92173-1879

$1.71

92173G

CLAMP

92173-1880

$3.74

92192

TUBE,ASV-AIR CLEANER

92192-0474

$14.12

92192A

TUBE,BREATHER

92192-0839

$19.36

92192B

TUBE,A/C-DRAIN

92192-0943

$3.21

92192C

TUBE,CARB. HOLDER-ASV

92192-1242

$15.42

92192D

TUBE,ASV-EX PIPE

92192-1337

$11.12

92200

WASHER

92200-1692

$3.39

92200A

WASHER

92200-1693

$1.97

92200B

WASHER

92200-1695

$5.65
