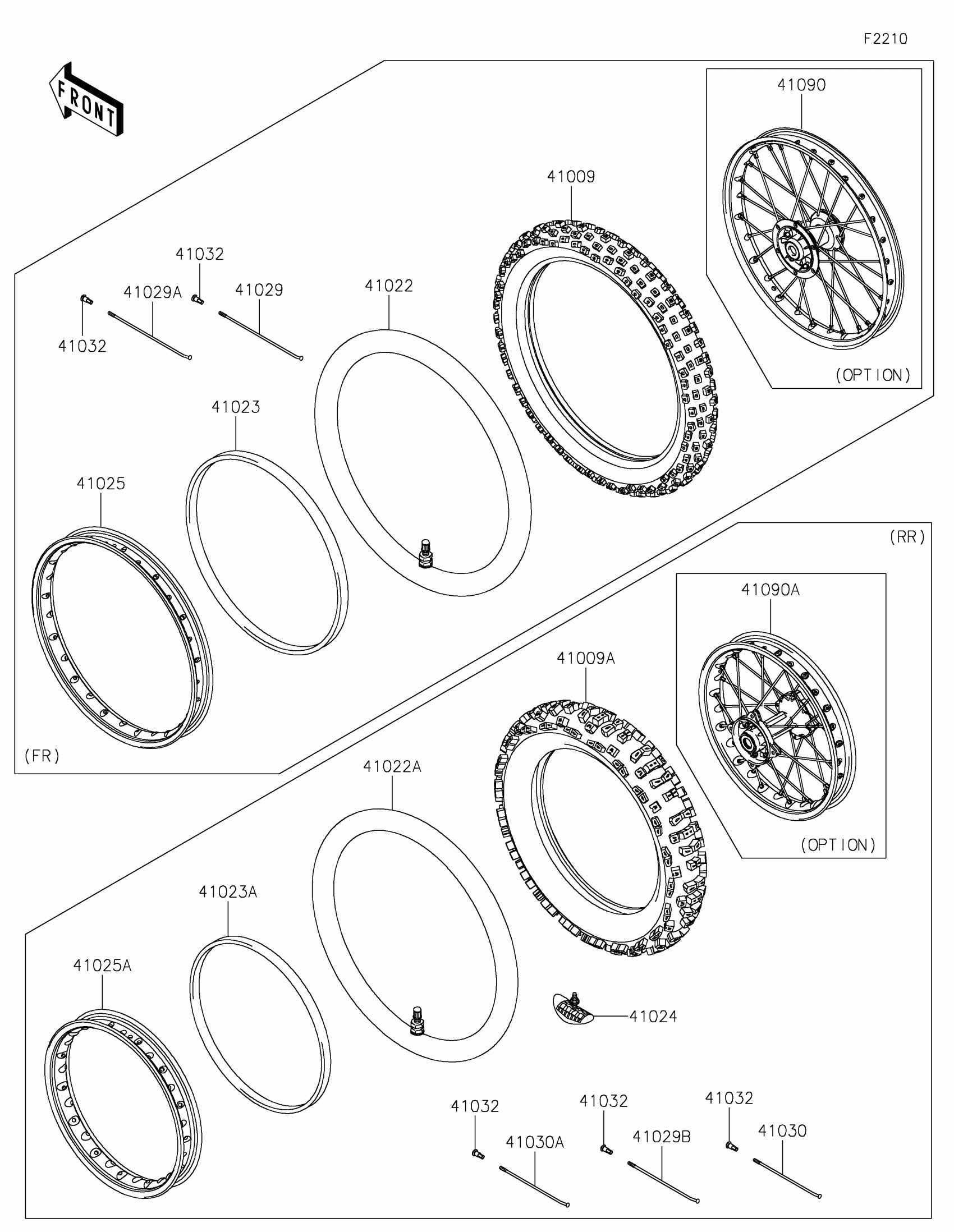

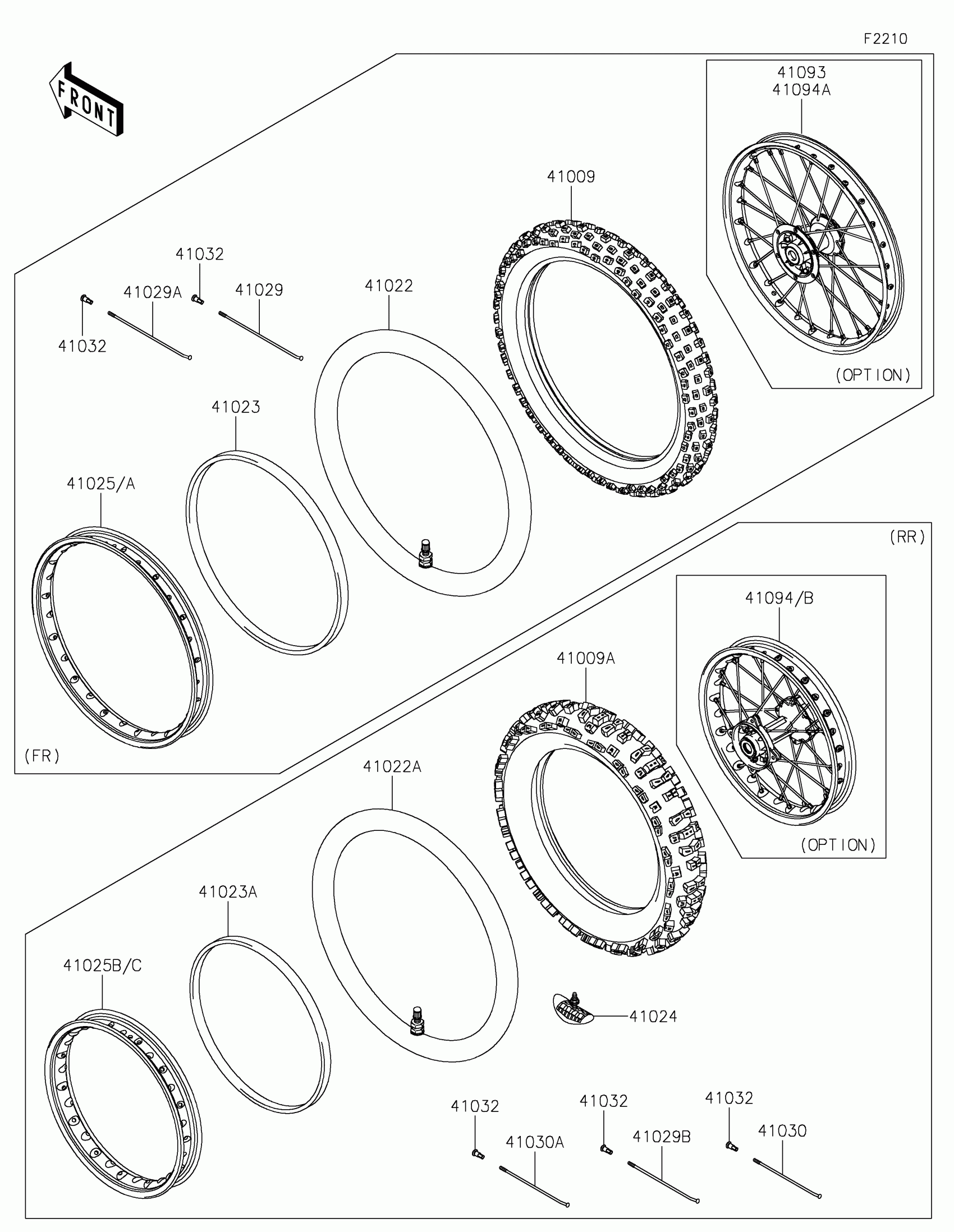

Kawasaki KLX®140R Wheels/Tires Diagram

TIRE,70/100-17 40M,IX05H

41009-0873

$140.12

TIRE,90/100-14 49M,IX05H

41009-0874

$184.94

TUBE-TIRE,70/100-17

41022-0127

$29.79

TUBE-TIRE,90/100-14

41022-0128

$34.36

BAND-RIM,70/100-17

41023-0011

$15.30

BAND-RIM,90/100-14

41023-0012

$15.30

STOPPER-RIM,1.60-M(DUNLOP)

41024-010

$51.74

RIM,1.40X17,BLACK

41025-0426-WC

$338.82

RIM,1.60X14,BLACK

41025-0427-WC

$338.82

SPOKE-INNER,FR,RH,187MMX166D

41029-0041

$4.06

SPOKE-INNER,FR,LH,183MMX166D

41029-0042

$4.06

SPOKE-INNER,RR,157MMX170D

41029-0043

$4.06

SPOKE-OUTER,RR,RH,149MMX172D

41030-0013

$4.06

SPOKE-OUTER,RR,LH,153MMX172D

41030-0014

$4.06

NIPPLE-SPOKE

41032-0010

$3.53

WHEEL,FR,1.40X17,BLACK

41094-0014-WC

$803.86

WHEEL,RR,1.60X14,BLACK

41094-0015-WC

$874.82
