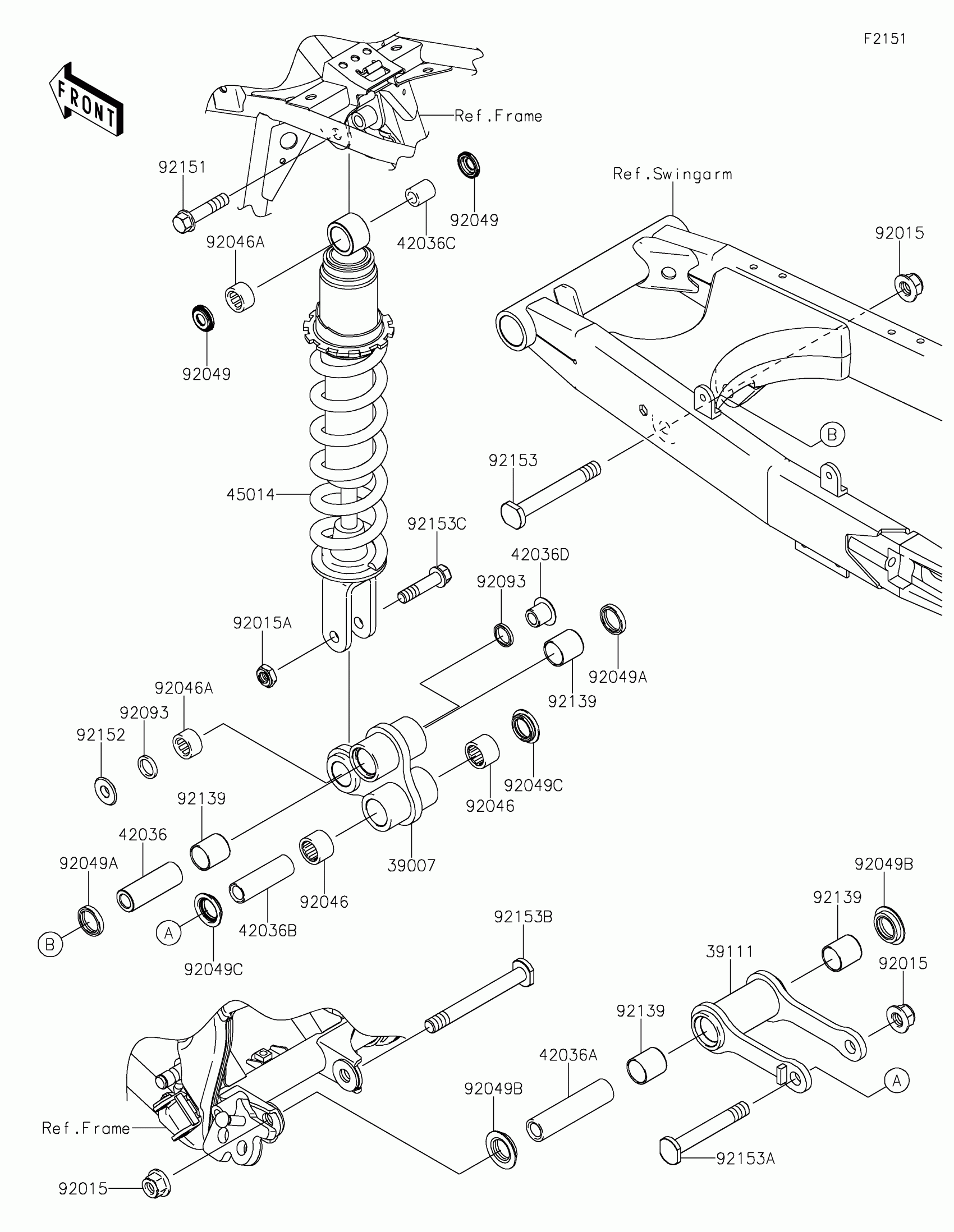

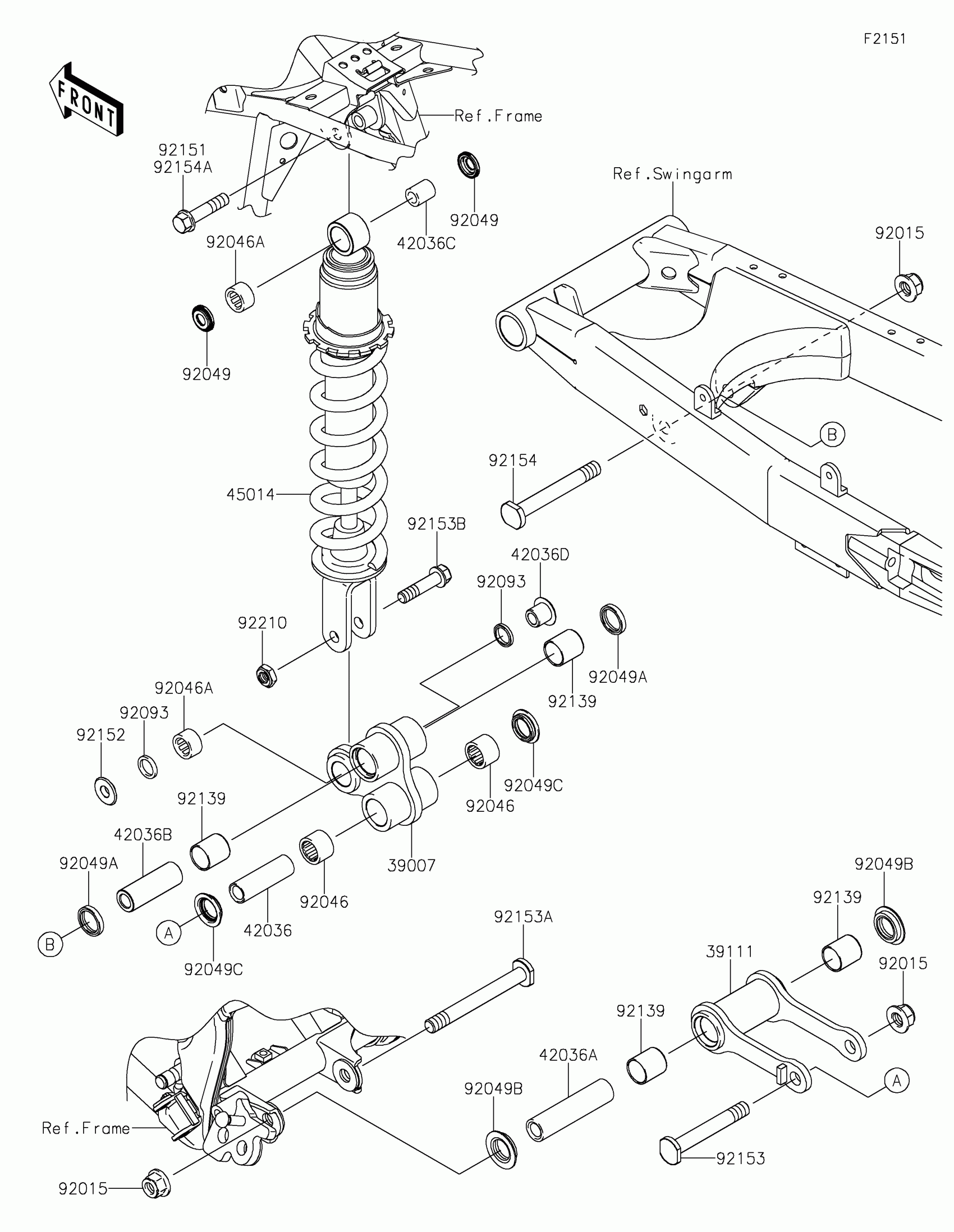

Kawasaki KLX®140R Suspension/Shock Absorber Diagram
#
Description
Price
39007
ARM-SUSP,UNI TRAK,P.SILVER
39007-0141-458
$132.09
39111
ROD-TIE,SUSPENSION,P.SILVER
39111-0062-458
$103.84
42036
SLEEVE,12.1X18X58
42036-0827
$22.01
42036A
SLEEVE,12.1X20X82.6
42036-0857
$29.59
42036B
SLEEVE,12.1X20X58
42036-0876
$22.01
42036C
SLEEVE,10X16X19
42036-1248
$9.91
42036D
SLEEVE
42036-1351
$11.28
45014
SHOCKABSORBER,BLACK
45014-0207-10
$569.85
92015
NUT,LOCK,FLANGED,12MM
92015-1433
$8.86
92046
BEARING-NEEDLE,18BM2416
92046-1144
$29.26
92046A
BEARING-NEEDLE,16BM2212
92046-1192
$18.21
92049
SEAL-OIL
92049-0069
$12.29
92049A
SEAL-OIL
92049-0112
$12.98
92049B
SEAL-OIL
92049-0849
$9.28
92049C
SEAL-OIL
92049-1328
$27.27
92093
SEAL
92093-0139
$8.28
92139
BUSHING,20X23X24
92139-0940
$5.08
92152
COLLAR
92152-1139
$8.86
92153
BOLT,12X85
92153-1828
$20.37
92153A
BOLT,12X108
92153-1829
$23.84
92153B
BOLT,FLANGED,10X42
92153-1957
$3.90
92154
BOLT,12X95
92154-1185
$20.37
92154A
BOLT,FLANGED,10X45
92154-7224
$3.64
92210
NUT,LOCK,10MM
92210-1672
$4.60
