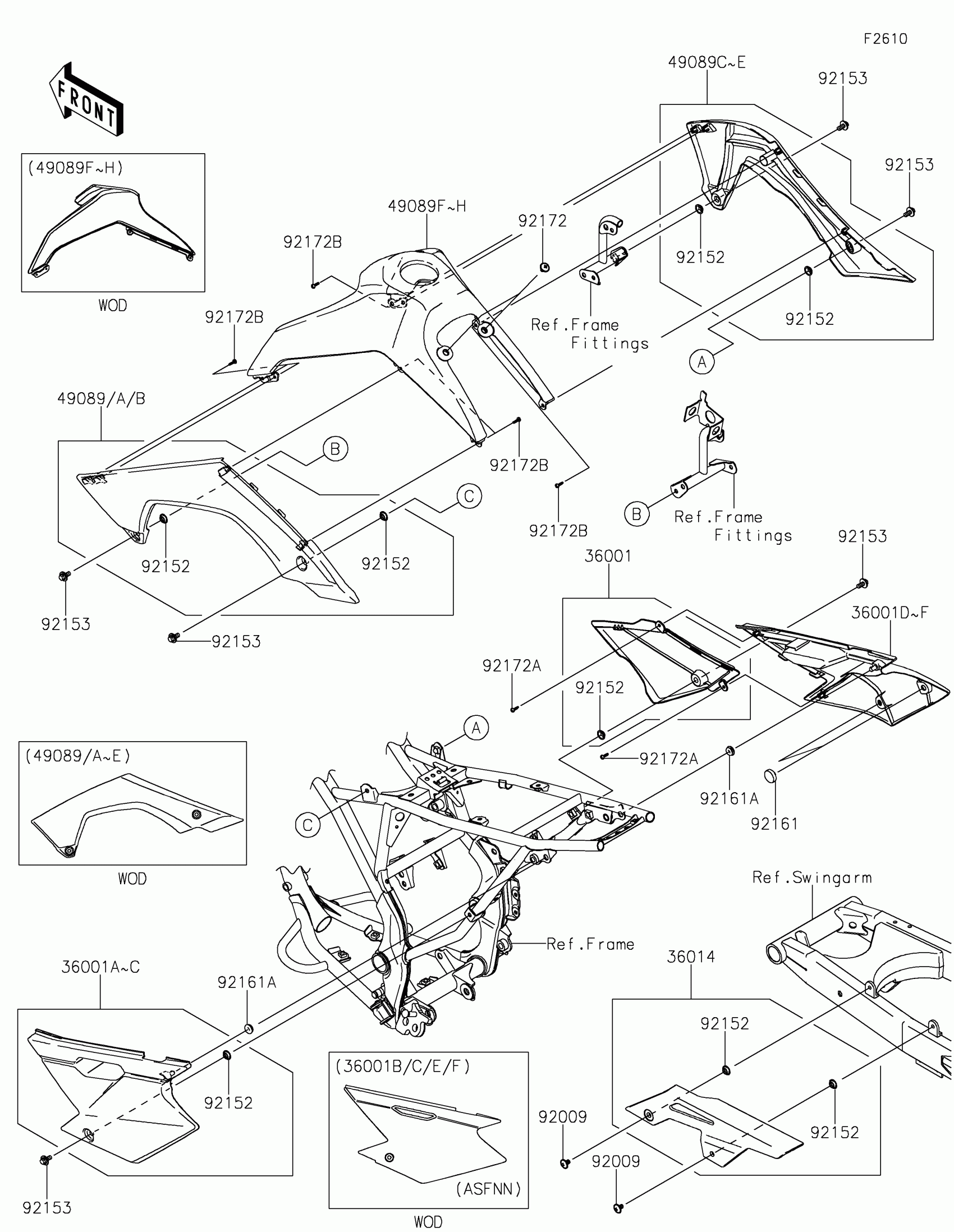

Kawasaki KLX®140R Side Covers/Chain Cover Diagram

#

Description
Price

36001

COVER-SIDE,FR,RH,EBONY

36001-0125-6C

$26.75

36001A

COVER-SIDE,RR,LH,B.WHITE

36001-0154-266

$48.23

36001B

COVER-SIDE,RR,LH,L.GREEN

36001-0154-290

$48.23

36001C

COVER-SIDE,RR,LH,B.GRAY

36001-0154-67A

$48.23

36001D

COVER-SIDE,RR,RH,B.WHITE

36001-0156-266

$48.23

36001E

COVER-SIDE,RR,RH,L.GREEN

36001-0156-290

$48.23

36001F

COVER-SIDE,RR,RH,B.GRAY

36001-0156-67A

$48.23

36014

CASE-CHAIN

36014-0044

$17.48

49089

SHROUD-ENGINE,LH,B.WHITE

49089-0053-266

$35.93

49089A

SHROUD-ENGINE,LH,L.GREEN

49089-0053-290

$36.62

49089B

SHROUD-ENGINE,LH,B.GRAY

49089-0053-67A

$36.62

49089C

SHROUD-ENGINE,RH,B.WHITE

49089-0054-266

$36.10

49089D

SHROUD-ENGINE,RH,L.GREEN

49089-0054-290

$36.79

49089E

SHROUD-ENGINE,RH,B.GRAY

49089-0054-67A

$36.79

49089F

SHROUD-ENGINE,UPP,B.WHITE

49089-0954-266

$72.61

49089G

SHROUD-ENGINE,UPP,L.GREEN

49089-0954-290

$73.99

49089H

SHROUD-ENGINE,UPP,B.GRAY

49089-0954-67A

$73.99

92009

SCREW,6X10

92009-1729

$0.22

92152

COLLAR,8.8X11.2X4

92152-0909

$5.65

92153

BOLT,FLANGED,6X14

92153-0936

$2.97

92161

DAMPER

92161-0336

$5.65

92161A

DAMPER

92161-0631

$7.37

92172

SCREW,6X10

92172-0098

$2.80

92172A

SCREW,TAPPING,4X12

92172-0233

$1.34

92172B

SCREW,TAPPING,4X12

92172-1451

$1.34
