2021 Kawasaki KLX®140R L Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 2021 Kawasaki KLX®140R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

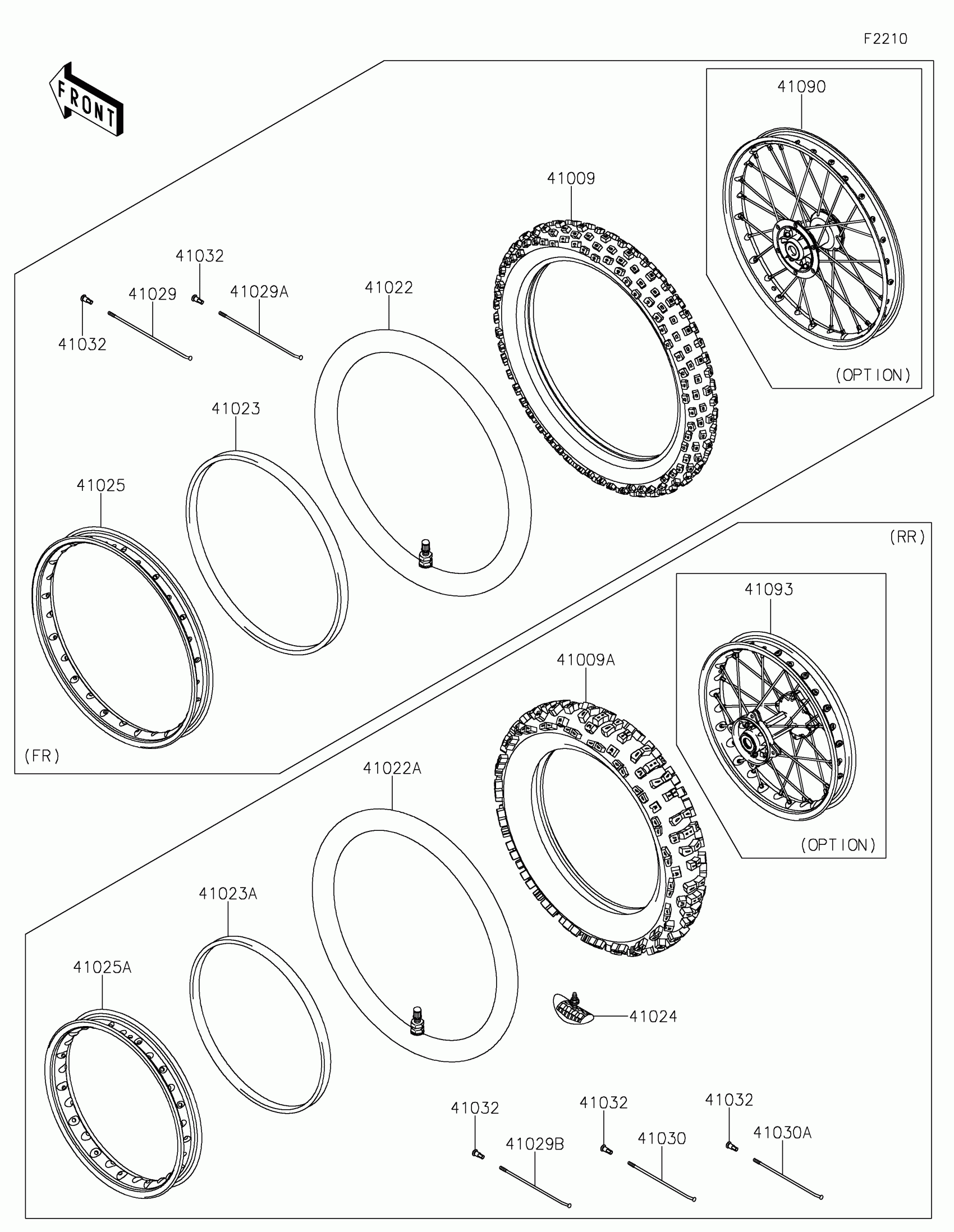

2021 Kawasaki KLX®140R L Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41009

TIRE,FR,70/100-19 42M,IX05H

41009-0169

1
Out of stock

41009A

TIRE,RR,90/100-16 52M,IX05H

41009-0170

1
Out of stock

41022

TUBE-TIRE,70/100-19

41022-0029

1
Out of stock

41022A

TUBE-TIRE,90/100-16

41022-0030

1
Out of stock

41023

BAND-RIM,70/100-19

41023-0013

1
Out of stock

41023A

BAND-RIM,90/100-16

41023-0014

1
Out of stock

41024

STOPPER-RIM,1.85-M(DUNLOP)

41024-011

1
Out of stock

41025

RIM,FR,1.40X19,SILVER

41025-0417-WA

1
Out of stock

41025A

RIM,RR,1.85X16,SILVER

41025-0418-WA

1
Out of stock

41029

SPOKE-INNER,FR,RH,211MMX165D

41029-0044

1
Out of stock

41029A

SPOKE-INNER,FR,LH,207MMX165D

41029-0045

1
Out of stock

41029B

SPOKE-INNER,RR,179MMX170D

41029-0046

1
Out of stock

41030

SPOKE-OUTER,RR,RH,171MMX170D

41030-0015

1
Out of stock

41030A

SPOKE-OUTER,RR,LH,175MMX170D

41030-0016

1
Out of stock

41032

NIPPLE-SPOKE

41032-0010

1
Out of stock

41090

WHEEL,FR,1.40X19,SILVER

41090-0054-WA

1
Out of stock

41093

WHEEL-SUB ASSY,RR,SILVER

41093-0001-WA

1
Out of stock
