2026 Kawasaki KLX®140R L Front HUB Diagram

← All diagrams

Find the part on the Front HUB diagram for your 2026 Kawasaki KLX®140R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

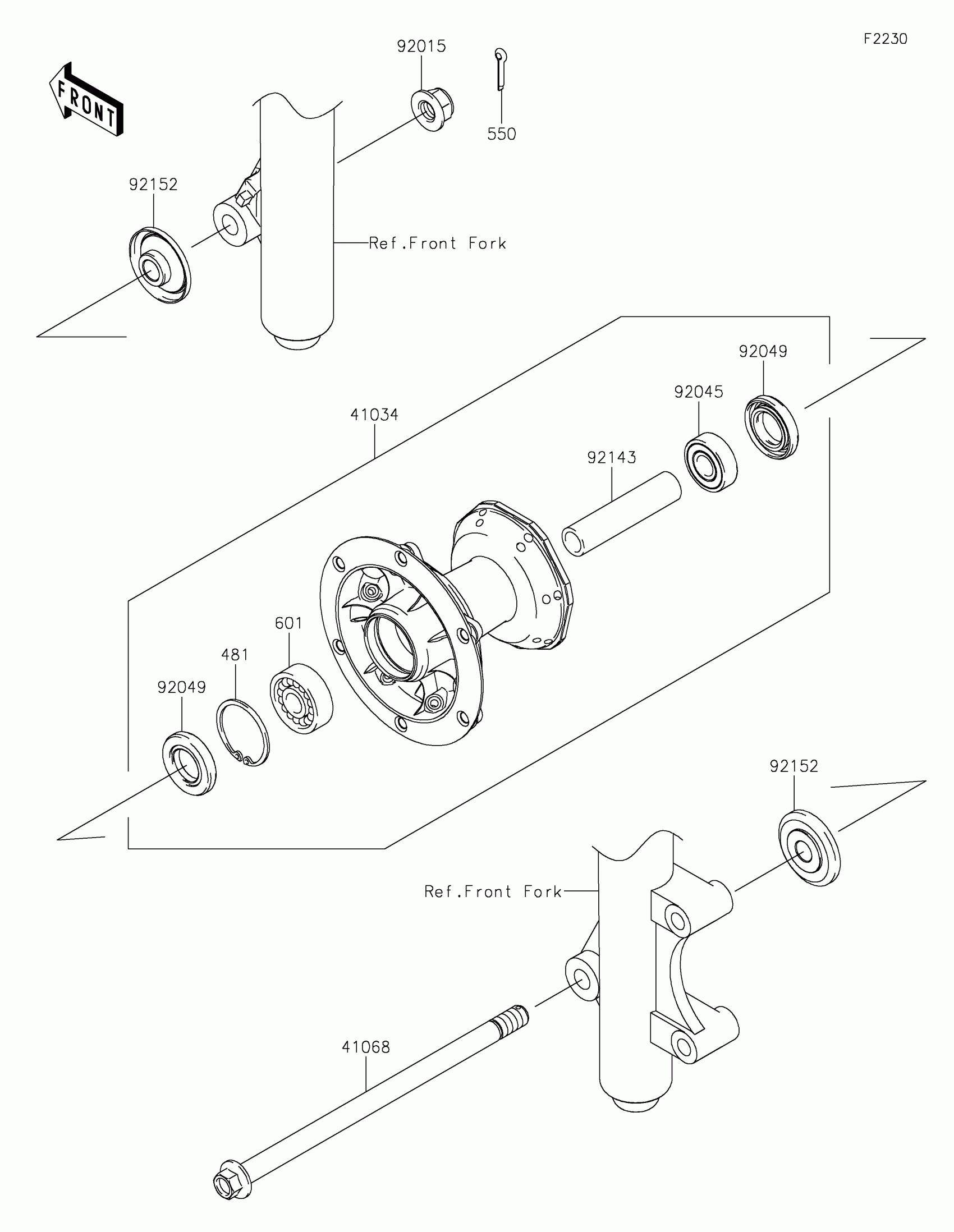

2026 Kawasaki KLX®140R L Front HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034A

DRUM-ASSY,FR

41034-0620

1
Out of stock

41068

AXLE,FR

41068-1333

1
Out of stock

92015

NUT,LOCK,FLANGED,12MM

92015-1433

1
Out of stock

92045

BEARING-BALL,TMB201LLUC3/2A

92045-1062

1
Out of stock

92049A

SEAL-OIL,20X37X6.5

92049-0814

1
Out of stock

92143

COLLAR,FR BRAKE DRUM,L=76

92143-1935

1
Out of stock

92152

COLLAR,FR AXLE,L=12

92152-2883

1
Out of stock

481

CIRCLIP-TYPE-C,37MM

481J3700

1
Out of stock

550

PIN-COTTER,2.5X20

550AA2520

1
Out of stock

601

BEARING-BALL,#6301UUC3

601B6301UU

1
Out of stock
