Transmission

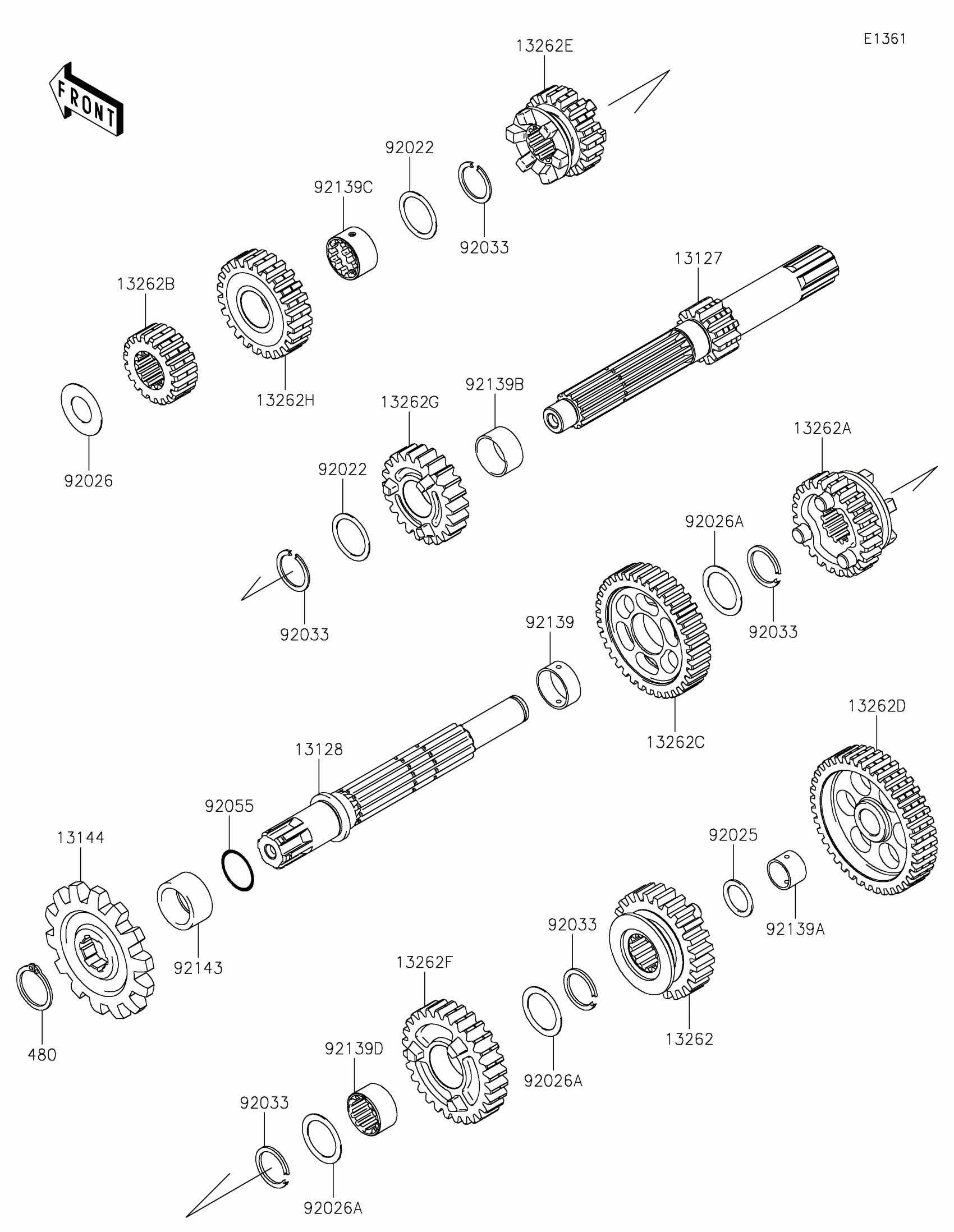

Kawasaki KLX®140R L Transmission Diagram
#
Description
Price
13127
SHAFT-TRANSMISSION INPUT,15T
13127-0074
$117.85
13128
SHAFT-TRANSMISSION OUTPUT
13128-0051
$148.67
13144
SPROCKET-OUTPUT,13T
13144-0045
$30.65
13262
GEAR,OUTPUT 4TH,26T
13262-0459
$41.62
13262A
GEAR,OUTPUT 5TH,24T
13262-0502
$60.21
13262B
GEAR,INPUT 2ND,19T
13262-0577
$48.27
13262C
GEAR,OUTPUT 2ND,36T
13262-0578
$49.80
13262D
GEAR,OUTPUT LOW,40T
13262-0579
$52.78
13262E
GEAR,INPUT 3RD,19T
13262-0662
$65.18
13262F
GEAR,OUTPUT 3RD,28T
13262-0738
$77.79
13262G
GEAR,INPUT 4TH,22T
13262-0769
Unavailable
13262H
GEAR,INPUT 5TH,24T
13262-0770
$40.89
92022
WASHER,17.3X22X0.5
92022-1799
$3.92
92025
SHIM
92025-1280
$3.29
92026
SPACER
92026-0727
$0.85
92026A
SPACER,17.2X23X0.5
92026-1037
$4.31
92033
RING-SNAP,17MM
92033-1060
$4.26
92055
RING-O,16.8X1.9
92055-0905
$3.90
92139
BUSHING
92139-0001
$3.96
92139A
BUSHING,12X14X9.4
92139-0002
$3.65
92139B
BUSHING,17X19X9.5
92139-0282
$11.02
92139C
BUSHING,14.5X17.25X11.0
92139-0283
$17.10
92139D
BUSHING
92139-0286
$17.10
92152
COLLAR,SPROCKET
92152-0998
$14.04
480
CIRCLIP-TYPE-C,17MM
480J1700
$0.65
