Description

Price

12053

GUIDE-CHAIN

12053-0116

$23.43

12053A

GUIDE-CHAIN

12053-0118

$23.43

13270

PLATE

13270-1899

$7.27

13272

PLATE,CHAIN GUIDE

13272-0406

$18.57

32085

STOPPER

32085-0138

$7.75

33001

ARM-COMP-SWING

33001-0123

$546.33

33032

SHAFT-SWING ARM,14X227

33032-0053

$30.76

33040

ADJUSTER-CHAIN

33040-0032

$6.83

42036

SLEEVE,PIVOT,15.1X20X197.8

42036-0070

$40.82

55020

GUARD,CHAIN

55020-0336

$26.91

92046

BEARING-NEEDLE,BM202726

92046-1110

$23.45

92049

SEAL-OIL

92049-0849

$9.28

92151

BOLT,SOCKET,6X18

92151-1149

$7.68

92154A

BOLT,FLANGED,6X8

92154-7202

$2.49

92154B

BOLT,8X46

92154-7230

$18.84

92172

SCREW,5X10

92172-1449

$2.46

92210

NUT

92210-0855

$9.91

92210A

NUT

92210-0883

$4.06

92210B

NUT,POP,6MM,L=15

92210-1397

$5.48

132A

BOLT-FLANGED-SMALL,6X45

132BA0645

$4.45

132B

BOLT-FLANGED-SMALL,6X50

132BA0650

$3.69

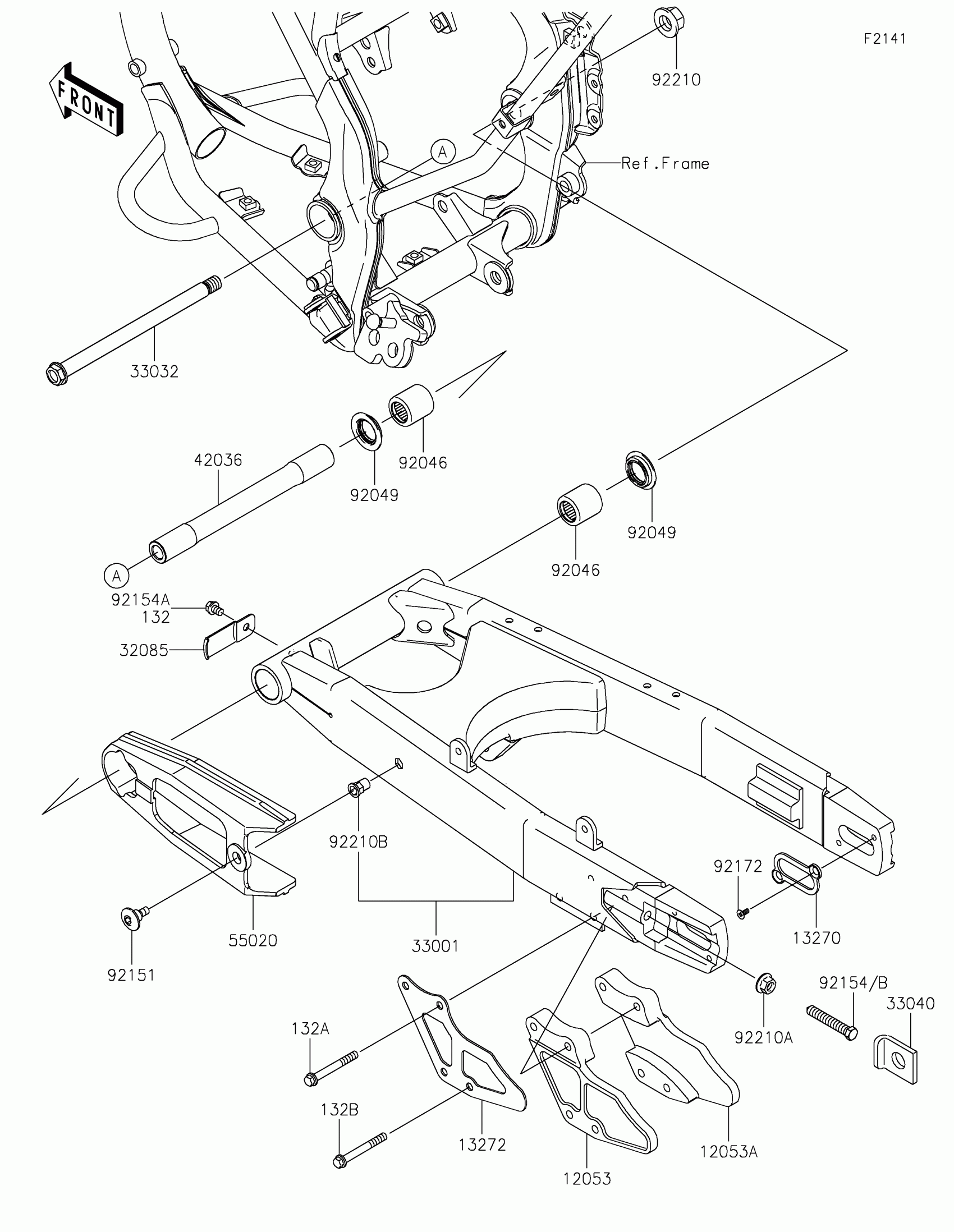

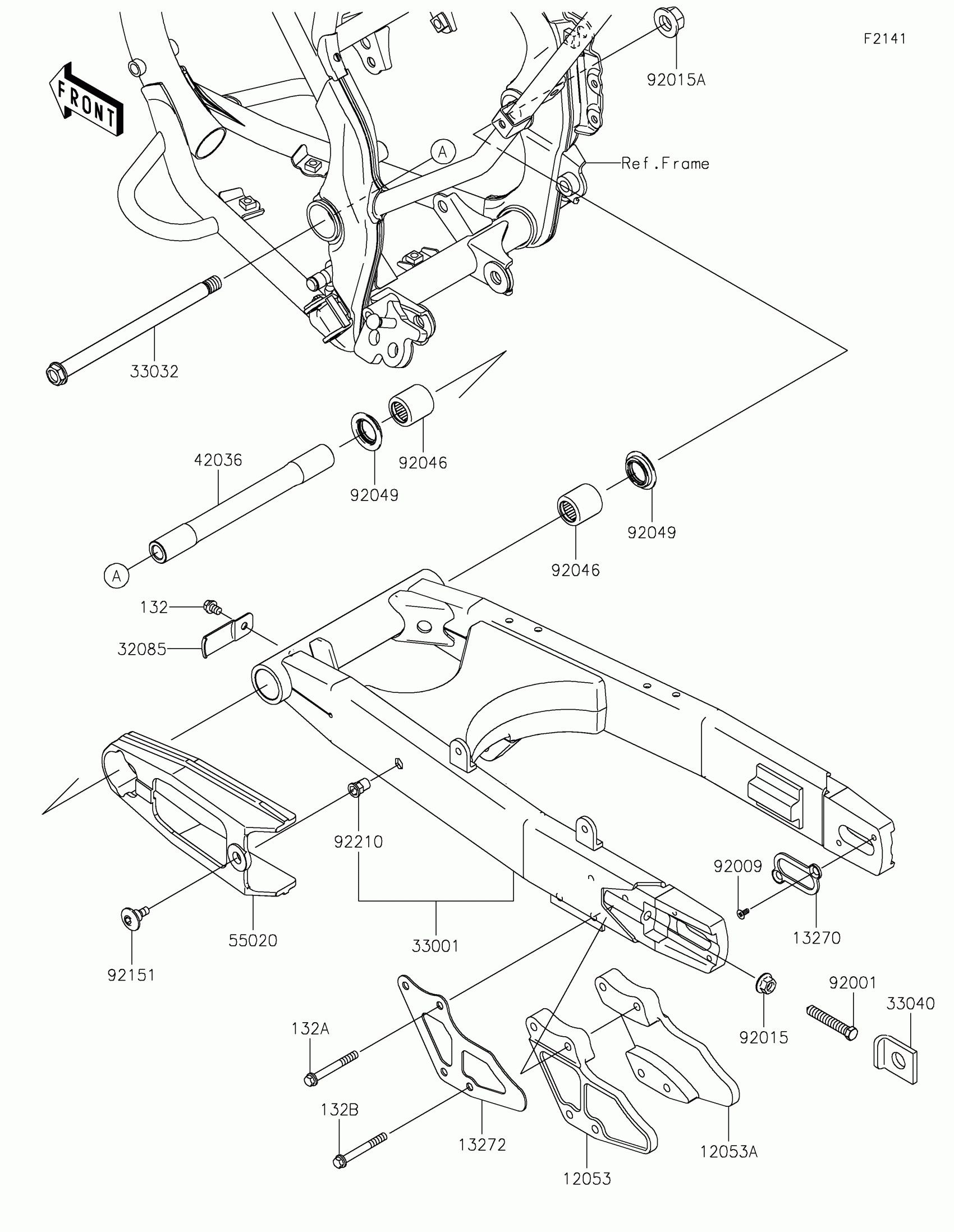

Kawasaki KLX®140R L Swingarm Diagram

GUIDE-CHAIN

GUIDE-CHAIN

PLATE

PLATE,CHAIN GUIDE

STOPPER

ARM-COMP-SWING

SHAFT-SWING ARM,14X227

ADJUSTER-CHAIN

SLEEVE,PIVOT,15.1X20X197.8

GUARD,CHAIN

BEARING-NEEDLE,BM202726

SEAL-OIL

BOLT,SOCKET,6X18

BOLT,FLANGED,6X8

BOLT,8X46

SCREW,5X10

NUT

NUT

NUT,POP,6MM,L=15

BOLT-FLANGED-SMALL,6X45

BOLT-FLANGED-SMALL,6X50
