2021 Kawasaki KLX®140R L Reflectors Diagram

← All diagrams

Find the part on the Reflectors diagram for your 2021 Kawasaki KLX®140R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

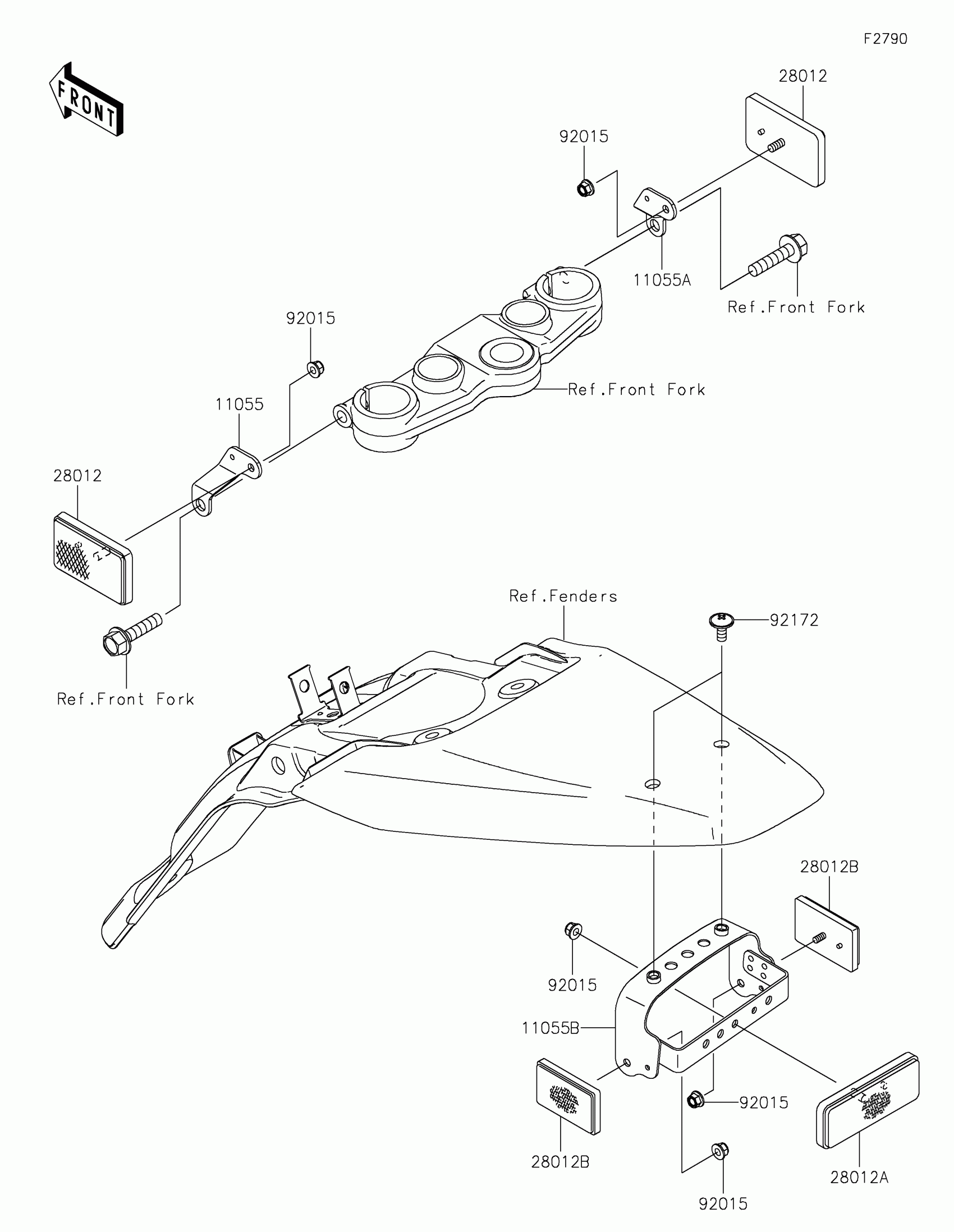

2021 Kawasaki KLX®140R L Reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET,REFLECTOR,FR,LH

11055-0469

1
Out of stock

11055A

BRACKET,REFLECTOR,FR,RH

11055-0470

1
Out of stock

11055B

BRACKET,REFLECTOR,RR

11055-0770

1
Out of stock

28012

REFLECTOR-REFLEX

28012-1003

1
Out of stock

28012A

REFLECTOR-REFLEX

28012-1077

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1088

1
Out of stock

92015

NUT,LOCK,FLANGED,5MM

92015-1752

1
Out of stock

92172

SCREW,6X14

92172-0401

1
Out of stock
