Description

Price

13070

GUIDE,THROTTLE

13070-0083

$7.69

13280

HOLDER,CLUTCH LEVER

13280-0256

$30.76

14091

COVER,THROTTLE CASE,UPP

14091-0873

$8.28

27010

SWITCH,CLUTCH

27010-0071

$55.25

32099

CASE,THROTTLE,UPP

32099-0037

$22.01

32099A

CASE,THROTTLE,LWR

32099-0038

$18.57

46003

HANDLE,P.SILVER

46003-0205-458

$87.61

46012

HOLDER-HANDLE,LWR,P.SILVER

46012-0013-458

$40.22

46012A

HOLDER-HANDLE,UPP,P.SILVER

46012-0023-458

$23.84

46018

GRIP-ASSY-THROTTLE

46018-0073

$121.74

46019

GRIP-ASSY,THROTTLE

46019-0023

$29.91

46075

GRIP,LH

46075-0072

$14.62

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0049

$56.15

46091

HOUSING-ASSY-CONTROL,LH

46091-0226

$104.39

46092

LEVER-GRIP,CLUTCH

46092-0026

$19.99

49006

BOOT,THROTTLE CASE

49006-0075

$13.48

49006A

BOOT,LEVER HOLDER

49006-0080

$17.48

59101

REEL,THROTTLE

59101-0005

$11.82

92019

NUT,LOCK,6MM

92019-008

$4.26

92022

WASHER,10.2X28X2

92022-1088

$4.69

92022A

WASHER

92022-1737

$5.52

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92153

BOLT,6MM

92153-1897

$8.68

92153A

BOLT,5X20

92153-1898

$4.65

92154

BOLT,FLANGED,8X30

92154-7206

$3.90

92161

DAMPER,HANDLE HOLDER

92161-0632

$6.07

92171

CLAMP,LEVER HOLDER

92171-1671

$8.68

92172

SCREW,CABLE ADJUST,8MM

92172-0330

$3.90

92210

NUT,CABLE ADJUST

92210-0411

$5.65

92210A

NUT,LOCK,10MM

92210-1672

$4.60

214

SCREW-PAN+-,5X18

214AB0518

$2.61

220

SCREW-PAN-CROS,5X22

220AB0522

$1.11

221

SCREW-CSK-CROS,4X12

221AB0412

$2.67

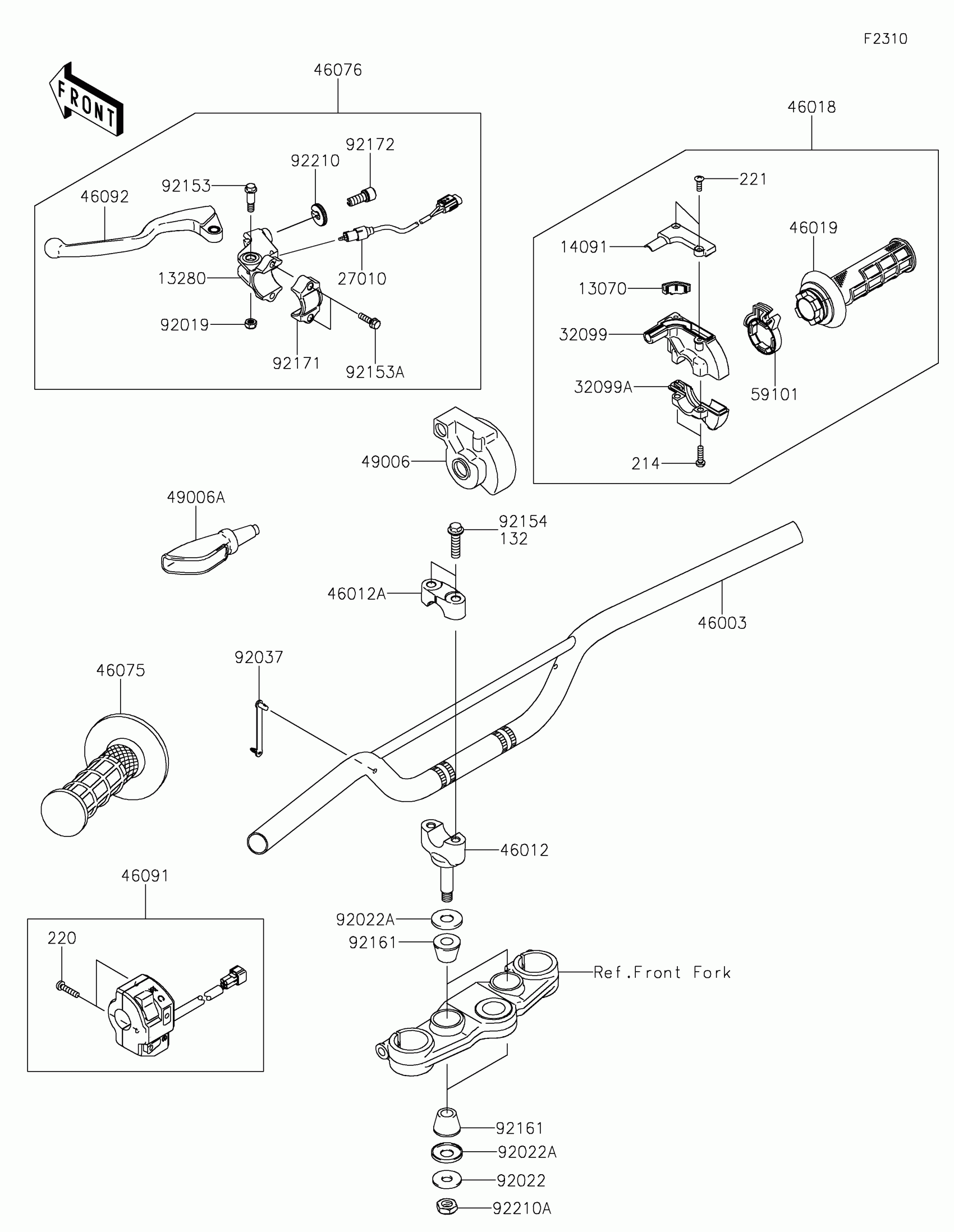

Kawasaki KLX®140R L Handlebar Diagram
