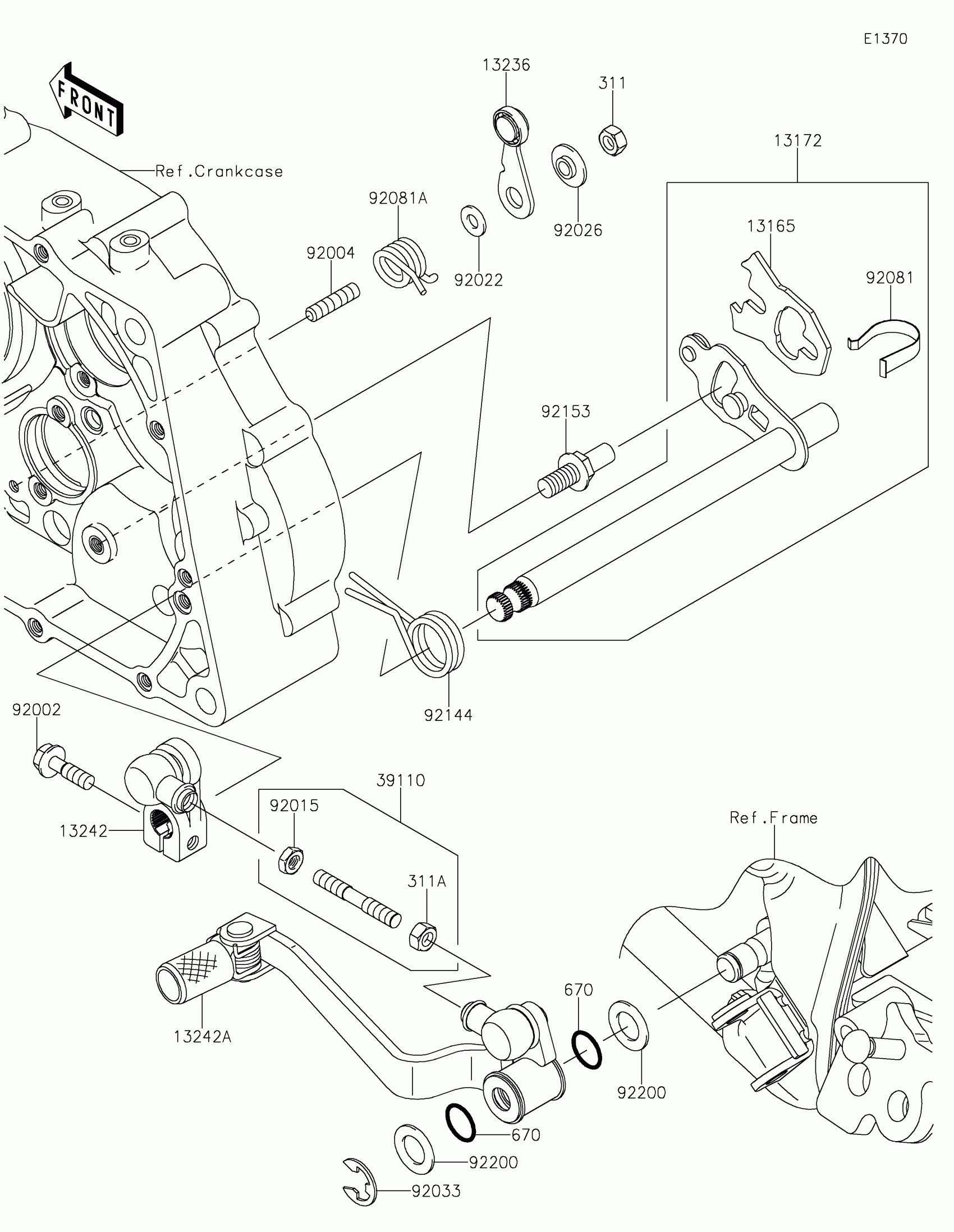

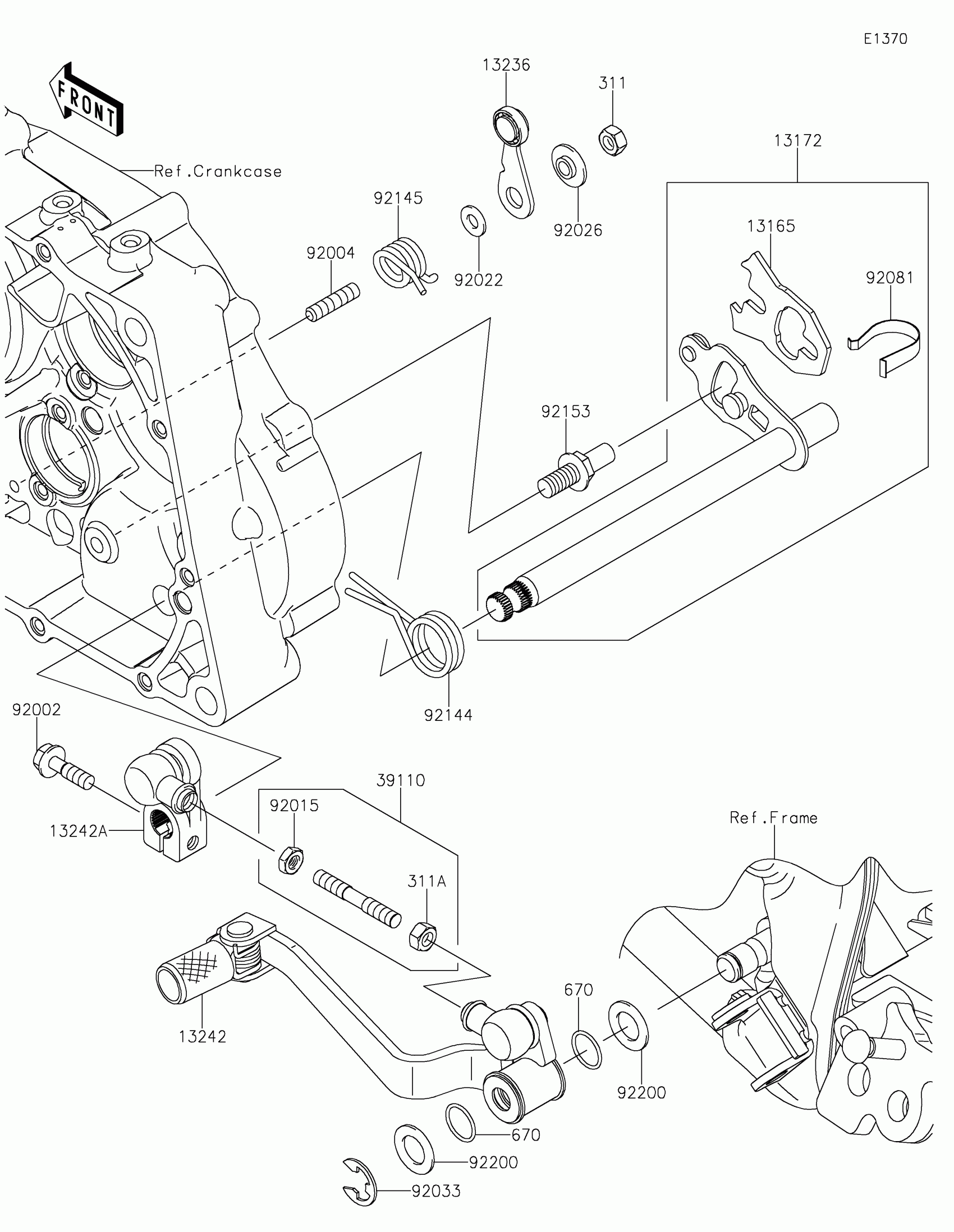

Kawasaki KLX®140R L Gear Change Mechanism Diagram

Description

Price

13165

PAWL,CHANGE SHAFT

13165-0003

$4.09

13172

SHAFT-ASSY-CHANGE

13172-0009

$74.13

13236

LEVER-COMP,POSITION

13236-0157

$10.03

13242

LEVER-ASSY-CHANGE

13242-0034

$39.81

13242A

LEVER-ASSY-CHANGE,PEDAL

13242-0134

$65.32

311

NUT-HEX,6MM

311BA0600

$2.23

311A

NUT-HEX,6MM

311BB0600

$1.04

39110

ROD-ASSY-TIE

39110-0027

$8.68

670

O RING,12MM

670B2012

$3.23

92002

BOLT,6X20

92002-1237

$4.31

92004

STUD,6X12

92004-0032

$1.79

92015

NUT,LEFT HANDED,6MM

92015-1178

$4.31

92022

WASHER,6X12.8X1.2

92022-1827

$4.69

92026

SPACER

92026-1217

$5.52

92033

RING-SNAP,TYPE-E,10MM

92033-1178

$4.26

92081

SPRING,CHANGE LEVER

92081-1829

$8.79

92081A

SPRING,POSITION LEVER

92081-1993

$6.51

92144

SPRING,CHANGE PEDAL RETURN

92144-1345

$17.44

92153

BOLT,8X15.5

92153-1144

$1.63

92200

WASHER,12.5X21X1.2

92200-0388

$3.39
