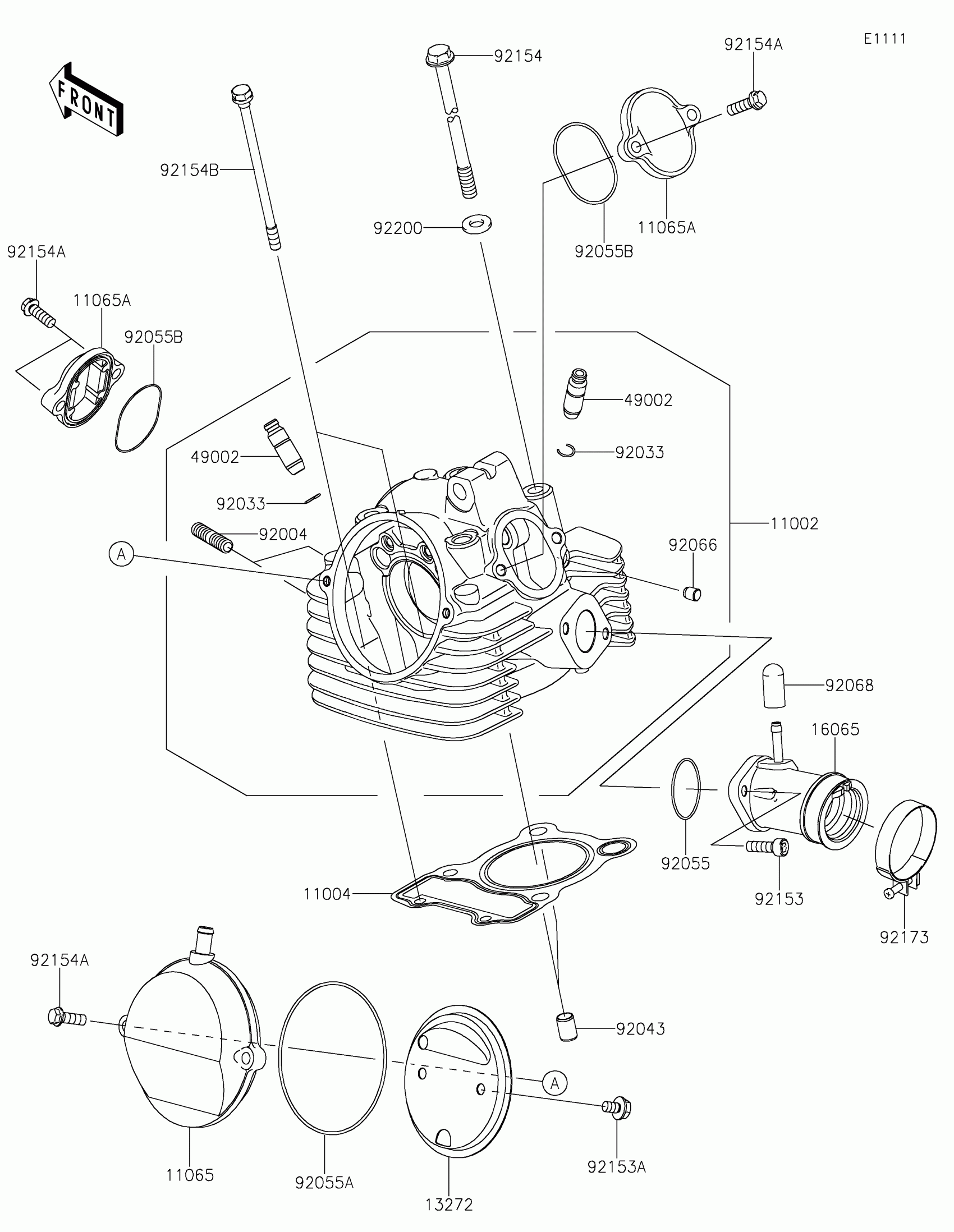

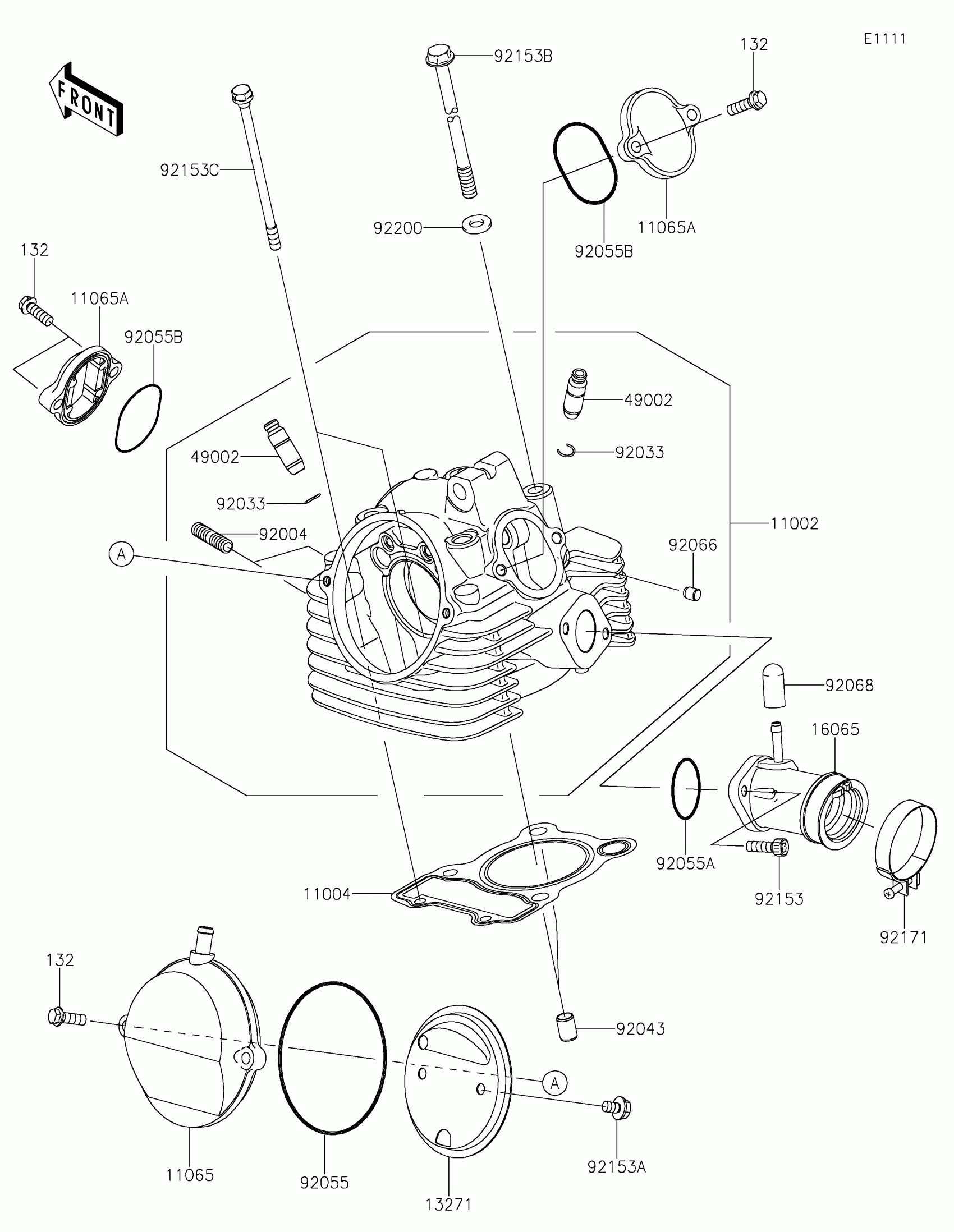

Kawasaki KLX®140R L Cylinder Head Diagram

Description

Price

11002

HEAD-ASSY-CYLINDER

11002-0233

$615.17

11004

GASKET-HEAD

11004-0751

Unavailable

11065

CAP

11065-0799

$55.25

11065A

CAP,VALVE,ADJUSTING

11065-0800

$23.43

13272

PLATE,BREATHER

13272-4055

$2.34

16065

HOLDER-CARBURETOR

16065-0054

$53.22

49002

GUIDE-VALVE

49002-0019

$20.75

92004

STUD,8X22

92004-0722

$5.64

92033

RING-SNAP

92033-1247

$3.91

92043

PIN,8.2X10X14

92043-1742

$3.71

92055

RING-O,32X1.9

92055-0191

$13.41

92055A

RING-O,86X1.9

92055-0904

$7.24

92055B

RING-O

92055-1697

$10.30

92066

PLUG,OIL LINE,7.2X8

92066-1012

$6.51

92068

PLUG,12X25

92068-006

$4.26

92153

BOLT,6X20

92153-0481

$0.79

92153A

BOLT,6X10

92153-1140

$0.67

92154

BOLT,FLANGED,8X201

92154-1155

$6.61

92154A

BOLT,FLANGED,6X20

92154-1219

$2.49

92154B

BOLT,FLANGED,6X110

92154-3751

$8.98

92173

CLAMP

92173-2511

$12.98

92200

WASHER,8.2X17X2.3

92200-1631

$0.49
