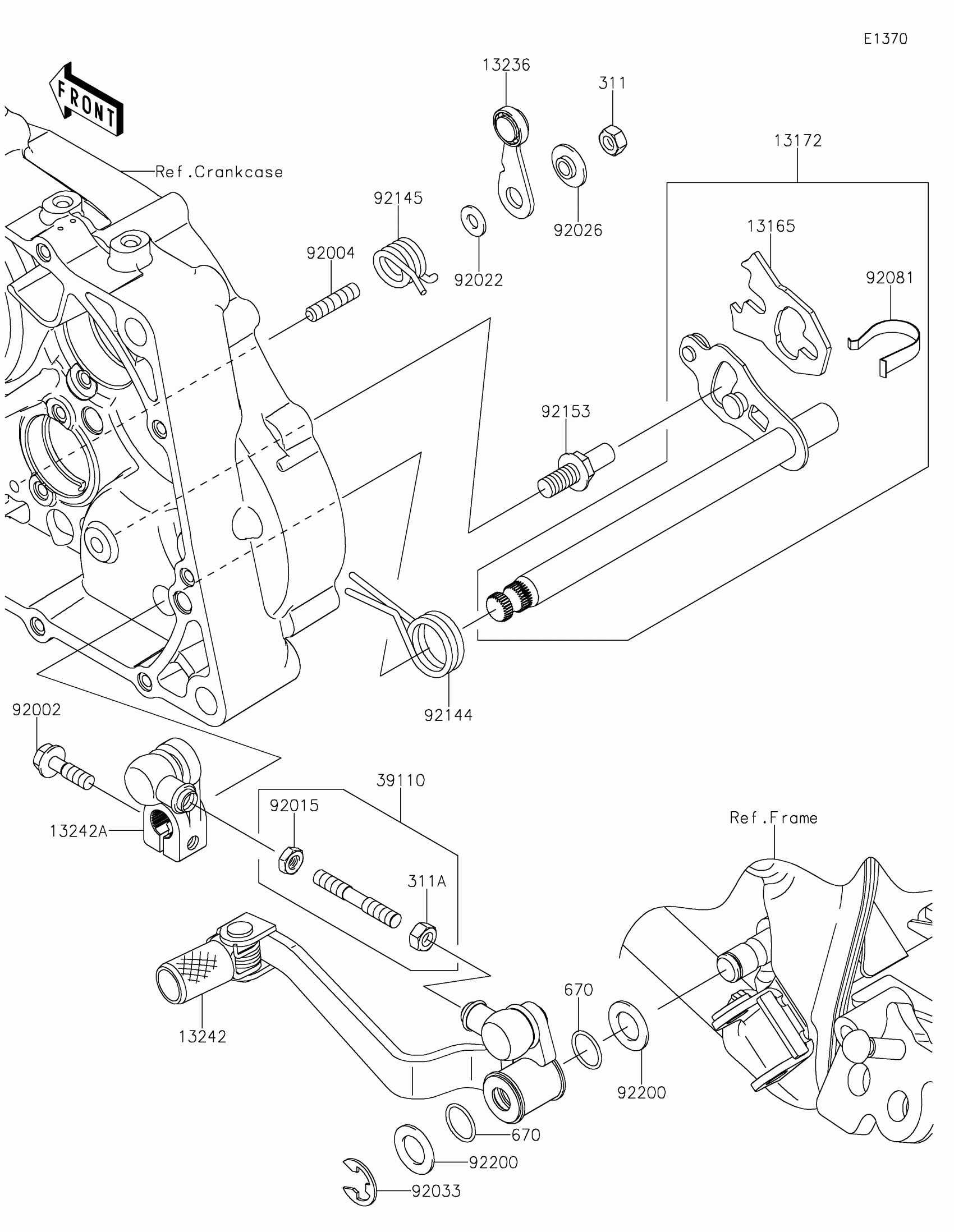

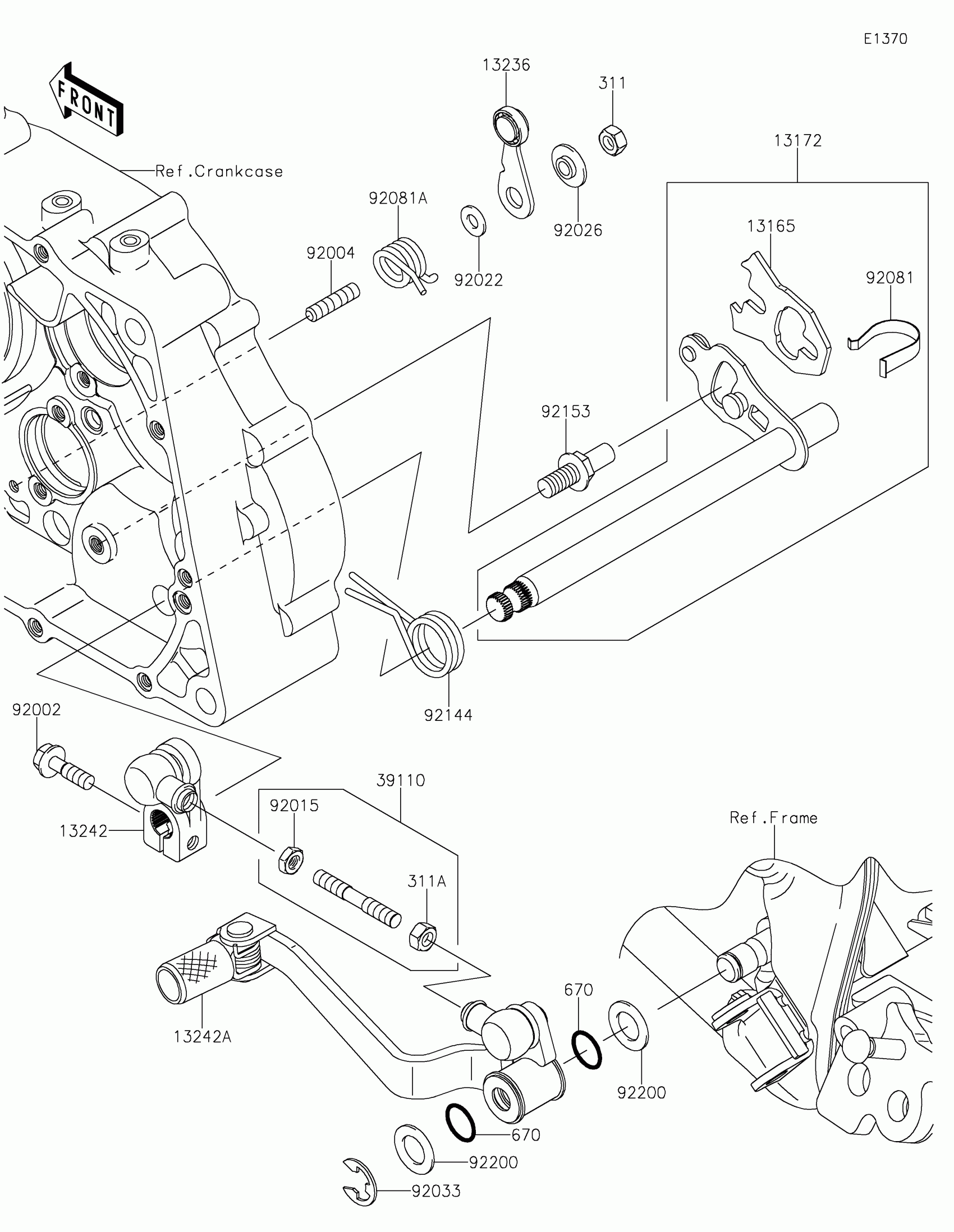

Kawasaki KLX®140R Gear Change Mechanism Diagram

Description

Price

13165

PAWL,CHANGE SHAFT

13165-0003

$3.66

13172

SHAFT-ASSY-CHANGE

13172-0009

$75.55

13236

LEVER-COMP,POSITION

13236-0157

$9.69

13242

LEVER-ASSY-CHANGE

13242-0034

$42.39

13242A

LEVER-ASSY-CHANGE,PEDAL

13242-0134

$66.56

311

NUT-HEX,6MM

311BA0600

$1.58

311A

NUT-HEX,6MM

311BB0600

$0.98

39110

ROD-ASSY-TIE

39110-0027

$8.46

670

O RING,12MM

670B2012

$2.22

92002

BOLT,6X20

92002-1237

$3.29

92004

STUD,6X12

92004-0032

$1.54

92015

NUT,LEFT HANDED,6MM

92015-1178

$3.85

92022

WASHER,6X12.8X1.2

92022-1827

$3.57

92026

SPACER

92026-1217

$4.18

92033

RING-SNAP,TYPE-E,10MM

92033-1178

$3.81

92081

SPRING,CHANGE LEVER

92081-1829

$6.70

92081A

SPRING,POSITION LEVER

92081-1993

$5.66

92144

SPRING,CHANGE PEDAL RETURN

92144-1345

$16.34

92153

BOLT,8X15.5

92153-1144

$1.44

92200

WASHER,12.5X21X1.2

92200-0388

$2.71
