Description

Price

43049

PACKING,VALVE

43049-1102

$7.26

51001

TANK-COMP-FUEL

51001-0924

$474.86

51023

TAP-ASSY,FUEL

51023-0720

$90.06

51048

CAP-ASSY-TANK,FUEL

51048-0009

$52.57

92009

SCREW,3X5

92009-1123

$0.59

92009A

SCREW,6MM

92009-1971

$4.18

92022

WASHER,6.5X24X2

92022-1690

$3.92

92055

RING-O,FUEL TAP LEVER

92055-0960

$5.00

92055A

RING-O,FUEL TAP PACKING

92055-1112

$5.00

92072

BAND,FUEL TANK

92072-0109

$12.29

92152

COLLAR

92152-0569

$5.65

92152A

COLLAR,6.8X10X14

92152-2888

$5.00

92154

BOLT,FLANGED,6X12

92154-2753

$2.70

92154A

BOLT,FLANGED-SMALL,6X25

92154-4445

$2.80

92160

DAMPER,FUEL TANK

92160-1328

$7.34

92160A

DAMPER,FUEL TANK,RR

92160-1397

$7.84

92161

DAMPER

92161-0336

$5.65

92161A

DAMPER

92161-1523

$3.72

92192

TUBE

92192-0161

$10.21

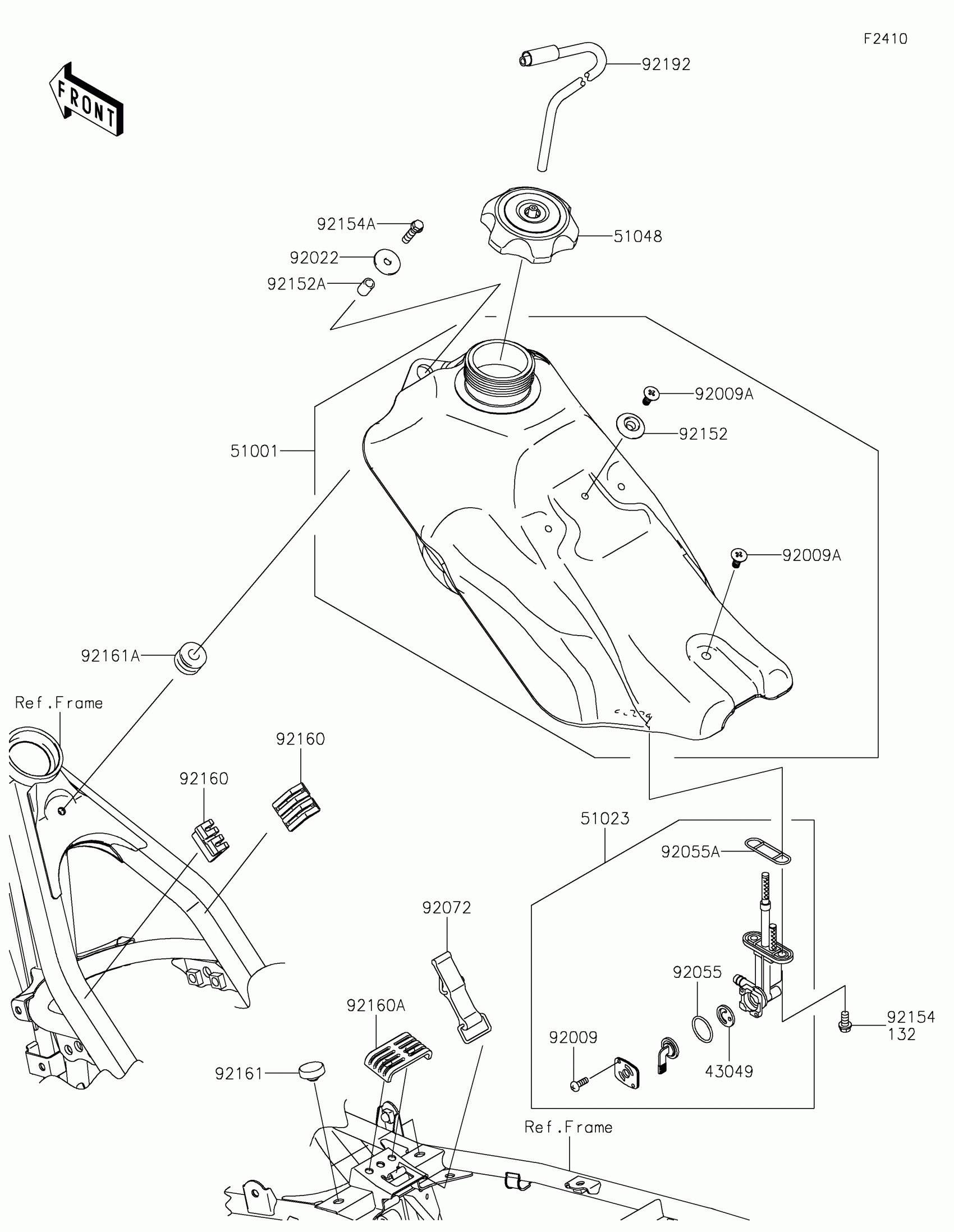

Kawasaki KLX®140R Fuel Tank Diagram

PACKING,VALVE

TANK-COMP-FUEL

TAP-ASSY,FUEL

CAP-ASSY-TANK,FUEL

SCREW,3X5

SCREW,6MM

WASHER,6.5X24X2

RING-O,FUEL TAP LEVER

RING-O,FUEL TAP PACKING

BAND,FUEL TANK

COLLAR

COLLAR,6.8X10X14

BOLT,FLANGED,6X12

BOLT,FLANGED-SMALL,6X25

DAMPER,FUEL TANK

DAMPER,FUEL TANK,RR

DAMPER

DAMPER

TUBE
