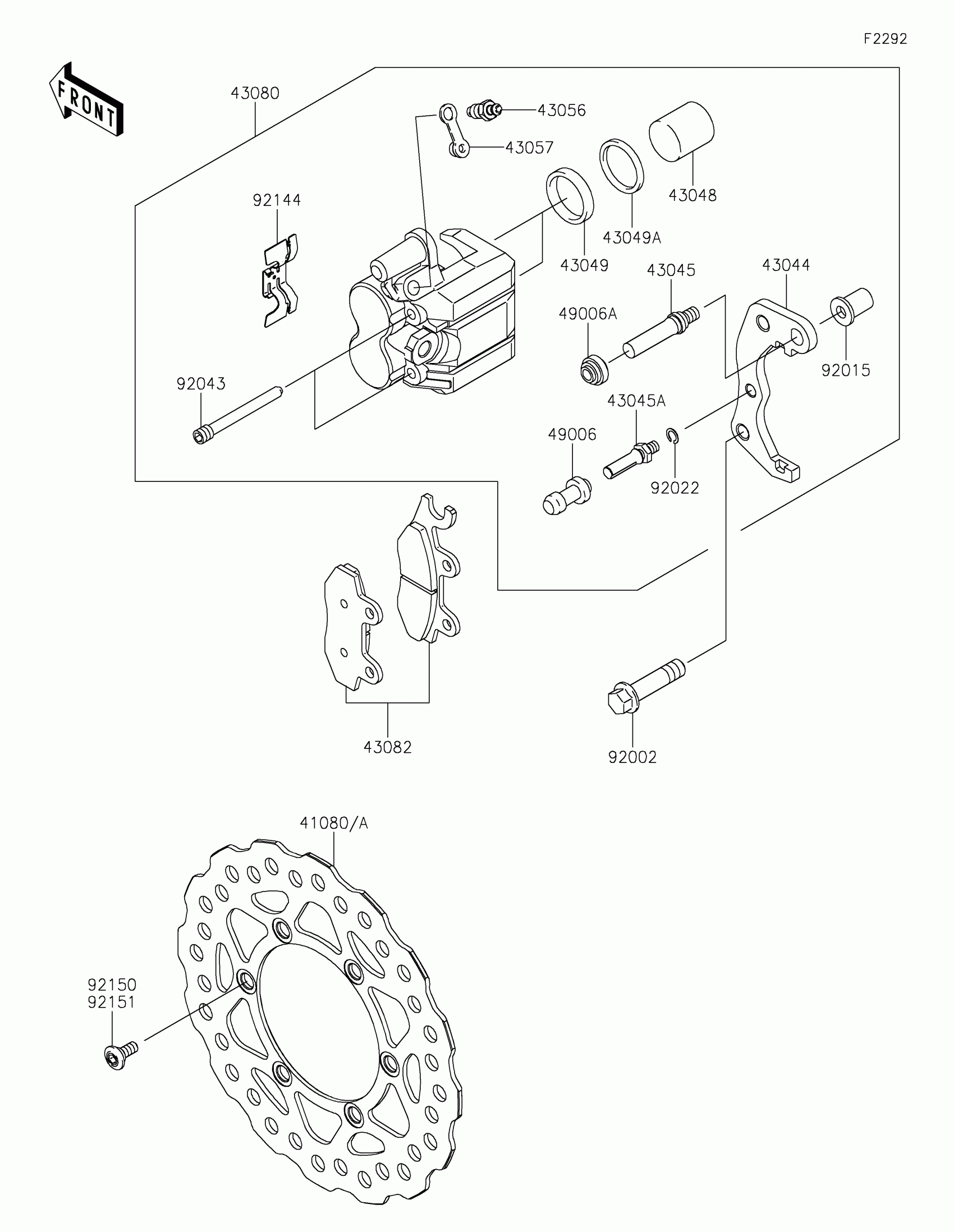

Kawasaki KLX®140R Front Brake Diagram

Description

Price

41080A

DISC,FR

41080-0758

$128.39

43044

HOLDER-COMP-CALIPER,FR,LH

43044-0006

$156.79

43045

SHAFT-CALIPER

43045-0013

$20.77

43045A

SHAFT-CALIPER

43045-1010

$20.77

43048

PISTON-CALIPER

43048-0010

$46.35

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER-BRAKE

43056-0004

$13.48

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,FR

43080-0238

$329.96

43082

PAD-ASSY-BRAKE

43082-0075

$49.12

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92002

BOLT,FLANGED,10X41

92002-1468

$8.86

92015

NUT

92015-1740

$6.26

92022

WASHER,WAVE

92022-1373

$3.92

92043

PIN,HANGER

92043-1416

$18.57

92144

SPRING,PAD

92144-1847

$30.33

92150

BOLT,DISC PLATE,8X15

92150-1811

$5.00
