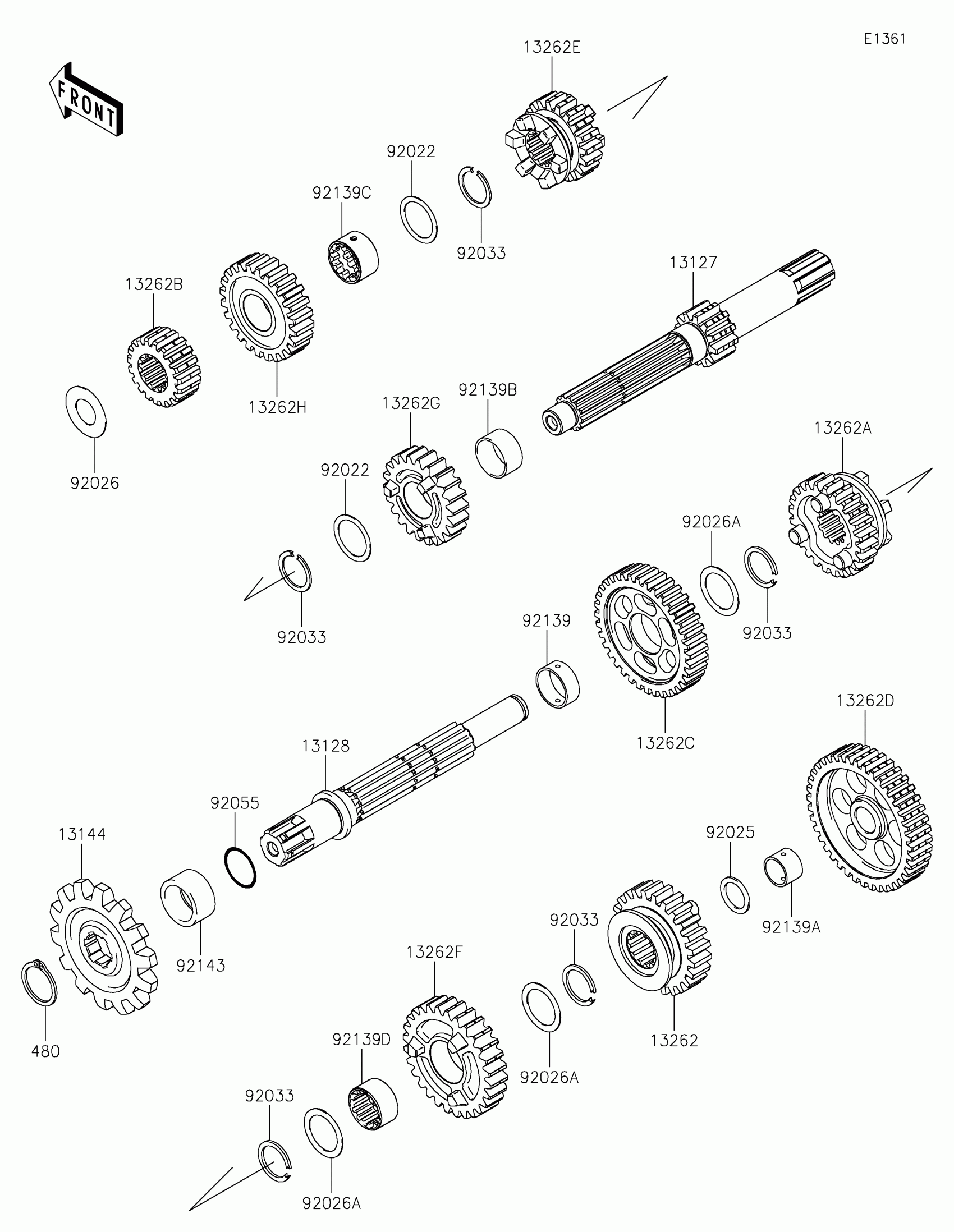

Kawasaki KLX®140R F Transmission Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,15T

13127-0074

$117.85

13128

SHAFT-TRANSMISSION OUTPUT

13128-0051

$148.67

13144

SPROCKET-OUTPUT,13T

13144-0045

$30.65

13262

GEAR,OUTPUT 4TH,26T

13262-0459

$41.62

13262A

GEAR,OUTPUT 5TH,24T

13262-0502

$60.21

13262B

GEAR,INPUT 2ND,19T

13262-0577

$48.27

13262C

GEAR,OUTPUT 2ND,36T

13262-0578

$49.80

13262D

GEAR,OUTPUT LOW,40T

13262-0579

$52.78

13262E

GEAR,INPUT 3RD,19T

13262-0662

$65.18

13262F

GEAR,OUTPUT 3RD,28T

13262-0738

$77.79

13262G

GEAR,INPUT 4TH,22T

13262-0769

Unavailable

13262H

GEAR,INPUT 5TH,24T

13262-0770

$40.89

480

CIRCLIP-TYPE-C,17MM

480J1700

$0.65

92022

WASHER,17.3X22X0.5

92022-1799

$3.92

92025

SHIM

92025-1280

$3.29

92026

SPACER

92026-0727

$0.85

92026A

SPACER,17.2X23X0.5

92026-1037

$4.31

92033

RING-SNAP,17MM

92033-1060

$4.26

92055

RING-O,16.8X1.9

92055-0151

$3.90

92139

BUSHING

92139-0001

$3.96

92139A

BUSHING,12X14X9.4

92139-0002

$3.65

92139B

BUSHING,17X19X9.5

92139-0282

$11.02

92139C

BUSHING,14.5X17.25X11.0

92139-0283

$17.10

92139D

BUSHING

92139-0286

$17.10

92143

COLLAR,SPROCKET

92143-1680

$12.92
