- Partiron
- OEM Parts
- Kawasaki
- motorcycle
- 2026
- KLX®140R F
Side Covers/Chain Cover

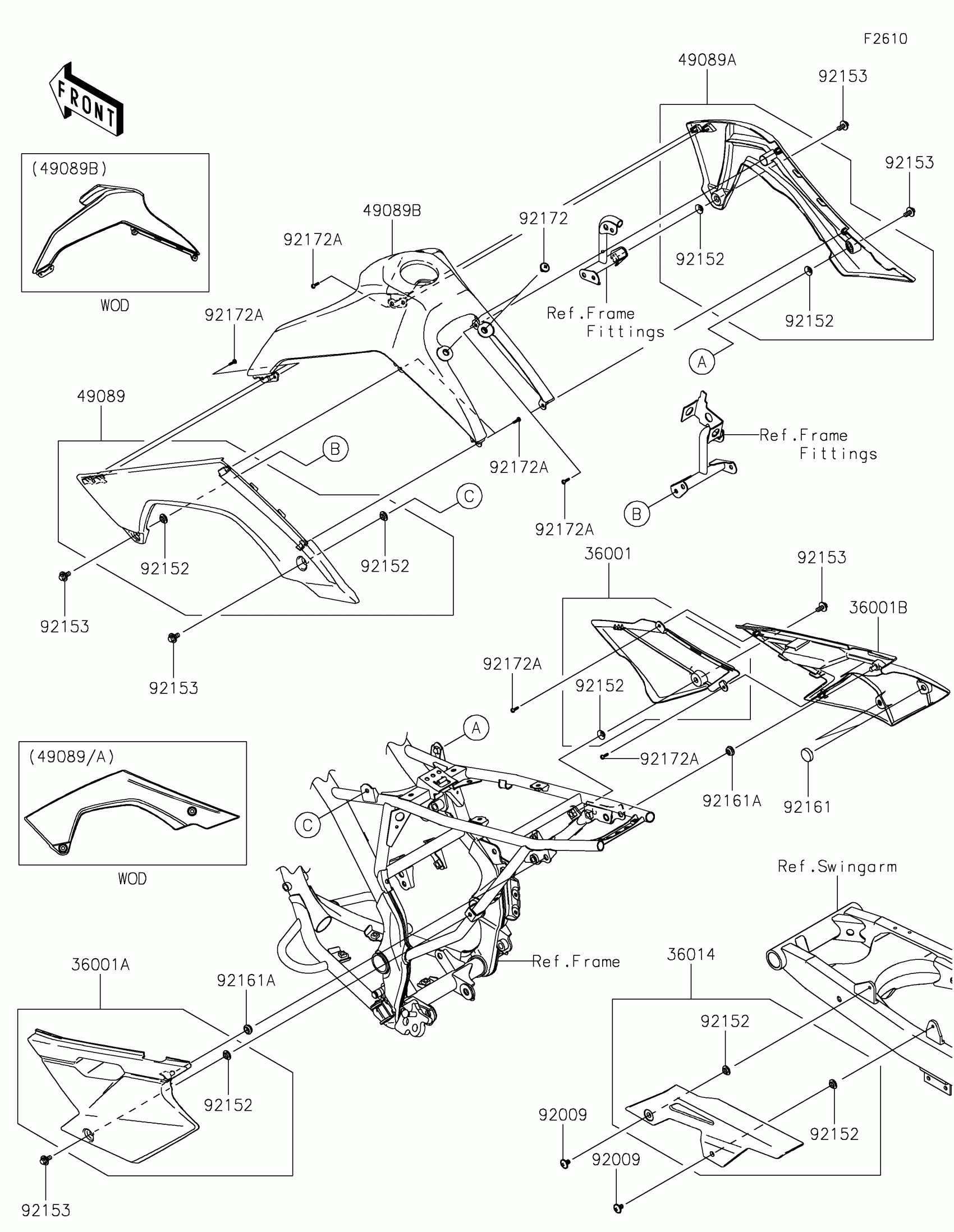

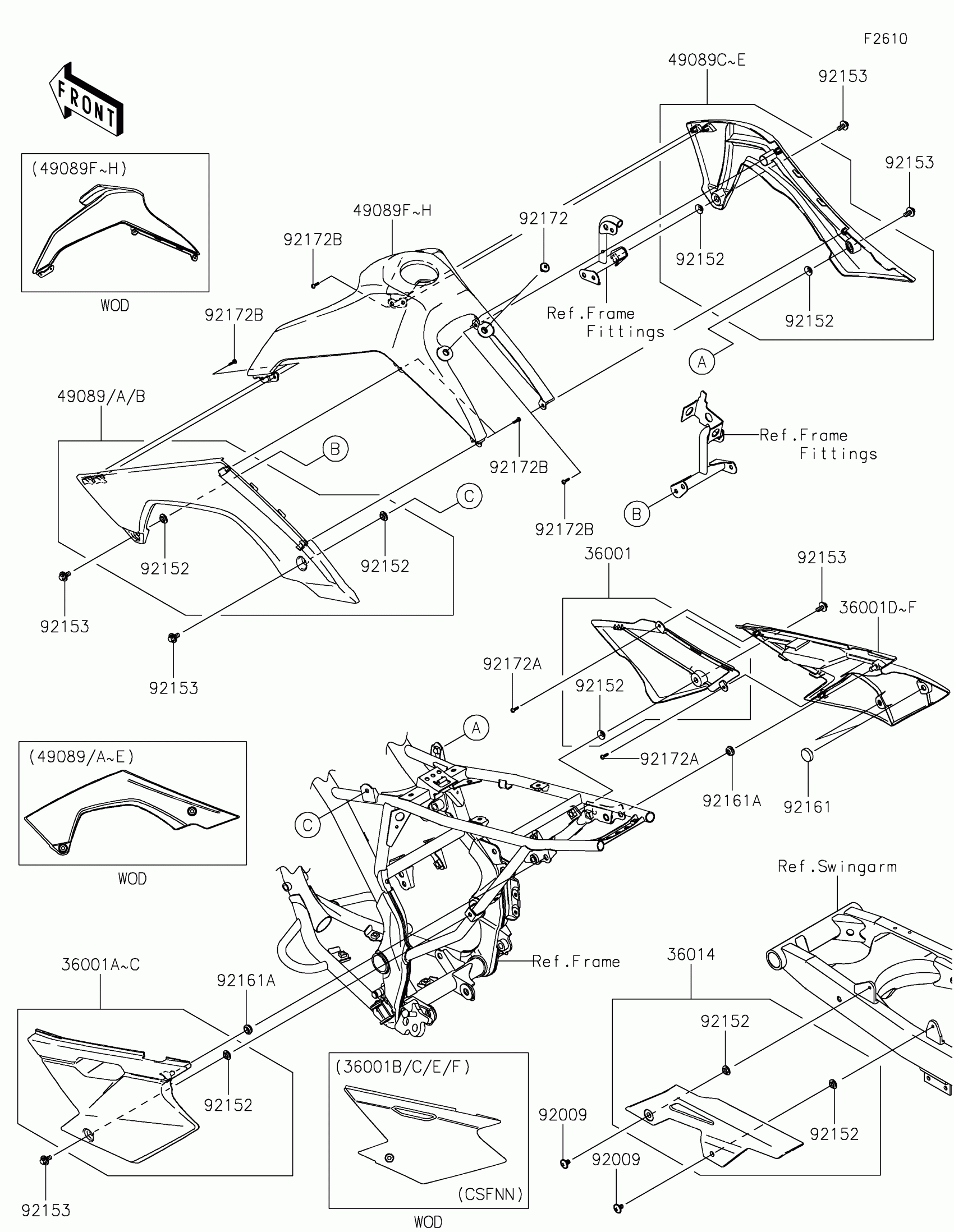

Kawasaki KLX®140R F Side Covers/Chain Cover Diagram
#
Description
Price
36001
COVER-SIDE,FR,RH,EBONY
36001-0125-6C
$26.75
36001A
COVER-SIDE,RR,LH,B.WHITE
36001-0154-266
$48.23
36001B
COVER-SIDE,RR,LH,L.GREEN
36001-0154-290
$48.23
36001C
COVER-SIDE,RR,LH,B.GRAY
36001-0154-67A
$48.23
36001D
COVER-SIDE,RR,RH,B.WHITE
36001-0156-266
$48.23
36001E
COVER-SIDE,RR,RH,L.GREEN
36001-0156-290
$48.23
36001F
COVER-SIDE,RR,RH,B.GRAY
36001-0156-67A
$48.23
36014
CASE-CHAIN
36014-0044
$17.48
49089
SHROUD-ENGINE,LH,B.WHITE
49089-0053-266
$35.93
49089A
SHROUD-ENGINE,LH,L.GREEN
49089-0053-290
$36.62
49089B
SHROUD-ENGINE,LH,B.GRAY
49089-0053-67A
$36.62
49089C
SHROUD-ENGINE,RH,B.WHITE
49089-0054-266
$36.10
49089D
SHROUD-ENGINE,RH,L.GREEN
49089-0054-290
$36.79
49089E
SHROUD-ENGINE,RH,B.GRAY
49089-0054-67A
$36.79
49089F
SHROUD-ENGINE,UPP,B.WHITE
49089-0954-266
$72.61
49089G
SHROUD-ENGINE,UPP,L.GREEN
49089-0954-290
$73.99
49089H
SHROUD-ENGINE,UPP,B.GRAY
49089-0954-67A
$73.99
92009
SCREW,6X10
92009-1729
$0.22
92152
COLLAR,8.8X11.2X4
92152-0909
$5.65
92153
BOLT,FLANGED,6X14
92153-0936
$2.97
92161
DAMPER
92161-0336
$5.65
92161A
DAMPER
92161-0631
$7.37
92172
SCREW,6X10
92172-0098
$2.80
92172A
SCREW,TAPPING,4X12
92172-0233
$1.34
92172B
SCREW,TAPPING,4X12
92172-1451
$1.34
