2021 Kawasaki KLX®140R F Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2021 Kawasaki KLX®140R F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

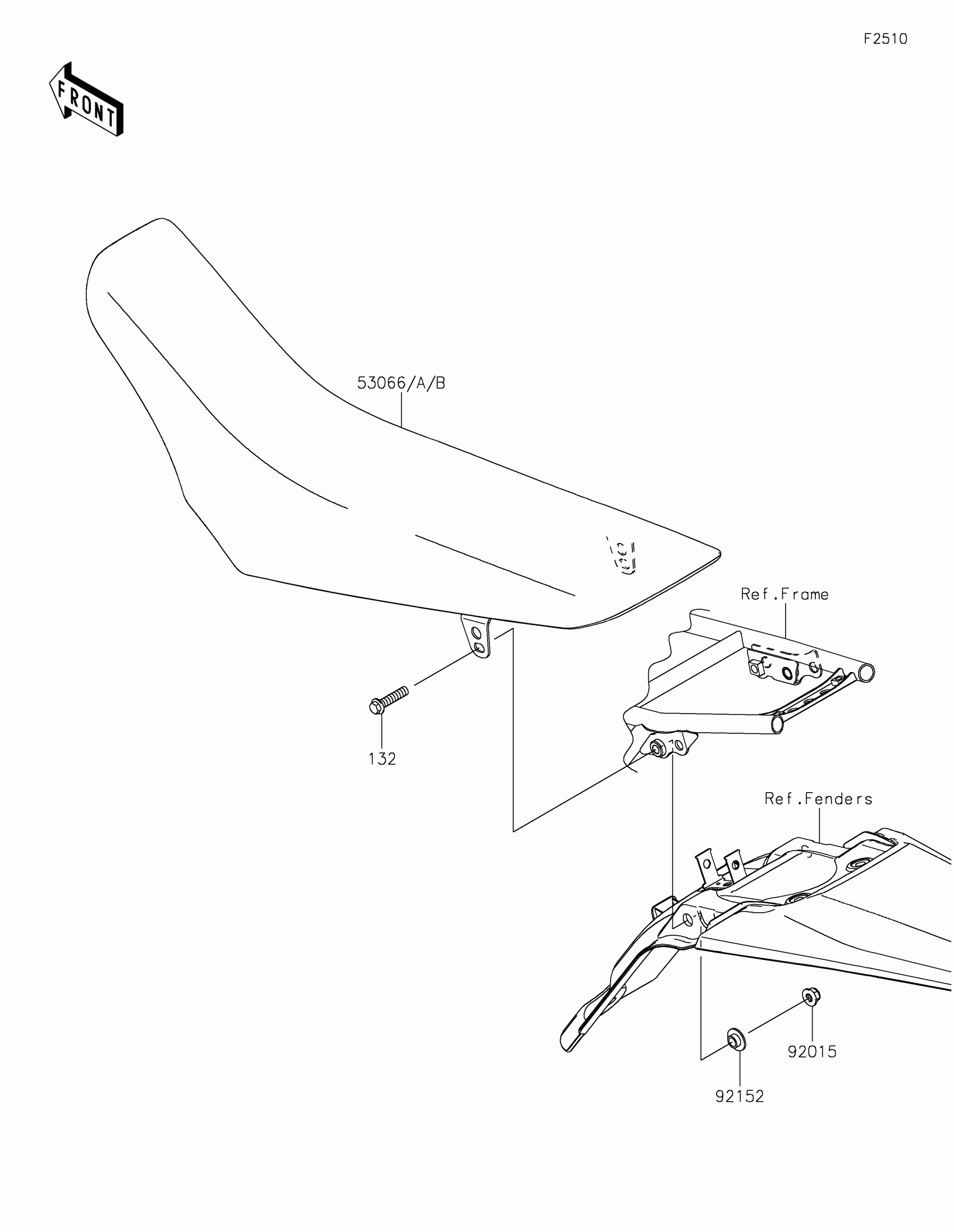

2021 Kawasaki KLX®140R F Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,8X35

132BA0835

1
Out of stock

53066

SEAT-ASSY,DUAL,GREEN/BLACK

53066-0457-49F

1
Out of stock

92015

NUT,8MM

92015-1432

1
Out of stock

92027

COLLAR

92027-1745

1
Out of stock
← Labels Stand →
