2021 Kawasaki KLX®140R F Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2021 Kawasaki KLX®140R F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

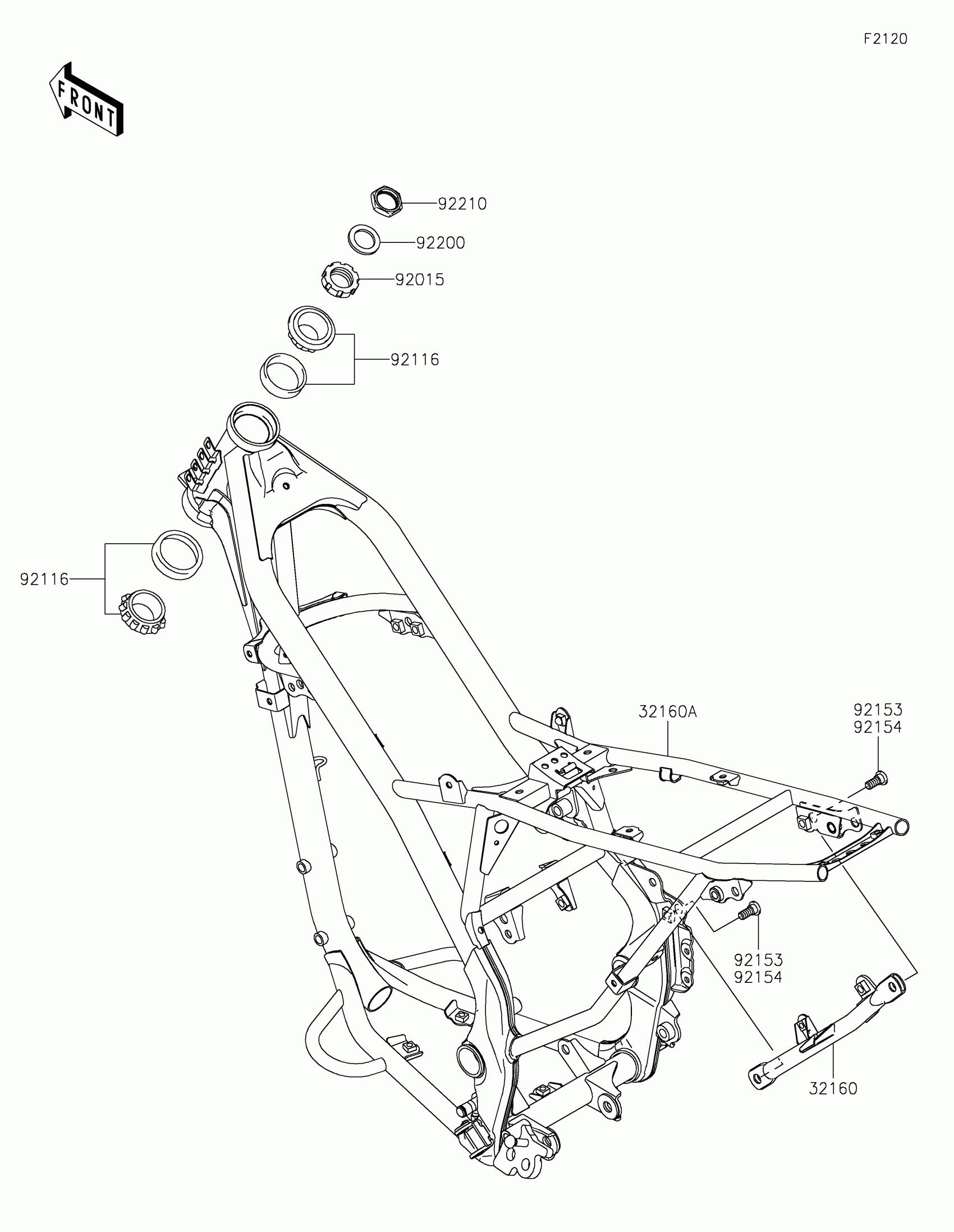

2021 Kawasaki KLX®140R F Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

FRAME-COMP,RR,P.SILVER

32160-0239-458

1

$93.54

In stock

32160A

FRAME-COMP,P.SILVER

32160-0816-458

1

$1,022.29

In stock

92015

1

$20.39

In stock

92116

1

$43.76

In stock

92153

BOLT,SOCKET,8X20

92153-1621

1

$1.81

In stock

92200

WASHER,STEERING STEM

92200-0517

1
Out of stock

92210

NUT,STEERING STEM,22MM

92210-1521

1
Out of stock
← Footrests Frame Fittings →
